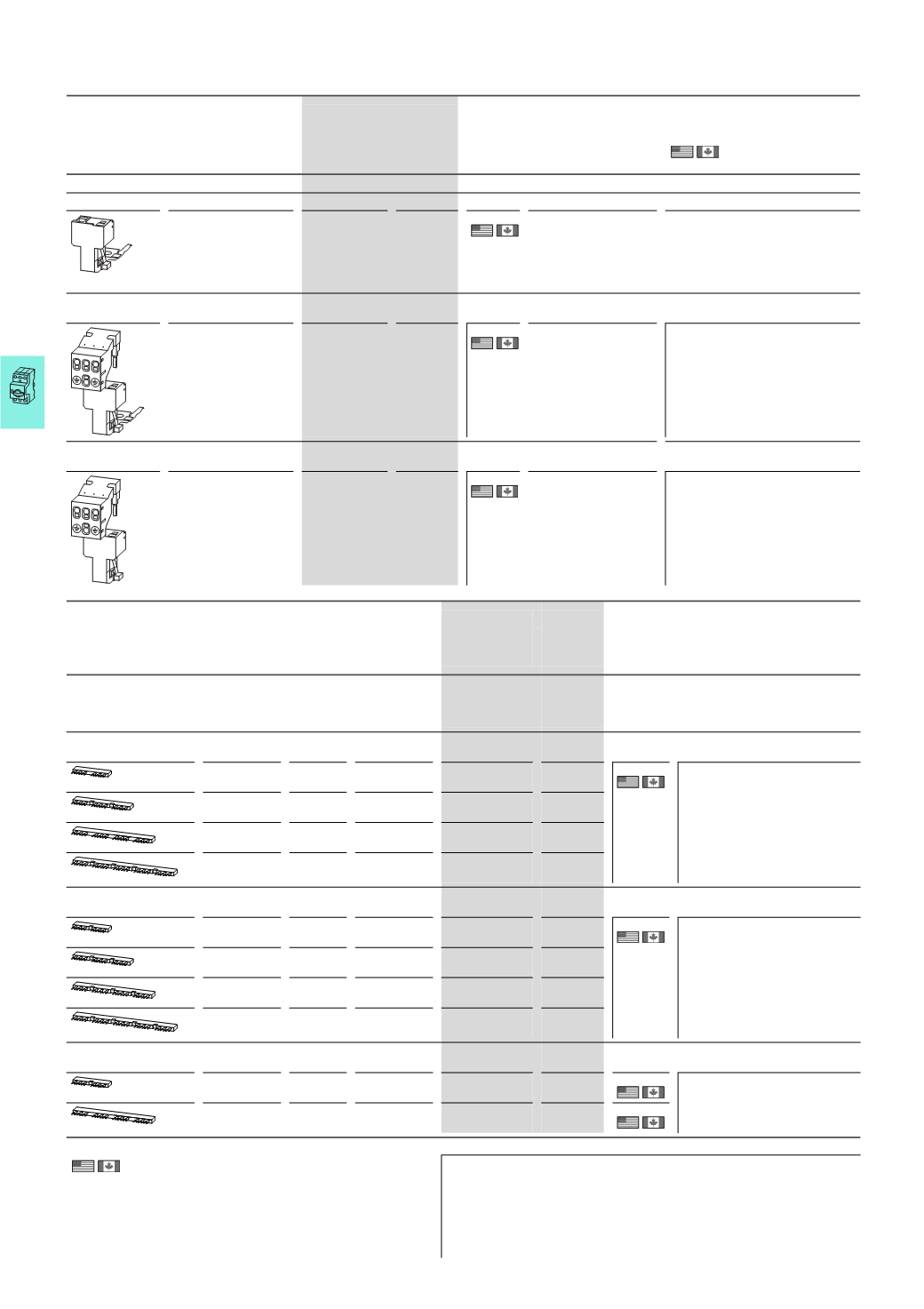

7/26 Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE
Motor feeder plugs, three-phase commoning links
2010 CA08103002Z-EN
Motor feederplugs, three-phasecommoning links
Description For use with Part no.
Article no.
Price
See price
list
Std. pack Notes Information relevant for export to
North America
Motor feeder plug
PE module with contact plate
DILM(C)7
DILM(C)9
DILM(C)12
DILM(C)15
DILM12-XMCE
121764
5 off 35 x 7.5 (15) mm mounting
rail (as per DIN EN 60715)
with PE function required.
For connection of:
PE 0.75 – 4 mm2
Product Standards
UL 508; CSA-C22.2
No. 14; IEC60947-4-1;
CE marking
NA Certification Request filed for UL
and CSA
Motor feeder plug with PE module andcontact
plate
DILM(C)7
DILM(C)9
DILM(C)12
DILM(C)15
DILM12-XMCP/E
121769
1 off 35 x 7.5 (15) mm mounting
rail (as per DIN EN 60715)
with PE function required.
For connection of:
L1, L2, L3, PE 0.75 – 2.5 mm2
Product Standards
IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05; CE marking
NA Certification Request filed for UL
and CSA
Motor feeder plug with PE module without
contact plate
PKZM0/PKE + DILM(C)7
PKZM0/PKE + DILM(C)9
PKZM0/PKE + DILM(C)12
PKZM0/PKE + DILM(C)15
MSC-D(E)-…-M7…
MSC-D(E)-…-M9…
MSC-D(E)-…-M15…
DILM12-XMCP/T
121770
1 off For connection of:
L1, L2, L3, PE 0.75 – 2.5 mm2 Product Standards
IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05; CE marking
NA Certification Request filed for UL
and CSA
Circuit-breakers Length Unit width Part no.
Article no.
Price
See price
list
Std. pack Notes
Number mm mm
Three-phase commoning links, incoming unit via terminals 1, 3, and 5
Finger- and back-of-hand-proof, short-circuit proof, Ue=690 V, Iu=63 A
Can be extended through rotated installation
For PKZM0-... or PKE without side-mounted auxiliary contacts or voltage
releases
2 90 45 B3.0/2-PKZ01)
063961
10 off For parallel feeding of multiple
motor-protective circuit-breakers on
terminals 1, 3, and 5
3 135 45 B3.0/3-PKZ01)
232289
4 180 45 B3.0/4-PKZ01)
063960
5 225 45 B3.0/5-PKZ01)
232290
For motor-protective circuit-breakers with one auxiliary contact or trip-
indicating auxiliary contact each fitted to right side
2 99 45 + 9 B3.1/2-PKZ01)
044945
10 off For parallel feeding of multiple
motor-protective circuit-breakers on
terminals 1, 3, and 5
3 153 45 + 9 B3.1/3-PKZ01)
044946
4 207 45 + 9 B3.1/4-PKZ01)
044947
5 261 45 + 9 B3.1/5-PKZ01)
044948
For PKZM0-... or PKE with one auxiliary contact or trip-indicating auxiliary
contact each fitted to right side, or one voltage release fitted on left side
2 108 45 + 18 B3.2/2-PKZ01)
063963
10 off For parallel feeding of multiple
motor-protective circuit-breakers on
terminals 1, 3, and 5
4 234 45 + 18 B3.2/4-PKZ01)
063959
10 off
Information relevant for export to North America
1)
Product StandardsUL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 98494
CSA Class No. 3211-06
NA Certification UL Listed, CSA certified
B3...PKZO, B3...PKZO-U HPL07026EN
