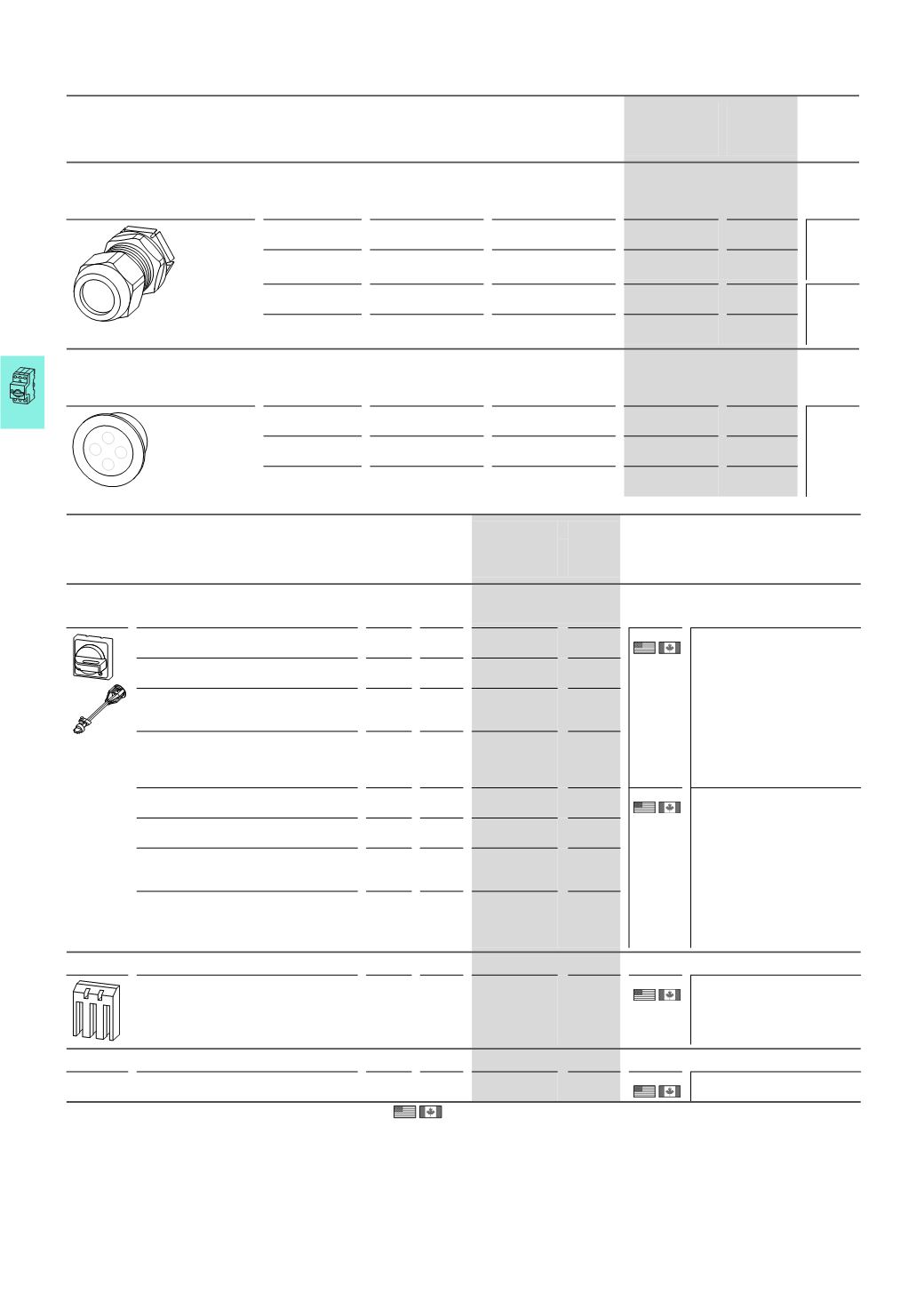

7/20 Motor-protective circuit-breakers PKZM01, PKZM0, PKZM4, PKE
Accessories
2010 CA08103002Z-EN
Accessories
Cable entry Drilling dimensions External cable diameter Part no.
Article no.
Price
See price list
Std. pack
mm mm
Metric cable glands to EN 50262
• With lock nut and built-in strain relief
• IP68 up to 5 bar, halogen free
M20 20.5 6 - 13 V-M20
206910
20 off
M25 25.5 9 - 17 V-M25
206911
M32 32.5 13 - 21 V-M32
206912
10 off
M32 32.5 18 - 25 V-M32G
226156
Metric diaphragm grommets
• IP66
• With integral push-through diaphragm
M20 20.5 1 - 13 KT-M20
207602
100 off
M25 25.5 1 - 18 KT-M25
207603
M32 32.5 1 - 25 KT-M32
207604
For use
with
Part no.
Article no.
Price
See price
list
Std. pack Notes
Door coupling handles
Degree of protection IP65, UL/CS Type 4X / Type12
For use as main switch to IEC/EN 60204 Black PKZM0
PKZM4
PKZ0-XH1)
106132
1 off Pluggable PKZ0-XAH extension
shaft, can be cut to any required
length for installation depths of
100…240 mm.
Follower included in delivery.
With ON/OFF switch position and
“+” (tripped), lockable
With 3 padlocks, 4 – 8 mm hasp.
Cannot be used in combination with
VHI20-PKZ0.
For use as a main switch with emergency
switching off function to EN 60204
Red-
yellow
PKZM0
PKZM4
PKZ0-XRH1)
106133
For use as a main switch to EN 60204 in MCC
power distribution systems and with PKZM0
installed rotated by 90°
Black PKZM0
PKZM4
PKZ0-XH-MCC1)
106136
For use as a main switch with emergency
switching off function to EN 60204 in MCC
power distribution systems and with PKZM0
installed rotated by 90°
Red-
yellow
PKZM0
PKZM4
PKZ0-XRH-MCC1)
106137
For use as main switch to IEC/EN 60204 Black PKE PKE-XH1)
142416
1 off Pluggable PKZ0-XAH extension
shaft, can be cut to any required
length for installation depths of
100…240 mm.
Follower included in delivery.
With ON/OFF switch position and
“+” (tripped), lockable
With 3 padlocks, 4 – 8 mm hasp.
For use as a main switch with emergency
switching off function to EN 60204
Red-
yellow
PKE PKE-XRH1)
142417
For use as a main switch to EN 60204 in MCC
power distribution systems and with PKE
installed rotated by 90°
Black PKE PKE-XH-MCC1)
142418
For use as a main switch with emergency-
switching off function to EN 60204 in MCC
power distribution systems and with PKE
installed rotated by 90°
Red-
yellow
PKE PKE-XRH-MCC1)
142419
Clamp cover
For increasing the degree of protection of the
PKZM4 to IP2X
– PKZM4 HB-PKZ42)
256581
1 off Suitable for connecting cables with
a max. external diameter of 9.5 mm
Pluggable extension shaft
– – – PKZM0
PKZM4
PKZ0-XAH1)
106134
1 off Follower not included
Information relevant for export to North America
1) Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 12528
CSA Class No. 3211-05
NA Certification UL Listed, CSA certified
Degree of Protection IEC: IP65, UL/CSA Type: 4X, 12
2) Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 12528
CSA Class No. 3211-06
NA Certification UL Listed, CSA certified
