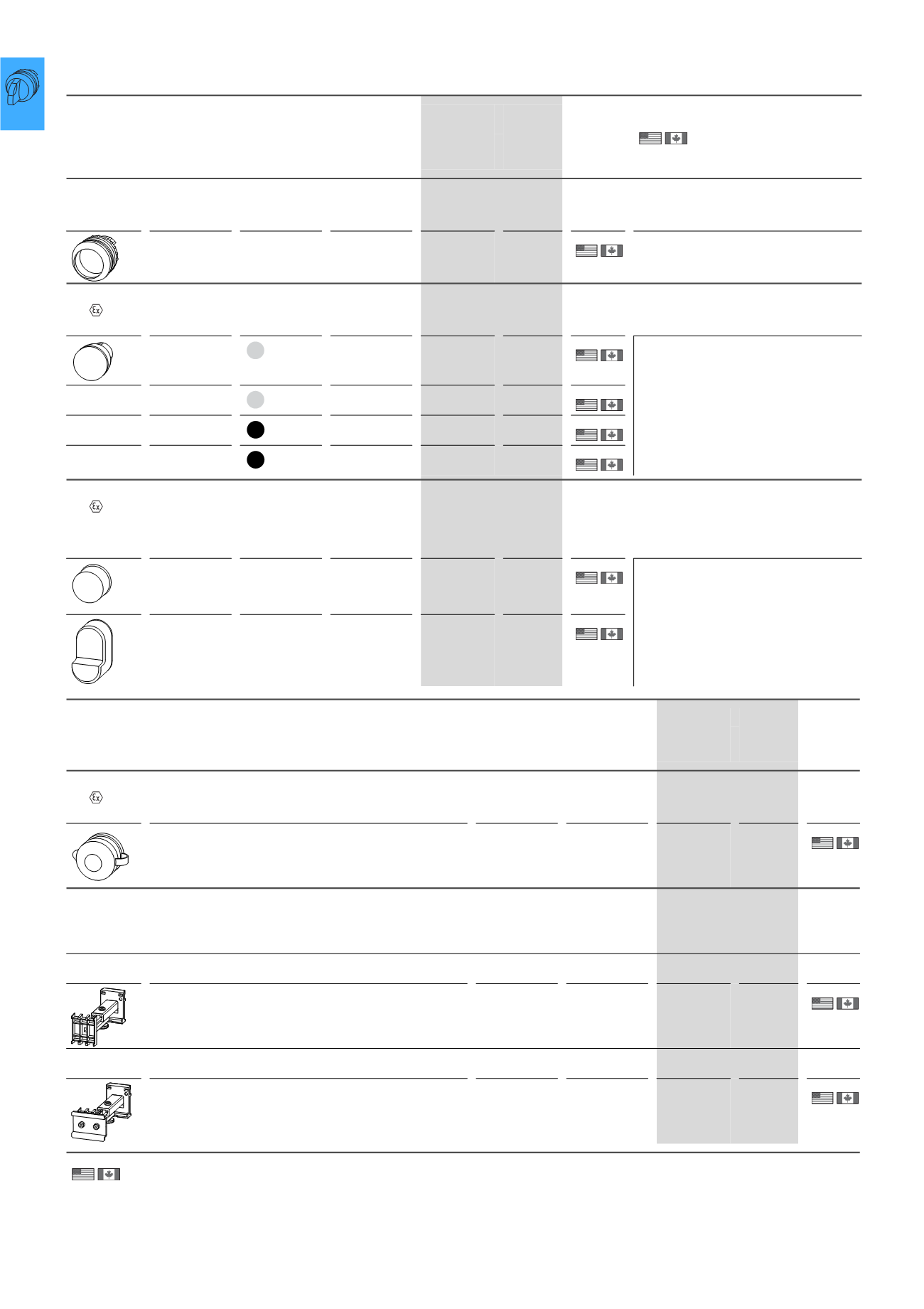

51 / 336
2/48 RMQ-Titan control circuit devices
Accessories
2010 CA08103002Z-EN
www.eaton.comAccessories
For use with
Color
RAL value
Part no.
Article no.
Price
See price
list
Std. pack
Information relevant for export to
North America
Bezel gold (24 karat)
Bezel not available individually: Can be ordered only through Eaton sales
office as M22-COMBINATION-* (customer-specific complete devices)
–
–
–
M22-FR-AU
274150
1 off
UL/CSA certification not required
Blanking plugs
￫Engineering round design, IP67, IP69K
For closing off of spare mounting locations
–
RAL 7035
M22-B
216388
50 off
NA Certification
Request filed for UL and
CSA
Degree of Protection UL/CSA Type 3R, 4X, 12,
13
–
RAL 7035
M22-B-GVP
216389
250 off
–
RAL 9005
M22S-B
216390
50 off
–
RAL 9005
M22S-B-GVP
216391
250 off
Pushbutton diaphragm for IP67, IP69K, silicone
￫Engineering
Transparent diaphragms for severe environmental conditions and use in
the food industry. Do not use with legend plate mount M22S-ST since
degree of protection is not guaranteed
M22(N/O)-D-(R)-...
M22(N/O)-DL-...,
M22(N/O)-DRL-...
M22(N/O)-L(C)-...
–
–
M22-T-D
216395
10 off
NA Certification
Request filed for UL and
CSA
Degree of Protection UL/CSA Type 3R, 4X, 12,
13
M22(N/O)-DDL...
–
–
M22-T-DD
216396
10 off
For use with
Color
RAL value
Part no.
Article no.
Price
See price
list
Std. pack
Protective diaphragm, silicone
￫Engineering
Prevents ingress of dirt and dust into the key opening
M22-WS...
–
–
M22-XWS
231275
5 off
Telescopic clip
For adjusting mounting depth for mounting in enclosures CI and panels with mounting depths from 115 to 155 mm.
Infinitely adjustable, screw- and snap-on mounting (mounting rail IEC/EN 60715) up to 10 × M22-TC per enclosure permissible,
of which 5 with maintained buttons. Do not use in combination with emergency switching-off pushbuttons
Three contact/LED elements with base fixing,
Including centring adapter
–
–
–
M22-TC
216398
10 off
With top-hat rail IEC/EN 60715, width 44 mm
For mounting of EASY, FAZ, PKZ, DIL etc. weighing ≦ 0.3 kg
EASY200, EASY500, EASY700, EASY800, MFD-CP8, EC4P
Infinitely adjustable via scale from 75 to 115 mm
–
–
M22-TA
226161
1 off
Information relevant for export to North America
Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL CCN
NKCR
CSA File No.
012528
CSA Class No.
3211-03
NA Certification
UL Listed, CSA certified
ATEX
ATEX
ATEX
M22
HPL02048EN
