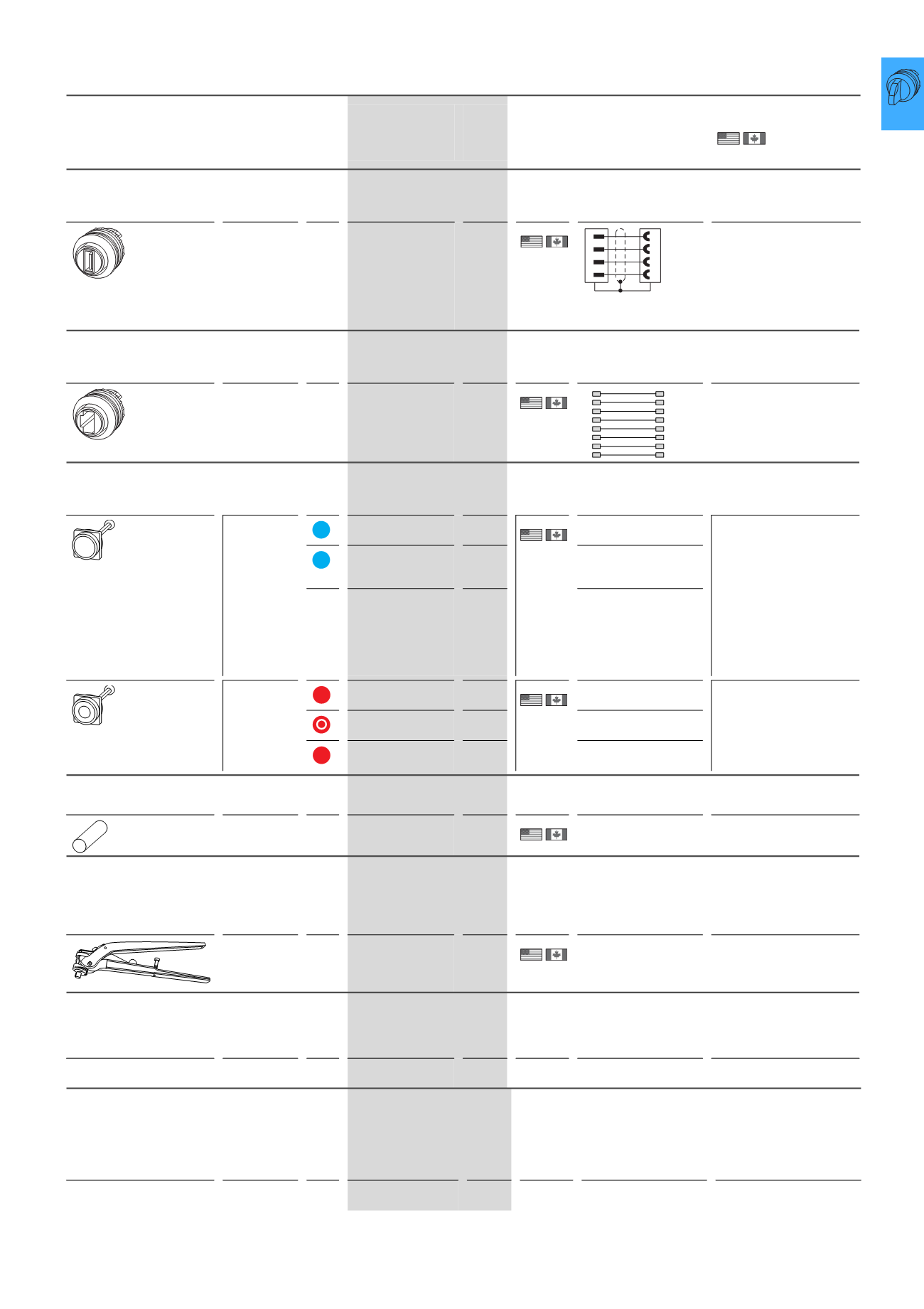

Eaton Industrial Switchgear - xCommand Control & Indication

RMQ-Titan control circuit devices

Accessories

2010 CA08103002Z-EN

www.eaton.com

2/51

Accessories

For use with Color

Part no.

Article no.

Price

See

price list

Std. pack

Notes

Information relevant for export

to North America

Built-in 2.0 A/A USB socket with connection cable

IP65 with closed cover

IP20 with plug connected

Front mounting

prefabricated

cable (60 cm)

with perma-

nently con-

nectedUSB2.0

A type

–

M22-USB-SA

107412

1 off

NA Certification Request

filed for UL

and CSA

Built-in RJ45 socket

IP65 with closed cover

IP20 with plug connected

Front mounting

RJ45, 8/8

–

M22-RJ45-SA

107413

1 off

NA Certification Request

filed for UL

and CSA

Pushbuttons

For enclosed overload relays

Mounting diameter: 22.3 mm

ZW7...

ZB12

ZB32

ZB65

ZB150

M22-DZ-B

254833

10 off

Blue button plate

Product StandardsUL 508;

CSA-C22.2

No. 14;

IEC/EN

60947; CE

marking

UL File No.

E29184

UL CCN

NKCR

CSA File No.

012528

CSA Class No.

3211-03

NA Certification UL Listed,

CSA certified

M22-DZ-B-GB14

254834

Blue button plate

Inscription: RESET

–

M22-DZ-X

254835

Without button plate,

add button plate.

M22-DZ-X

M22(S)-D-X

M22(S)-DR-X

M22-D6-X

M22-XD-R

216423

10 off

Red button plate

UL/CSA certification not

required

M22-XD-R-X0

218153

Red button plate with

white circle

M22-XD-R-GB0

218194

Red button plate

Inscription: STOP

Bulb extractor

With compact indicator light M22-LC(H)…

A22-GL…

A22-LED…

–

M22-LG

216403

5 off

–

UL/CSA certification not

required

Notching tool

Punching tool to produce the cutout for the anti-rotation

lug to IEC/EN 60947-5-1

St 37 sheet steel, max. 3 mm thickness

VA high-grade steel max. 1.5 mm thickness

–

BA/C-NZ-22

028144

1 off

Price not eligible for

discount

UL/CSA certification not

required

ATEX (only in conjunction withM22-COMBINATION-*)

For use in accordance with the ATEX directive in

dust-laden areas, Zone 22, Category 3

￫Engineering

–

M22-ATEX

104380

1 off

–

Customized complete unit

￫Engineering

To order use form FO315

￫Data sheet in Online Catalog

* = Freely selectable customer identification or stock no.;

max. 10 characters.

–

M22-COMBINATION-*

228298

1 off

–

V DC (+5 V)

GND

– Data

+ Data

M22
