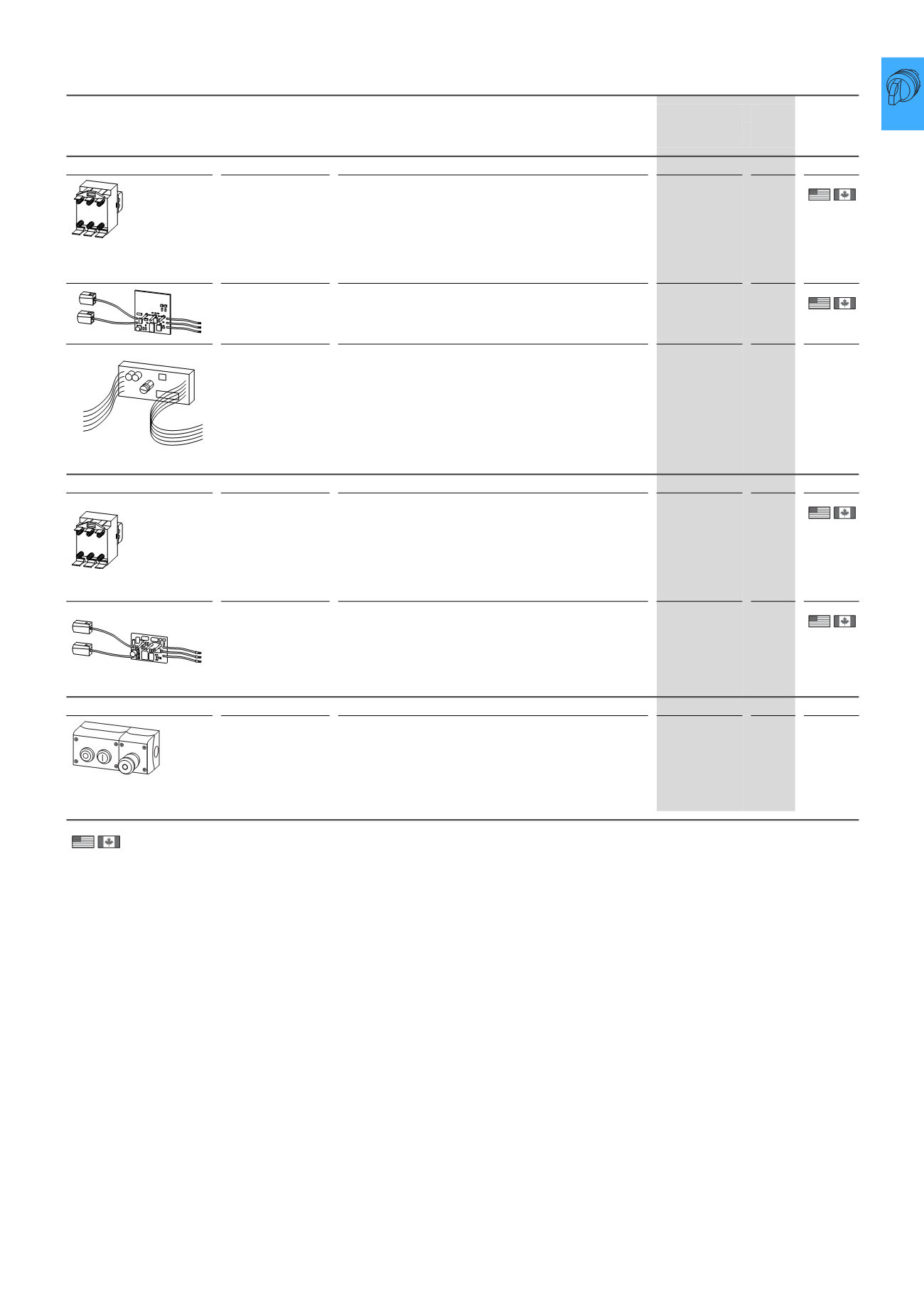

RMQ-Titan control circuit devices
AS-Interface
2010 CA08103002Z-EN
2/47
AS-Interface
Description Part no.
Article no.
Price
See
price list
Std. pack
AS-Interface connection for RMQ-Titan
For front mounting
(RMQ-Titan)
AS-Interface slave
Adapter element for RMQ-Titan
AS-Interface information: 2 input bits, 1 output bit
Module enclosure for snap fitting on the contact and LED elements:
Inputs for 2 contact elements: M22-K01 (normally closed contact),
M22-K10 (normally open contact)
Output for 1 LED element: M22-LED-...
Including AS-Interface connector as insulation piercing terminal
M22-ASI
231269
1 off
for base fixing
(RMQ-Titan)
Adapter element for RMQ-Titan
AS-Interface information: 2 input bits, 1 output bit
Inputs for two contacts
Output for 1 LED element: M22-LED-...
M22-ASI-C
231271
1 off
For surface mounting
enclosures
(RMQ-Titan)
External connections: 4 inputs/4 outputs
For contact and lamp socket elements.
RMQ-Titan surface mounting enclosures: M22-I3, M22-I4, M22-I6
RMQ-M1C-ASI
032314
1 off
Emergency switching off connections for AS-Interface for safety monitor
For front fixing AS-Interface slave
Adapter element for RMQ-Titan
AS-Interface information:
1 dual-channel input, 1 output
Module enclosure for snap fitting on the contact and LED elements:
Inputs for 2 contact elements: M22-K01 (NC)
Output for 1 LED element: M22-LED-...
Including AS-Interface connector as insulation piercing terminal
M22-ASI-S
231270
1 off
For base fixing AS-Interface slave
Adapter element for RMQ-Titan or FAK
AS-Interface information:
1 dual-channel input, 1 output
For the following RMQ-Titan contact and LED elements:
Inputs for 2 contact elements: M22-K01 (NC), M22-K01 (NC)
Output for 1 LED element: M22-LED-...
M22-ASI-CS
231272
1 off
AS-Interface complete unit
M22-I2 and M22-I2Y surface mounting enclosures
M22-PVL emergency-off button actuator and ON-OFF pushbutton
actuator;
ON illuminated
1 × M22‐AS-Interface‐CS and 1 × M22‐AS-Interface‐C
1 x M12A connector
Addressing M22-PVL ￫ 0; ON‐OFF 1 A
M22-I1/2-M1-ASI
107405
1 off
Information relevant for export to North America
Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No. E29184
UL CCN NKCR
CSA File No. 012528
CSA Class No. 3211-03
NA Certification UL Listed, CSA certified
