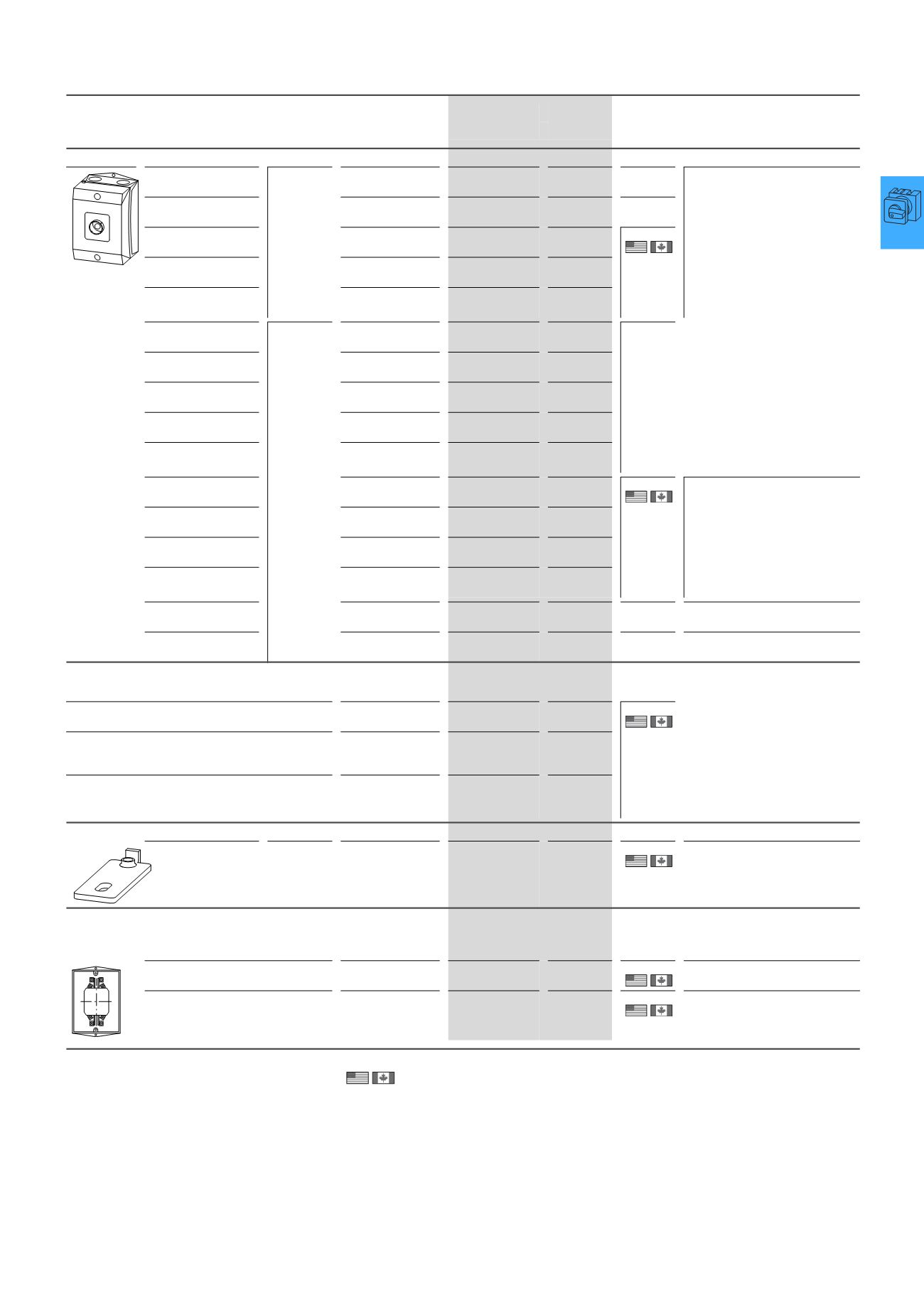

Cam switches, switch-disconnectors
Insulated enclosures, accessories
2010 CA08103002Z-EN
www.eaton.com4/67
Insulatedenclosures,accessories
System overview
For use with
Part no.
Article no.
Price
See price list
Std. pack
Notes
IP65 insulated enclosures
1 - 2 contact units
With push-
through
cable entry
diaphragm.
T0-…/Z
CI-K1-T0-2
207435
1 off
The diaphragm can be pierced with
the cable
Main current/control current:
12 mm/- 16 mm/8 mm
1 contact unit = 2 contacts
3 - 4 contact units
T0-…/Z
CI-K1-T0-4
207436
1 off
1 - 2 contact units
T3-…/Z
CI-K2-T3-2
1)
207437
1 off
3 - 4 contact units
T3-…/Z
CI-K2-T3-4
1)
225325
5 contact units
T3-…/Z
CI-K2-T3-5
1)
207438
1 - 2 contact units
With metric
knockouts
T0-…/Z
CI-K1H-T0-2
105854
1 off
3 - 4 contact units
T0-…/Z
CI-K1H-T0-4
105855
1 - 2 contact units
T3-…/Z
CI-K2H-T3-2
269462
3 - 4 contact units
T3-…/Z
CI-K2H-T3-4
105859
5 contact units
T3-…/Z
CI-K2H-T3-5
105860
1 - 2 contact units
T5B-…/E
CI-K4-T5B-2
207439
1 off
For converting T5-…/Z into T5-…/I5
and T5B-…/E into T5B…/I4:
Order AW-T5-… extension terminal
additionally
1 contact unit = 2 contacts
3 - 4 contact units
T5B-…/Z
CI-K4-T5B-4
207440
1 - 2 contact units
T5-…/Z
CI-K5-T5-2
207441
3 - 4 contact units
T5-…/Z
CI-K5-T5-4
207442
Only available together
with basic unit
T0-…/I1
+I1H
105870
1 off
Only available together
with basic unit
T3-…/I2
P1-…/I2
+I2H
105871
1 off
Neutral terminals
For connection of a 5th conductor
CI-K2-PKZ0-...
K-CI-K1/2
2)
207451
20 off
T5B-…/I4,
Cl-K4-T5B-…
P3-…/I4, CI-K4
K-CI-K4
2)
206916
T5-…/I5,
CI-K5-T5-…
P3-…/I5, CI-K5
K-CI-K5
2)
218488
Set of external fixing brackets
T5B-…/I4,
T5-…/I5,
P3-63/I4,
P3-100/I5
AB-CI-K4/5
2)
206914
1 off
For fixing CI-K4 and CI-K5 directly on
walls.
One set contains 4 brackets.
Set of extension terminals
For retrofitting
for connection inside enclosure
For the bottom contact unit
T5B-…/I4
T5-…/I5
AW-T5-1/2
2
032601
10 off
Already included in equipment
supplied with T5B-…/I4 and T5-…/I5.
For the second contact unit from the
bottom
T5-…/I5
AW-T5-3/4
2
032602
1 off
Already included in equipment
supplied with T5B-…/I4 and T5-…/I5.
Notes
Information relevant for export to North America
1)
Product Standards UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94;
IEC/EN 60947-3; CE marking
UL File No.
E54120
UL CCN
MITW2
CSA File No.
12528
CSA Class No.
3211-07
NA Certification
UL Listed, CSA certified
Degree of Protection IEC: IP65; UL/CSA Type 1, 3R, 4X, 12, 13 – indoor
and outdoor use
2)
UL/CSA certification not required
HPL04067EN
