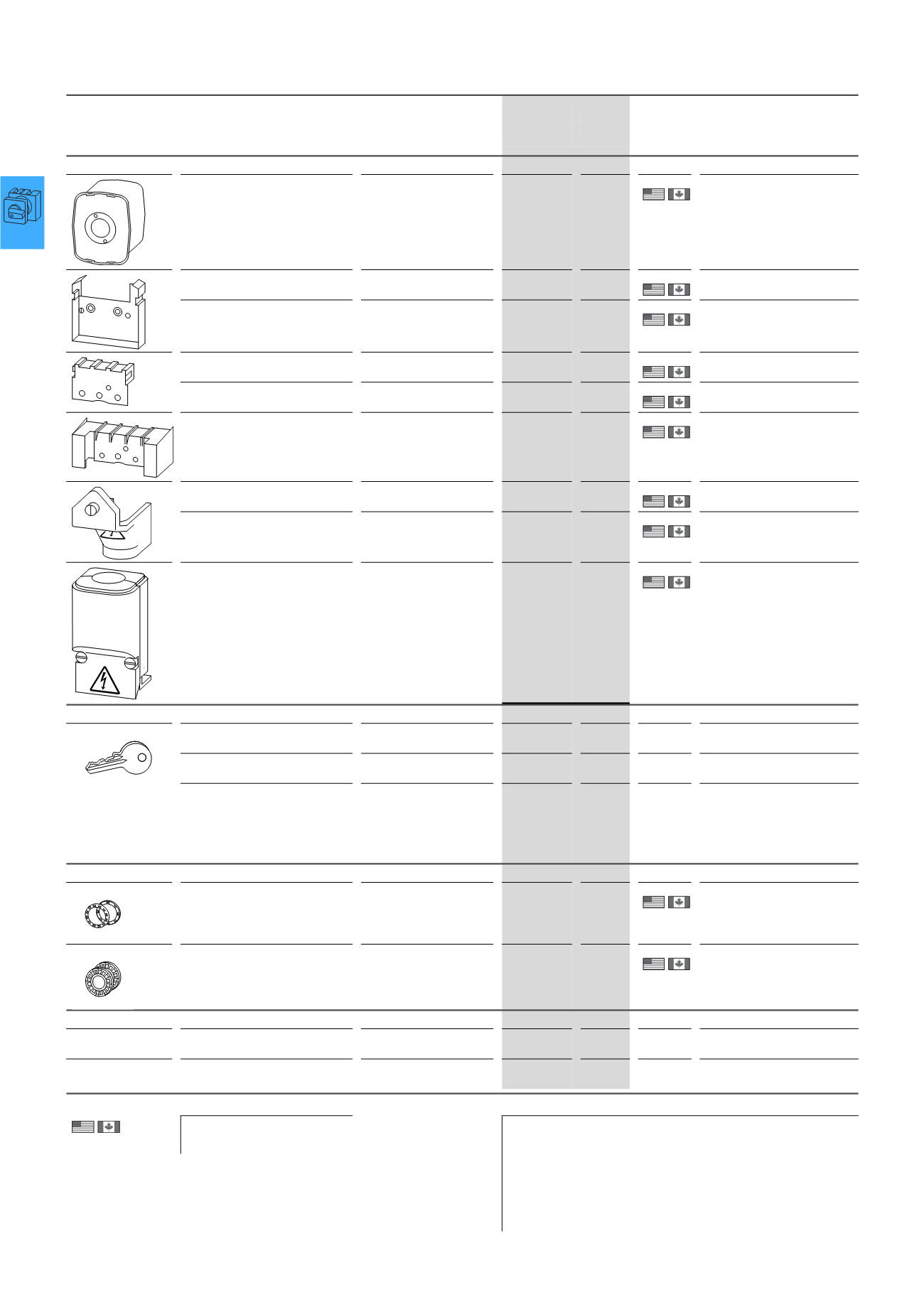

4/66 Cam switches, switch-disconnectors
Shrouds, keys
2010 CA08103002Z-EN
Shrouds, keys
For use with Part no.
Article no.
Price
Seeprice
list
Std. pack Notes
Shrouds1)
For flush mounting switches with up
to 4 contact units
T0-…/E
T3-…/E
H3-T0
093828
1 off Cable entries
Quantity:
2 x ⌀ 20 mm
+ 2 x ⌀ 15 mm
Cross-section:
5 x 6 mm2
5 x 2.5 mm2
For covering the connection
terminals of up to 2 contact units
T5(B)-…/E, …/Z H1-T5
045062
1 off Can be optionally used for input
wiring and/or outgoer
Extension for H1-T5 protective
shroud on 3 - 8 contact units
H1-T5 HZ-T5
045063
10 off One HZ-T5 required per contact
unit
For covering the connection termi-
nals on 3 pole switch-disconnectors
P1-…/E,…/EZ,…/Z,…/EA,
…/V
H-P1
017253
5 off Can be optionally used for input
wiring and/or outgoer
For covering the connection termi-
nals on 4 pole switch-disconnectors
P1-…N, …HI11,
…N…HI11
H-P14
019626
5 off Can be optionally used for input
wiring and/or outgoer
For covering the connection
terminals on 3 pole open switch-
disconnectors with N neutral
conductor and/or HI11 auxiliary
contact
P3-…/E, …/Z, …/EA, …/V
P3-…N, …HI11,
…N…HI11
H-P3
021999
5 off The protective shroud is
designed for mounting on the
switch-disconnector on both
sides; non-required parts can be
broken off.
For covering the terminals P5 H-P5-125/160
293977
1 off
For covering the terminals P5 H-P5-250/315
293978
1 off
Set (6 units) for covering the
connection terminals
T8-3-8342/… H-T8
200184
6 off
Key
For KMS 1 individual lock
mechanism
– ES-KMS1-T0
231972
10 off
For KMS 2 - 10 or KMS 201 - 400
individual lock mechanism
– ES-KMS(*)-T0
231973
1 off
Individual key, stainless, for master
key system and stored individual
lock mechanisms, state lock plan
no. and key.
– HS-SA(*)-T0
256151
1 off Master key must be ordered
additionally.
The security certificate must be
sent when reordering.
Ordering example:
HS-SA(A6294-1.2)-T0
Locking cams (2 cams per set)
For later change of key withdraw-
ability in the engagement positions
S-T0 for all switching
angles
VR-T0
089082
1 off
For changing the blocked positions/
ranges
SVA-T3
SVC-T3
VR-T3
050987
1 off
Mounting plate shield 2)
To connect the
shielding
CI-K2 MBS-I2
290191
1 off
To connect the
shielding
CI-K4 MBS-I4
118742
1 off
Information relevant for export to North America
1) 2)
UL/CSA certification not required Product Standards UL 508; CSA-C22.2 No. 14-05; CSA-C22.2
No. 94; IEC/EN 60947-3; CE marking
UL File No. E36332
UL CCN NLRV
CSA File No. 12528
CSA Class No. 3211-07
NA Certification UL Listed, CSA certified
H... HPL04066EN
