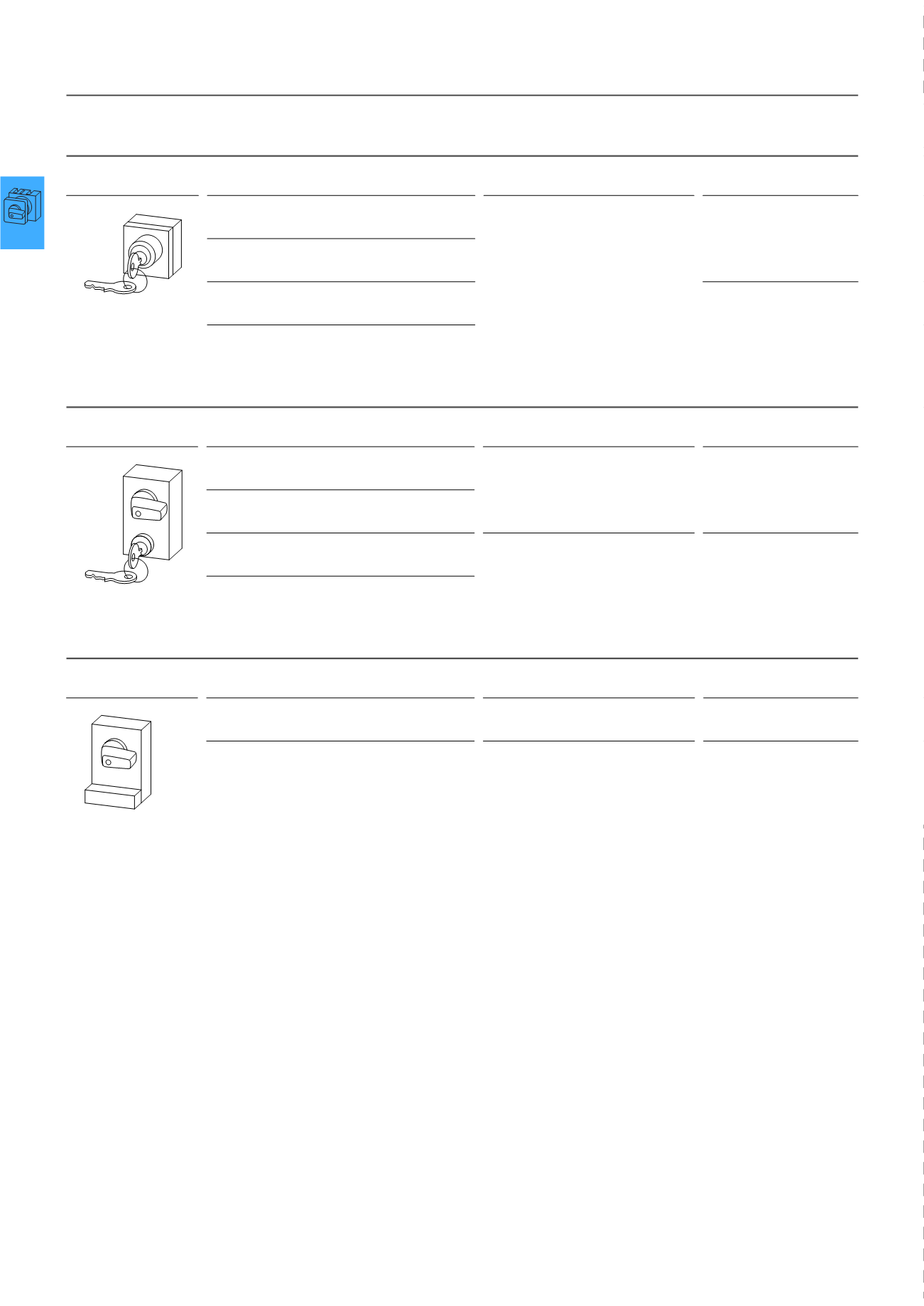

4/62 Cam switches, switch-disconnectors
Key operation, padlocking feature
2010 CA08103002Z-EN
Keyoperation,padlocking feature
For use with Withdrawability
S-T0 key operated lock mechanism, front IP53
With two keys
KMS 1 lock mechanism: individual lock mechanism, not
suitable for master key systems
Key withdrawable in all positions
T0-1.../I1 to T0-4.../I1
T0-1.../E to T0-6.../E
T0-1.../Z to T0-6.../Z
T3-1.../E to T3-5.../E
T3-1.../Z to T3-5.../Z
T3-1.../I2 to T3-4.../I2
P1-.../E
P1-.../I2
P1-.../Z
Withdrawable positions can be
programmed by user
KMS 2-10, KMS 201-400 lock mechanisms: individual lock
mechanisms, not suitable for master key systems
Key withdrawable in all positions
Lock KMS1: Switches with FS908 are possible as main
switch.
Key can be withdrawn in positions as specified
Withdrawable positions
programmed at factory as
ordered
SA(...) = master key system (master-key facility) with
security certificate. Ordering only with lock plan filled out
with the full configuration of the envisaged lock system.
When reordering state item number from the lock plan,
e.g (A 6294-1.2).
Key can be withdrawn in positions as specified
SVA-T3 cylinder lock, front IP65
With two keys
KMS 1 lock mechanism: individual lock mechanism, not
suitable for master key systems
Key withdrawable in all positions
T0-…/E, T0-…/I1, T0-…/Z
T3-…/E, T3-…/I2, T3-…/Z
P1-…/E, P1-…/I2, P1-…/Z
Withdrawable positions can be
programmed by user
KMS 2-10, KMS 201-400 lock mechanisms: individual lock
mechanisms, not suitable for master key systems
Key withdrawable in all positions
Lock KMS1: Switches with FS908 are possible as main
switch.
Key can be withdrawn in positions as specified
T0-1-… to T0-4-…/I1
T0-1-.../E to T0-4-.../E
T3-1-... to T3-5-.../I2
T3-1-... to T3-6-.../E
P1-.../I2, P1-.../E
Withdrawable positions
programmed at factory as
ordered
SA(...) = master key system (master-key facility) with
security certificate. Ordering only with lock plan filled out
with the full configuration of the envisaged lock system.
When reordering state item number from the lock plan,
e.g (A 6294-1.2).
Key can be withdrawn in positions as specified
SVC-T3 padlocking feature, front IP65
The locking slide can be locked with a max. of 3 padlocks when in its pressed, interlocked position
All positions can be locked T0-…/E, T0-…/I1, T0-…/Z
T3-…/E, T3-…/I2, T3-…/Z
P1-…/E, P1-…/I2, P1-…/Z
The positions that can be locked
can be programmed by the user
Specific positions or ranges can be locked Switches with FS908 can be used as main
switches for:
T0-1-... to T0-4-.../I1, .../E
T3-1-... to T3-5-.../I2
T3-1-... to T3-6-.../E
P1-.../I2, P1-.../E
The positions that can be locked
are programmable at the factory
as ordered
S..., SVA..., SVC... HPL04062EN
