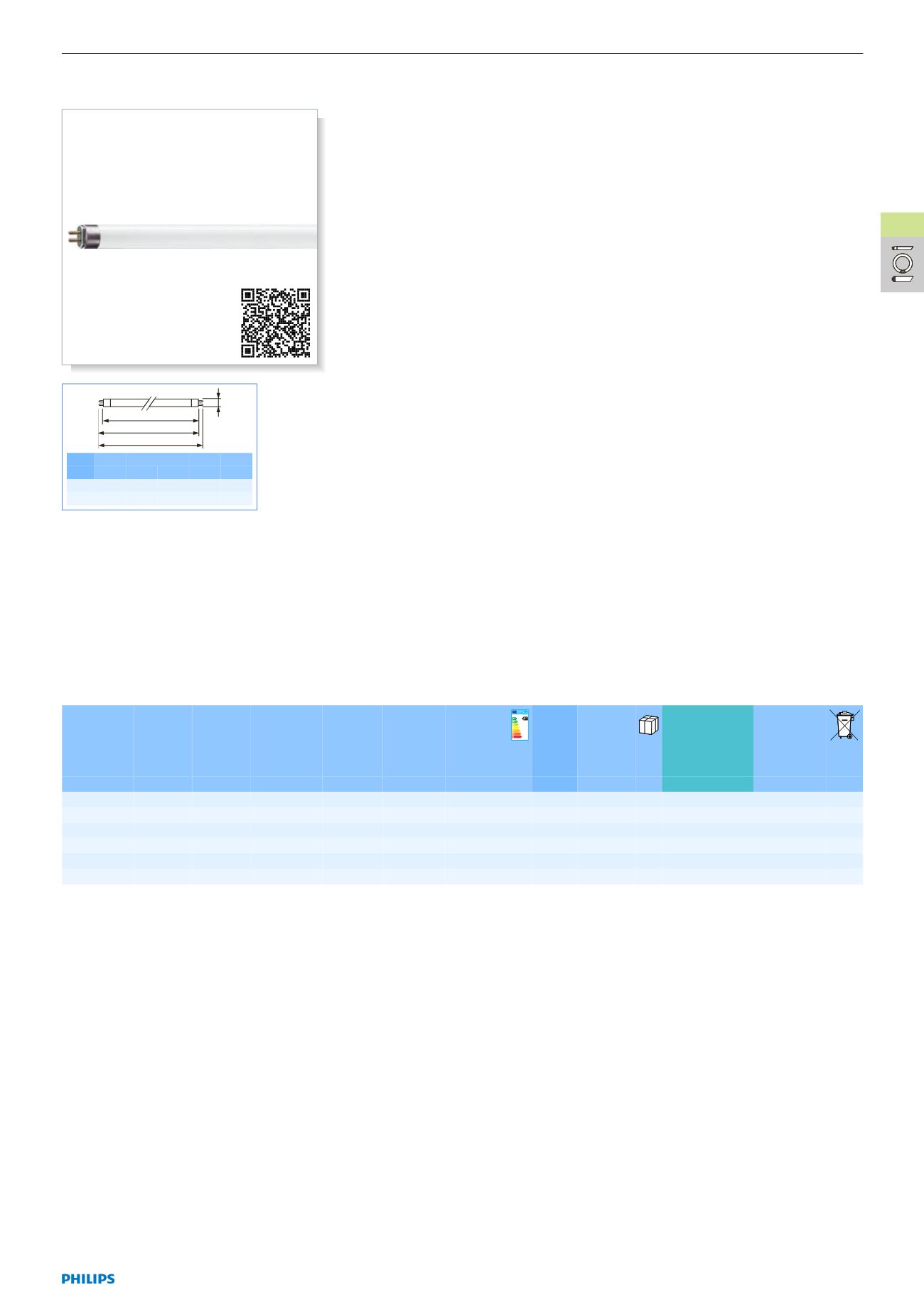

MASTER TL5 High Output Xtra
A
B
C
D
Dim. A B C D
no. max. min. max. max. max.
1 1449 1453.7 1456.1 1463.2 17
2 1149 1153.7 1156.1 1163.2 17
Product Description
•Low-pressure high-output mercury discharge
lamps with a tubular 16 mm envelope
Product Benefits
•Compact lamp with high lumen package
•Longer lifetime and fewer early failures
mean lower maintenance costs and facilitate
change from spot to group replacement
•Less waste and disposal cost at end-of-life
•Allow system miniaturization with maximum
luminaire design freedom
•Optimized for installations which need high
luminous flux
•Excellent lumen maintenance
•Good colour rendering
Product Features
•Significant reduction of early failures through
advanced long life technology
•Extra long lifetime and high reliability
•Designed for high lumen output and system
miniaturization (40% thinner than TL-D
lamps)
•Highly e cient 3-band fluorescent coating in
combination with precoating
•Specifically designed for operation with
electronic gear
•Maximum lumen output reached at approx.
35 °C in free-burning position
•Can be ignited from -15° to +50 °C
•Low mercury dose
•End-cap has an x-shaped green bottom
plate to distinguish the lamp from other
fluorescent lamps
Environment
•Best environmental choice because of
highest energy e ciency for fluorescent
lighting and long reliable life. This leads
to lower CO2 emissions than any other
comparable light source (40% less than TL-D
standard lamp, 26% less than TL-D 800)
and less waste. Products with the ‘Green
Flagship’ logo have the industry’s lowest
mercury content and are 100% lead-free.
Less material, packaging, weight, transport
and recycling volume due to smallest
product dimensions (only 16 mm diameter,
40% less than TL-D lamps)
•This product range is RoHS compliant
•This product range is covered by WEEE
Applications
•Where maintenance costs are high, e. g. high
ceilings or other hard-to-reach locations
•Department stores, supermarkets, ware-
houses, production halls and public areas like
car parks and railway stations
System
•Can be used with TL5 electronic gear
•Longest lifetime is achieved with Philips HF
Xtreme gear
Warnings and Safety
•Philips HF Xtreme gear ensures longest
lifetime.
•To achieve lifetimes as published for 100%
operation, dimming below 30% should not
be applied.
MASTER TL5 HO Xtra G5
Wattage/
Colour
Code
Colour
Rende-
ring
Index
Colour
Tem-
perature
Luminous
Flux EL
25°C, Rated
Lum
E cacy
Rated HF
35°C
Life to
10% fail
Preheat
EL,3h
Life to
50% fail
Preheat
EL,3h
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8711500...
(Ra ) (K) (lm) (lm/W) (h) (h)
49W/830 82 3,000 4,375 98 30,000 45,000 A+ 1 1SL / 20 20 49830XTRATL5 26251605 yes
49W/840 82 4,000 4,375 98 30,000 45,000 A+ 1 1SL / 20 20 49840XTRATL5 26253005 yes
54W/830 82 3,000 4,450 93 30,000 45,000 A+ 2 1SL / 20 20 54830XTRATL5 26323005 yes
54W/840 82 4,000 4,450 93 30,000 45,000 A+ 2 1SL / 20 20 54840XTRATL5 26352005 yes
80W/830 82 3,000 6,400 88 30,000 45,000 A 1 1SL / 20 20 80830XTRATL5 26261505 yes
80W/840 82 4,000 6,400 88 30,000 45,000 A 1 1SL / 20 20 80840XTRATL5 26303205 yes
