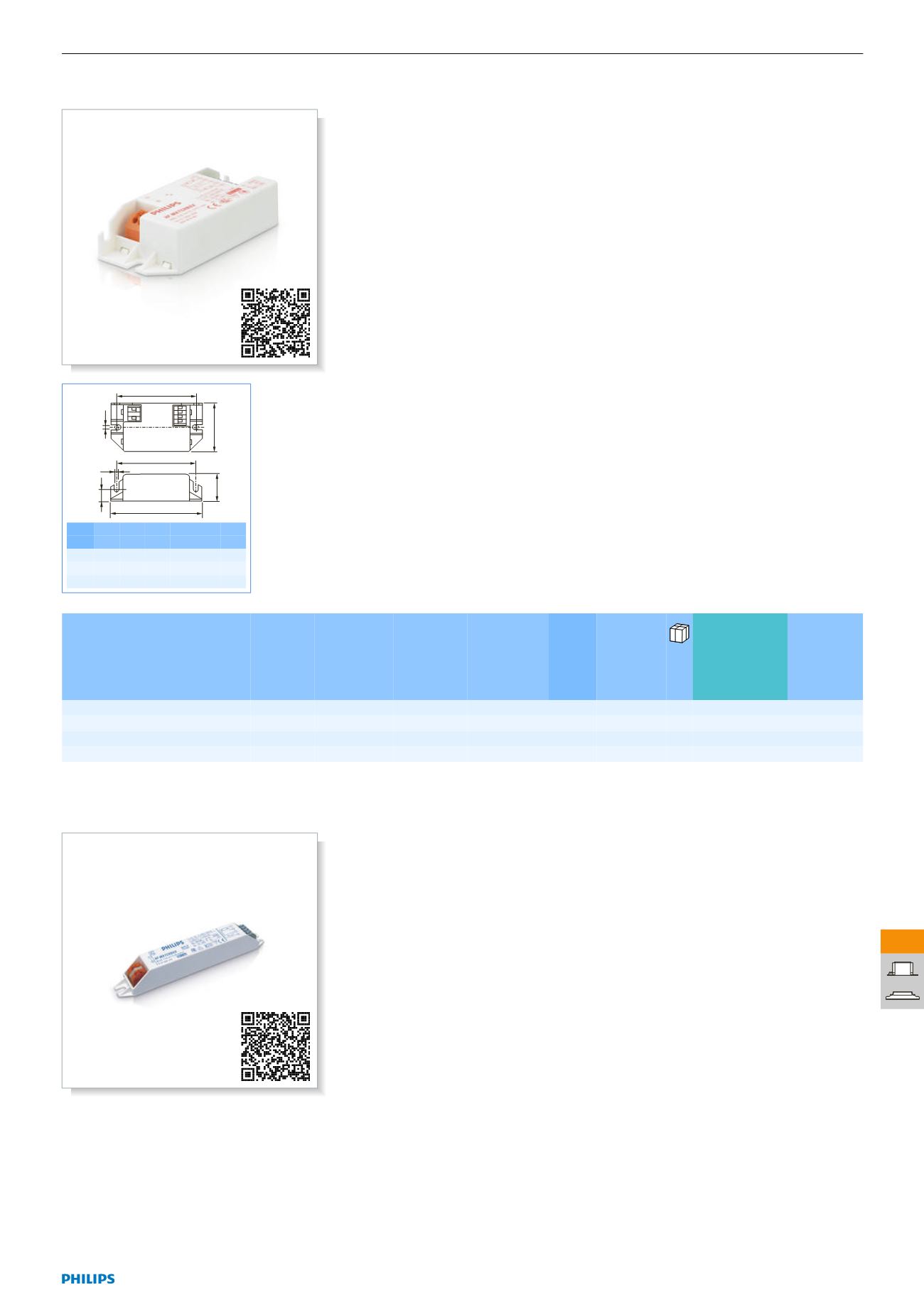

HF-Matchbox Red
A1
A2
A2
B1
C1
D1
D1
C2
Dim. A1 A2 B1 C1 C2 D1
no. nom. nom. nom. nom. nom. nom.
1 80 70 40 22 10 4.4
2 80 70 40 22 10 4.2
3 94 70 40 22 10 4.4
Robust design, compact form
HF-Matchbox Red is an a ordable, reliable,
compact, lightweight and high-frequency
ballast for use with system wattages below
25 W in combination with TL mini, TL-D, TL5
and TL5c, PL-T/C, and PL-L/S lamps.
The HF-M Red range has a robust design,
meets all relevant international safety and
performance standards and has an energy
e ciency index (CELMA EEI) of A2.
Product Benefits
•Can be operated with movement-detection
control systems.
•Automatic restart (after voltage dip or
lamp exchange) ensures easy operation and
hassle-free re-lamping.
•Suitable for use in class I or class II luminaires
Product Features
•Over 60,000 on/o switches on one lamp
(depending on lamp/ballast combination)
•Suitable for emergency DC operation
between 190 and 254 V
•Programmed, flicker-free, pre-heated
start (< 0.8 s) which allows the lamp to be
switched on and o without reducing useful
lamp life
Application
•Used with movement-detection control
systems like Philips OccuPlus
•Mainly for indoor applications such as
spotlights, downlights, light boxes, and
emergency and security fixtures used largely
in retail stores, o ce buildings, hotels,
private homes and residential buildings
•Domestic applications such as outdoor
garden lighting, garage areas, stairways
Type Line
Voltage
Line
Frequency
Max ballast
on
MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8711500...
(V) (Hz) (x) (h)
HF-M RED 1x 9 SH TL/PL-S 230-240 50/60 159 40,000 1 1NO / 50 50 HFMRED109SH 93142930
HF-M RED 1x 14 SH TL/TL5/PL-C/S 230-240 50/60 101 45,000 2 1NO / 50 50 HFMRED114SH 93140530
HF-M RED 1x 18 SH PL-C/PL-T 230-240 50/60 73 40,000 1 UNP / 50 50 HFMRED118SH 92802330
HF-M RED 1x 24 SH TL/TL5/PL-L 230-240 50/60 48 50,000 3 UNP / 50 50 HFMRED124SH 91040030
HF-Matchbox Blue
Robust design, compact form
HF-Matchbox Blue is an a ordable, reliable,
compact, lightweight and high-frequency
ballast for use with system wattages below
25 W in combination with TL mini, TL-D, TL5
and TL5c, PL-T/C, and PL-L/S lamps.
The HF-M Blue range has a robust design,
meets all relevant international safety and
performance standards and has an energy
e ciency index (CELMA EEI) of A2.
Product Benefits
•Automatic restart (after voltage dip or
lamp exchange) ensures easy operation and
hassle-free re-lamping.
•Suitable for use in class I or class II luminaires
Product Features
•Suitable for emergency DC operation
between 190 and 254 V
•Programmed, flicker-free, pre-heated
start (< 0.8 s); over 8,000 on/o switches
on one lamp (depending on lamp/ballast
combination)
•Automatic restart (after voltage dip or
lamp exchange) ensures easy operation and
hassle-free re-lamping.
Applications
•Used with movement-detection control
systems like Philips OccuPlus in applications
where lamps burn for a long period of time
and the switching cycle is infrequent (e. g. a
maximum of three times per day)
•Mainly for indoor applications such as
spotlights, downlights, light boxes, and
emergency and security fixtures used largely
in retail stores, o ce buildings, hotels,
private homes and residential buildings
•Domestic applications such as outdoor
garden lighting, garage areas, stairways
