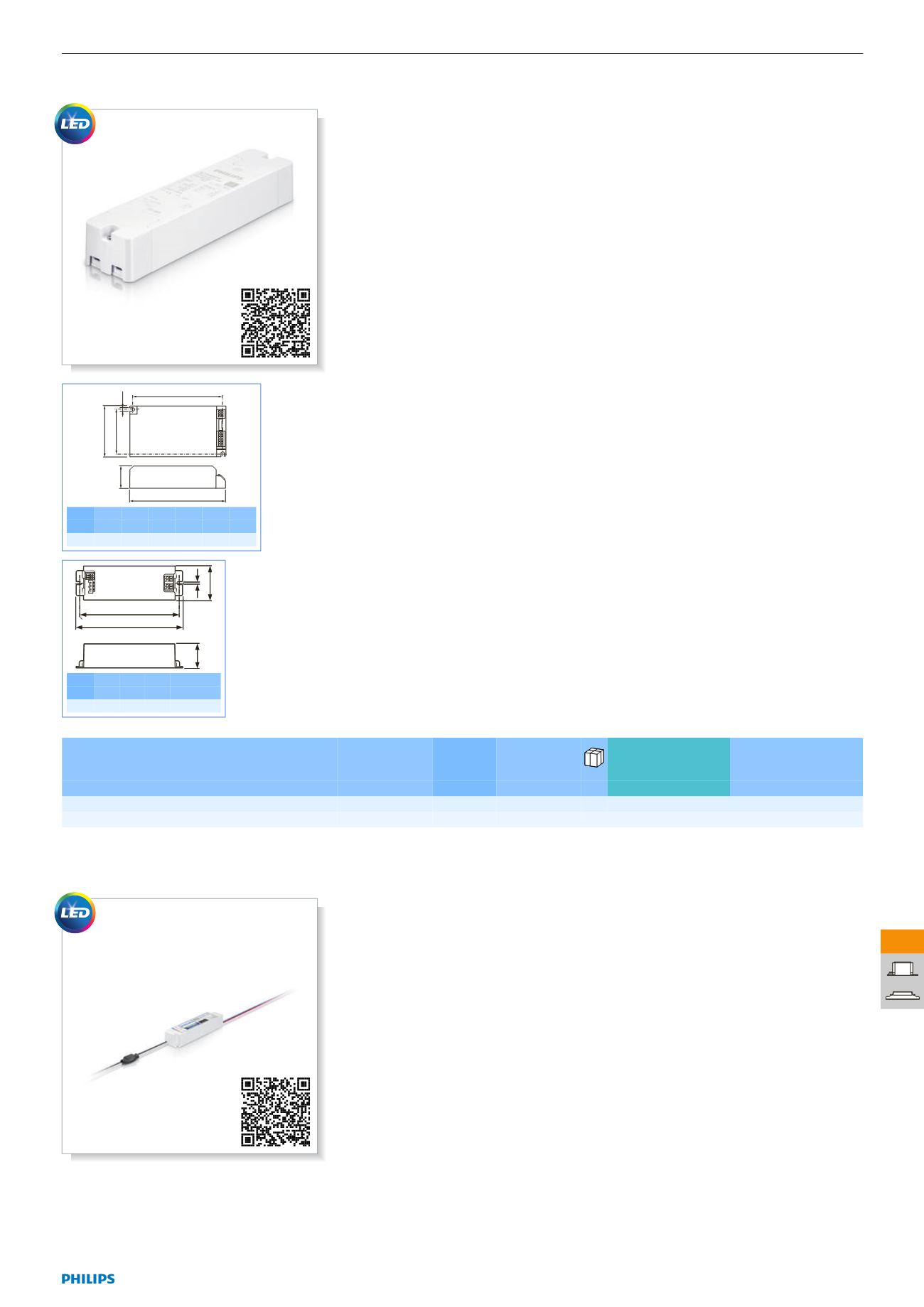

Xitanium/Fortimo LED Drivers Indoor
A2
A1
D1
B1 B2
C1
Dim. A1 A2 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom.
1 138 128.5 74 63.6 32 4.5
C1
B1
D1
A2
A3
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
2 190 154 46 32 4.2
Product Description
•The new Fortimo and Xitanium electronic
LED drivers are specially designed to
operate LED solutions for general lighting
applications.
•There are Xitanium LED driver versions in
17 W / 24 V,25 W / 36 V and 45 W / 80 V
•There are fixed-output and dimmable
(trailing edge and Touch & DALI) versions. .
•The high output voltage (up to 80 V) and
adjustable output current (200 to 700 mA)
enable operation of many LEDs (high light
output) and flexibility in LED fixture design
•The output current can be set by placing a
resistor on your LED PCB (Level 2 board)
•The new housing design incorporates three
di erent mounting options: independent,
screw and click mounting.
•The 25 W and 45 W versions also feature
a 12 V output to operate active cooling or
decorative LED light e ects.
•The Xitanium LED driver 45 W/80 V
is available in fixed-output version in an
independent housing.
Product Benefits
•One driver can be used for various
LED PCB solutions from di erent LED
manufacturers
•Enables use of lighting controls to increase
energy savings
•Guarantees product specifications, incl.
lifetime
•Design freedom: enables smaller luminaire
designs
•Savings on logistics:
-One SKU for three di erent product
variants
-Flexibility when volumes are still small
•LED engine can be changed while driver is
connected to mains (hot wiring)
•Increased lifetime for LED engine (ripple
current)
Product Features
•Adjustable output current from 200 / 300 to
700 / 1,000 mA
•Versions with trailing edge and Touch &
DALI dimming protocols
•Temperature derating via NTC (negative
thermal coe cient)
•25 W dimmable and 45 W fixed output with
12 V output for active cooling
•New flexible housing design
•Hot wiring (Xitanium types)
•Improved ripple current
Applications
•O ces (representative areas such as
reception areas, boardrooms, restaurants,
etc.)
•Public buildings (airports, cinemas, theaters,
exhibition halls)
•High-end shops
•Retail (supermarkets, bakery/butcher’s
shops, leather goods, etc.)
System
Recommended dimmer list for trailing edge
dimming types:
•Busch-Jaeger: 6513U-102
•Jung–licht management: 225T DE
Type Input Voltage
Range (AC)
Input Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
(V) (Hz)
Fortimo LED driver 1100-3000 220-240 50/60 1 UNP / 6 6 DLM1100-3000FO 8727900920857 00
Xitanium 25W LH 0.3-1A 36V I 230V 220-240 50/60 2 1NO / 10 10 8718291668084 00
Xitanium Constant Current Outdoor
Optimal choice for low voltage
Long-lasting and low maintenance, LED-based
light sources are an excellent solution
for outdoor environments. For optimal
performance, LED luminaires require reliable
drivers which match the long lifetime of the
LEDs.
Xitanium Constant Current Outdoor product
family o ers a selection of LED drivers
with lower output voltages in a range of
convenient form-factors and wattages. The
Xitanium Outdoor drivers are SELV (Safety
Extra Low Voltage) compliant, enabling easy
LED light engine design.
Product Benefits
•SELV operating voltages ensure safety even if
wiring or LED boards become damaged
•Excellent reliability
•Wide range of form-factors and wattages to
match all application needs
Product Features
•Portfolio includes wide choice of output
current
•Robust protection against moisture and
vibration
•Minimum 50,000 h lifetime
Applications
•Signage applications - channel letter and
contour lighting
•Architectural lighting
•Emergency and security lighting
