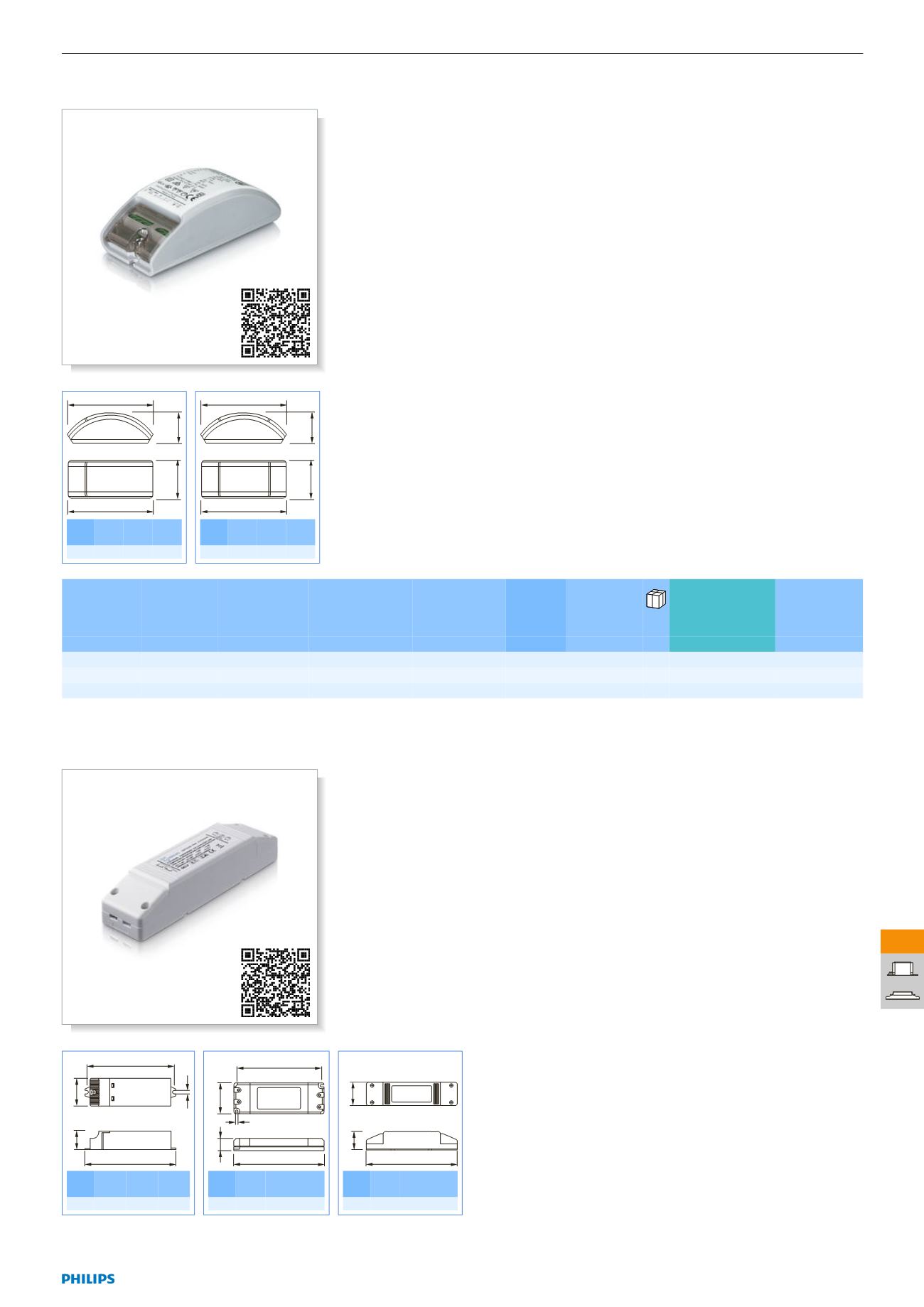

Primaline Halogen Transformers
Product Description
•High-Frequency electronic transformer for
operation with 12 V halogen lamps, available
in 70 W, 105 W and 150 W versions
Product Benefits
•Low power losses, resulting in increased
energy saving
•Constant light output in the case of under-
voltage and a full service life in the case of
over-voltage
•ENEC, SELV, CE and EMC-compliant
Product Features
•Very compact and lightweight design; fits in
small downlight halogen applications
•Three levels of protection: over-voltage,
over-temperature and short circuit
•Long lifetime: 50,000 hours
•Dimming possible with Philips-approved
Leading and Trailing Edge dimmers
•Possible to connect two lamps for 70 and
105 W, and three lamps for 150 W
Application
•Indoor residential use including living rooms
and decorative and accent lighting
•Professional applications including retail,
o ces, conference rooms and exhibitions
Warnings and Safety
•Transformer is not suitable for DC
operation
A1
C1
B1
A2
Dim. A1 B1 C1
no. nom. nom. nom.
1 110 45 33
A1
C1
B1
A2
Dim. A1 B1 C1
no. nom. nom. nom.
2 145 51 33
Type Line Voltage Line Frequency Rated
Ballast-Lamp
Power
Lifetime 90%
surv. @Tcaselife
Dim. no. Packing
type/Packing
configu-
ration
National Order
Code
Ordering
number
8711500...
(V) (Hz) (W) (h)
Primaline 70 230-240 50/60 35-70 50,000 1 1CT / 50 50 PRIMALINE 70 91266430
Primaline 105 230-240 50/60 50-105 50,000 1 1CT / 50 50 PRIMALINE 105 91268830
Primaline 150 230-240 50/60 70-150 50,000 2 1CT / 50 50 PLINEHAL150 91270130
Certaline Halogen Transformers
Product Description
•Electronic halogen transformer for low
voltage halogen lamps the range include Cer-
taline 60 W 230-240 V and Certaline105W
230-240 V
Product Benefits
•Suitable for independent operation thanks to
robust strain-relief
•VDE, SELV, CE and EMC-compliant
Product Features
•Extremely compact dimensions for the
60 W model
•Three levels of protection: over-voltage,
over-temperature and short circuit
•Long lifetime: 20,000 hours
•Dimming possible with Philips-approved
Trailing Edge dimmers
•Possible to connect two lamps for 105 W,
and three lamps for 150 W
Application
•Indoor residential use including living rooms
and decorative and accent lighting
•Professional applications including retail,
o ces, conference rooms and exhibitions
Warnings and Safety
•Transformer is not suitable for DC
operation
D1
A2
B1
A1
C1
Dim. A1 B1 C1
no. nom. nom. nom.
1 107 32 22
A2
B1
A1
C1
D1
Dim. A1 B1 C1
no. nom. nom. nom.
2 146 50 19.5
B1
A1
C1
Dim. A1 B1 C1
no. nom. nom. nom.
3 180 46 36
