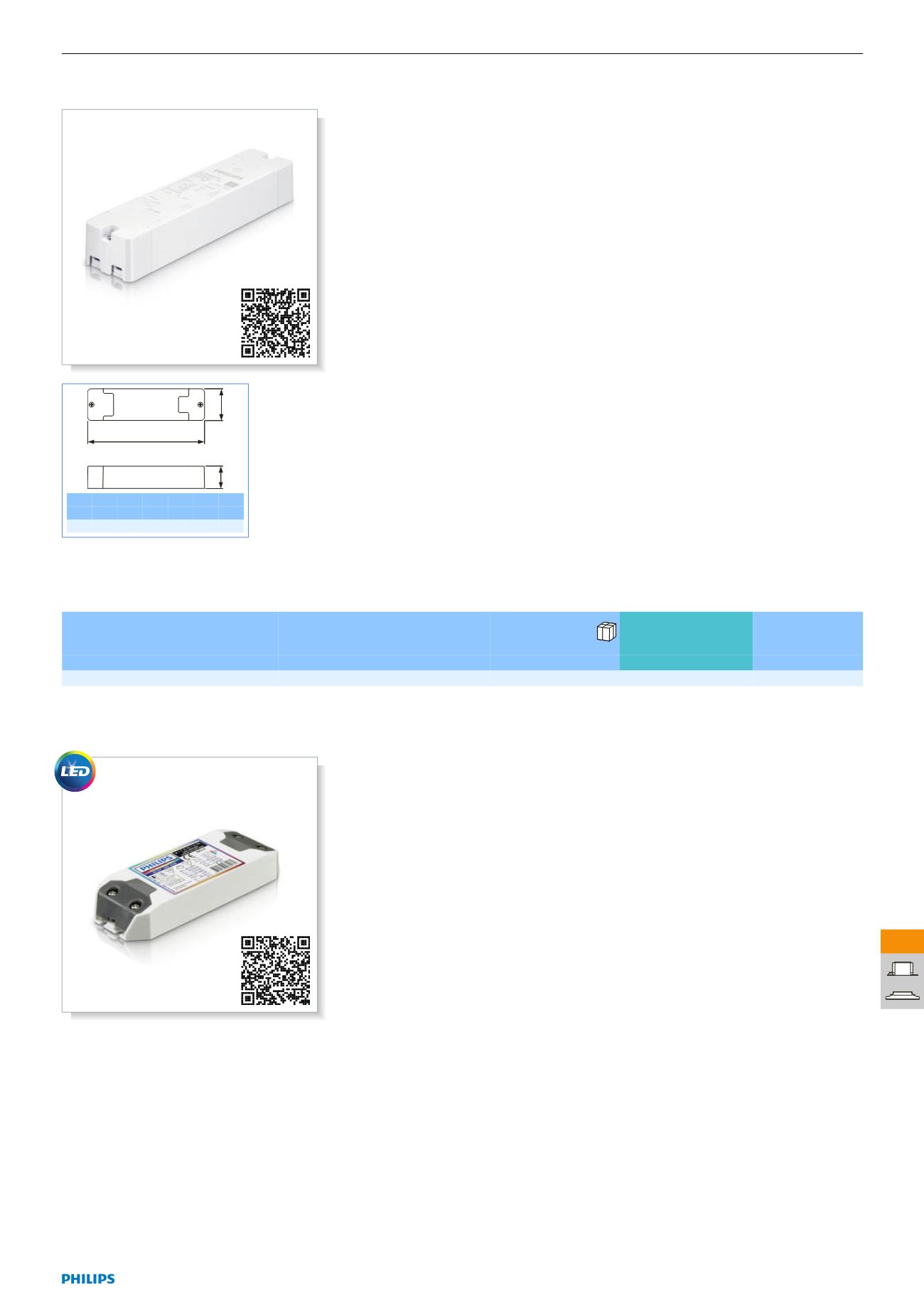

Xitanium/Fortimo LED Drivers indoor dimmable
B1
A1
C1
A1 A2 A3 A4 B1 C1 D1
nom. nom. nom. nom. nom. nom. nom.
190 154 165 148 46 32 4.2
Product Description
Xitanium and Fortimo LED drivers are
specially designed to operate LED solutions
for general lighting applications such as
downlighting, spot/accent lighting and linear
lighting.
Flexibility in luminaire design is assured thanks
to an adjustable output current (AOC) and, in
most independent versions, a new modern
3-in-1 housing design.
The adjustable output current enables
operation of various LED configurations
from di erent LED manufacturers, as well as
ensuring the solution can accommodate new
LED generations – making it “future-proof ”.
There are special dimmable versions which
enable the use of lighting controls for further
energy savings.
Product Benefits
•Highly e cient LED drivers
•Adjustable output current (AOC)
•New “TD” version o ers dynamic active
cooling (via PWM protocol), optimizing
energy e ciency
Product Features
•The output current can be set by placing a
resistor on your LED PCB (Level 2 board)
•Versions with trailing edge (TE) and Touch &
DALI dimming protocols
•Temperature derating via negative thermal
coe cient (NTC)
•Most LED drivers integrate 12 V output for
active cooling
•New flexible housing design o ering
independent, screw and click mounting
•Hot wiring (Xitanium types)
•Improved ripple current
Application
•O ces (more ‘prestigious’ spaces such as
reception areas, boardrooms, restaurants,
etc.)
•Public buildings (airports, cinemas, theaters,
exhibition halls)
•High-end shops
•Retail (supermarkets, bakery/butcher’s
shops, leather goods, etc.)
System
Recommended dimmer list for trailing edge
(TE) dimming types:
•Busch-Jaeger: 6513U-102
•Jung–licht management: 225T DE
•Siemens 5TC8 284
•PEHA Tronic-Dimmer 433 HAB
•Wuyun W13-C 162
•Everflourish EFE700D
Type Input Voltage
Range (AC)
Input Frequency Packing type/
Packing
configuration
National Order Code Ordering number
8727900...
(V) (Hz)
Xitanium 17W 0.3-0.7A 24V TE/I 230V 220-240 50/60 1NO / 10 10 XTM17W24VTEI 907292 00
Xitanium LED Driver Indoor Dimmable
Product Description
•LED driver indoor 10 W dimmable is a
dedicated driver to deliver power to 3
pcs of 700 mA LEDs in series, suitable for
nominal 220 V to 240 V, 50 Hz and 60 Hz
mains supply. The driver is to be mounted
inside or outside luminaires for indoor use
and class II applications. The output must be
connected to the 3 LEDs in series
•LED driver indoor 30 W dim is a dedicated
driver to deliver power to 6 ~ 12 pcs
of 700 mA LEDs in series, suitable for
nominal 220 V to 240 V, 50 Hz and 60 Hz
mains supply. The driver is to be mounted
inside luminaires for indoor use and class II
applications. The output must be connected
to the 6 ~ 12 LEDs in series
•Both drivers convert AC mains to constant
current output by an AC/DC transition.
Users can connect a trailing edge dimmer at
the input side to dim the LEDs’ light output
Product Benefits
•Excellent dimming performance - no
dimming steps visible
•No humming, no flickering
•Independent thanks to its cable strain relief
clamp (for 10w only)
Product Features
•Unique LED drivers dimmable on the mains
(in combination with trailing edge dimmers)
•High Power Factor, low THD
•Short circuit protection and open circuit
protection
•Can dim down to 20% or even
less(depending on the dimmer)
•SELV
Application
•Philips LED indoor dimming drivers are
designed for the market’s wide variety of
applications, such as controlling light e ect
on Spot lighting or Decorative lighting
•Indoor Spot and Decorative light applic-
ations include Dinning, Reading, Living,
Restaurant, Shops, Stage and Museum…
