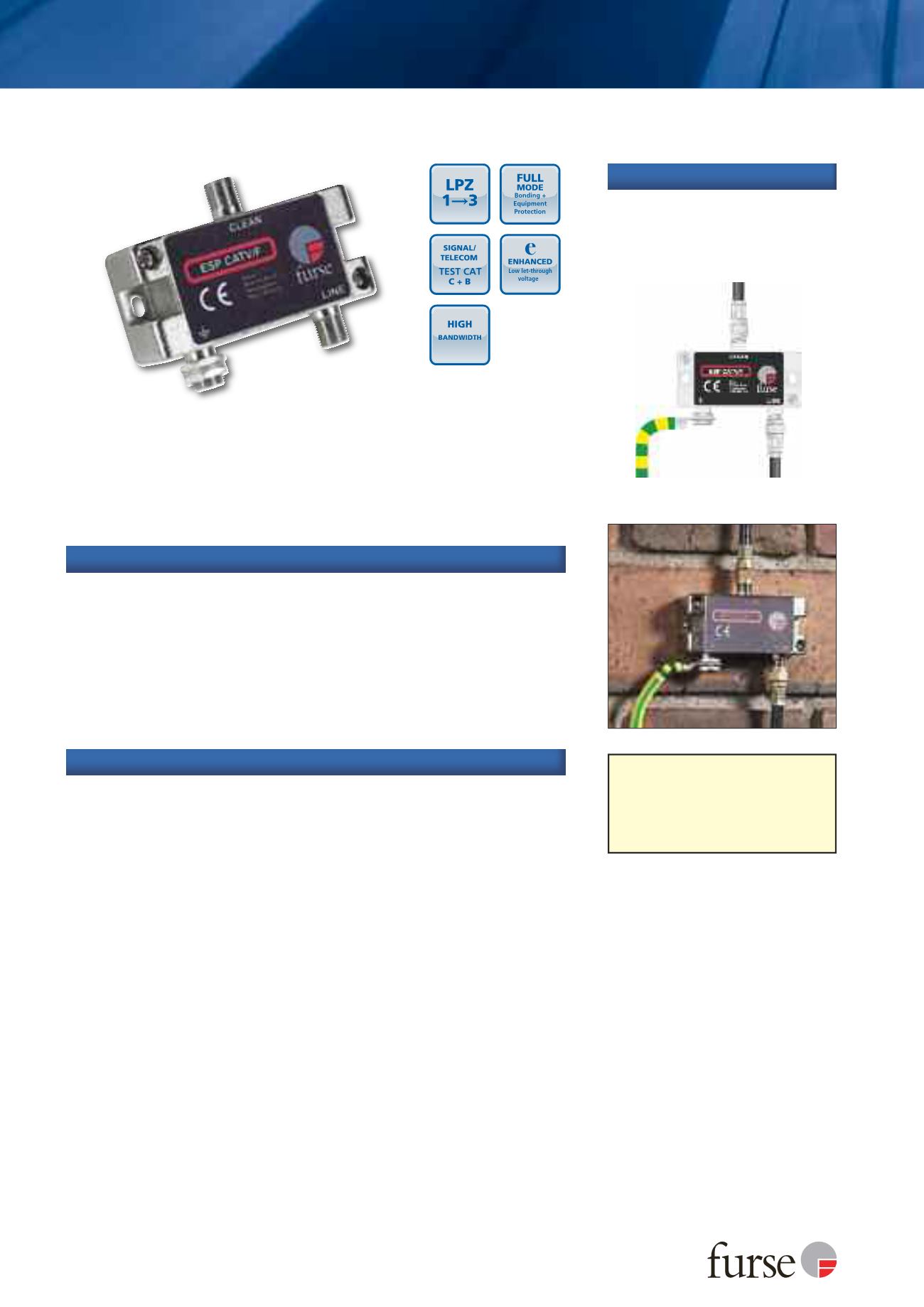

ESP TV Series
DIRTY
CLEAN
From
line
To
equipment
Earth
Protectors for coaxial (or twisted pair)
CCTV Lines are available. For coaxial RF
lines, use the ESP RF Series. Transients
can also be conduced into TV systems
via the mains power supplies - use
suitable ESP mains protection.
Very low let-through voltage (enhanced protection to BS EN 62305)
between all lines - Full Mode protection
Low attenuation and high return loss over a wide range of frequencies
ensures the protectors do not impair system performance
Substantial earth termination
Supplied ready for flat mounting
Strong metal housing
Features and benefits
Combined Category C, B tested protector (to BS EN 61643) suitable to
protect Cable, Terrestrial and Satellite TV systems. For use on lines
running within buildings at boundaries up to LPZ 1 to through to
LPZ 3 to protect sensitive electronic equipment.
Connect in series with the coaxial
cable either near where it enters
or leaves each building or close to
equipment being protected.
Installation
Use to protect analogue and digital Cable, Terrestrial and Satellite TV
installations. ESP CATV/F, ESP MATV/F, ESP SMATV/F and ESP TV/F are suitable
for systems using F connectors. ESP TV/EURO is suitable for systems using
EURO-TV connectors.
For protecting terrestrial antenna feeds use ESP TV/F or ESP TV/EURO
For protecting satellite feeds use ESP SMATV/F
For protecting distributed combined TV feeds use ESP MATV/F
For protecting cable TV feeds use ESP CATV/F
For further information on TV applications, see separate Application Note
AN006 (contact us for a copy).
Application
