Adaptaflex Product Catalogue |
LIT211GB 0715
2/7
2

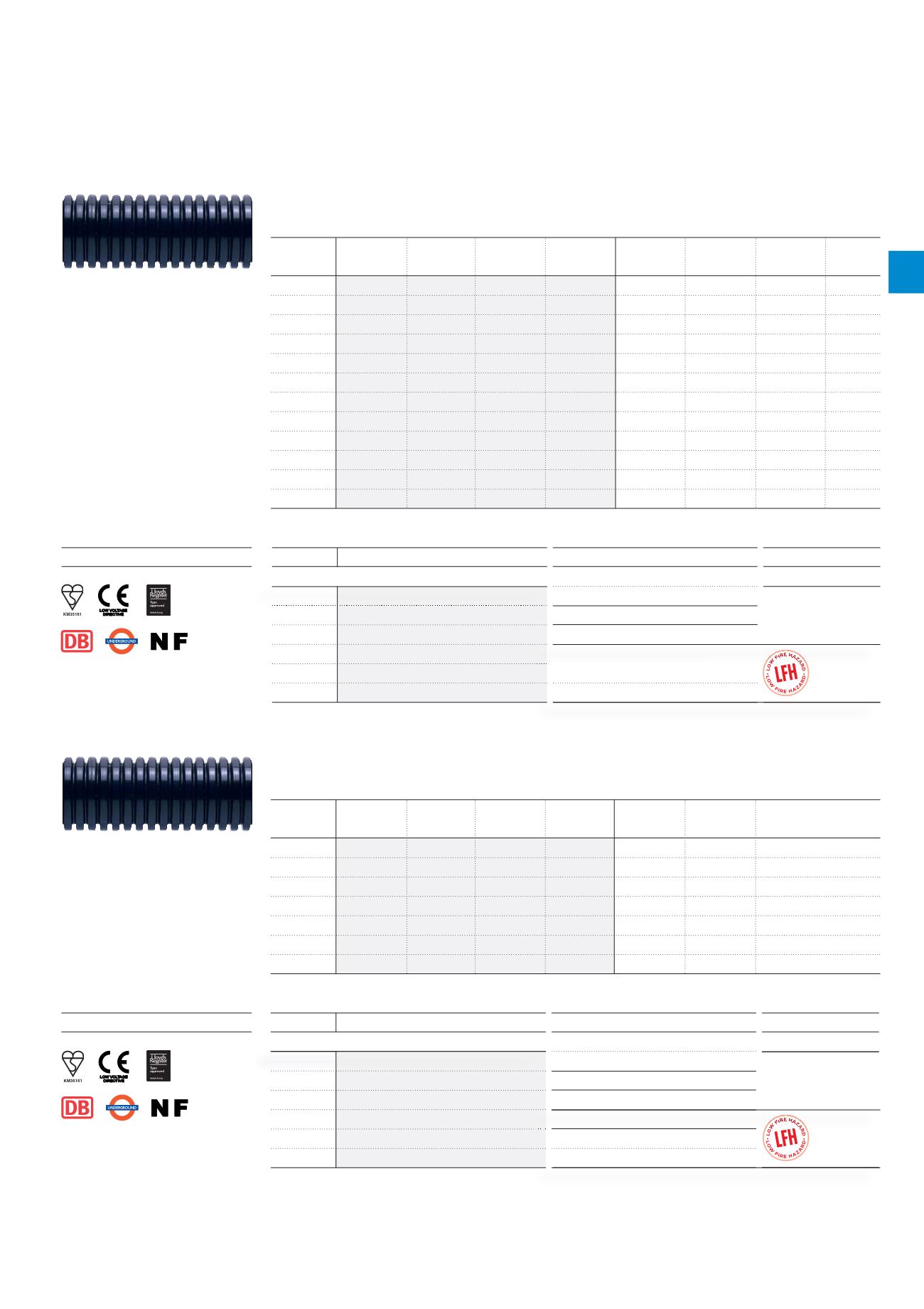

Non-metallic conduit systems
Type PA
Type PA
Standard Weight Conduit
/
Materials:
Polyamide (Nylon) 6 /
Colour:
Black (BL), Grey (GR)
Nominal
NW
Conduit
Outside
Inside
Min. Bend
Reel Length
Part No.
Conduit Size Conduit Size Pitch
Diameter
Diameter
Radius
(BL)
(GR)
PAFS10
10mm
7.5
Fine
10.0mm
6.5mm
15mm
50m
50m
PAFS13
13mm
10
Fine
13.0mm
9.6mm
25mm
50m
50m
PAFS16
16mm
13
Fine
15.8mm
11.8mm
35mm
10/25/50m
50m
PAFS21
21mm
17
Fine
21.2mm
16.5mm
45mm
10/25/50m
50m
PAFS28
28mm
23
Fine
28.5mm
22.6mm
50mm
10/25/50m
50m
PACS28
28mm
23
Coarse
28.5mm
21.7mm
50mm
10/25/50m
50m
PAFS34
34mm
29
Fine
34.5mm
28.8mm
60mm
10/25/50m
50m
PACS34
34mm
29
Coarse
34.5mm
27.7mm
60mm
10/25/50m
50m
PACS42
42mm
36
Coarse
42.5mm
35.2mm
65mm
10/25m
25m
PACS54
54mm
48
Coarse
54.5mm
46.5mm
75mm
10/25m
25m
PACS80
80mm
70
Coarse
79.3mm
67.0mm
160mm
10m
10m
PACS106
106mm
95
Coarse
106.0mm
91.5mm
210mm
10m
10m
To order quote part number, colour & reel length, e.g. PAFS13/BL/50M
Type PA
Standard Weight Conduit
Type PA
Heavyweight Conduit
/
Materials:
Polyamide (Nylon) 6 /
Colour:
Black (BL), Grey (GR)
Nominal
NW
Conduit
Outside
Inside
Min. Bend
Reel
Part No.
Conduit Size Conduit Size Pitch
Diameter
Diameter
Radius
Length
PAFH13
13mm
10
Fine
13.0mm
9.0mm
35mm
50m
PAFH16
16mm
13
Fine
15.8mm
11.3mm
45mm
50m
PACH21
21mm
17
Coarse
21.2mm
14.5mm
60mm
50m
PACH28
28mm
23
Coarse
28.5mm
21.3mm
70mm
50m
PACH34
34mm
29
Coarse
34.5mm
26.8mm
75mm
50m
PACH42
42mm
36
Coarse
42.5mm
34.6mm
90mm
25m
PACH54
54mm
48
Coarse
54.5mm
46.0mm
95mm
25m
To order quote part number, colour & reel length, e.g. PAFH13/BL/50M
Approvals
Type PA
Heavyweight Conduit
Approvals
IP Rating
Appropriate Fitting
For use with:
Adaptalok / ATS / Adaptaring / Adaptaseal / Jumbo
IP40
Adaptaring & Jumbo
IP65
Jumbo + SK Seal
IP66
Adaptalok, ATS or Adaptaseal
IP67
Adaptalok + ALS Seal or ATS, Adaptaseal
IP68
Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K
Adaptalok + ALS Seal or ATS
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
High Flexibility - High Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
IP Rating
Appropriate Fitting
For use with:
Adaptalok / ATS / Adaptaring / Adaptaseal
IP40
Adaptaring
IP65
N/A
IP66
Adaptalok, ATS or Adaptaseal
IP67
Adaptalok + ALS Seal or ATS, Adaptaseal
IP68
Adaptalok + ALS Seal or ATS, Adaptaseal
IP69K
N/A
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -5ºC to +120ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
Very High
