Modicon Premium automation
platform
Preventa safety module type TSX PAY 262
Description,
connection principle
Description

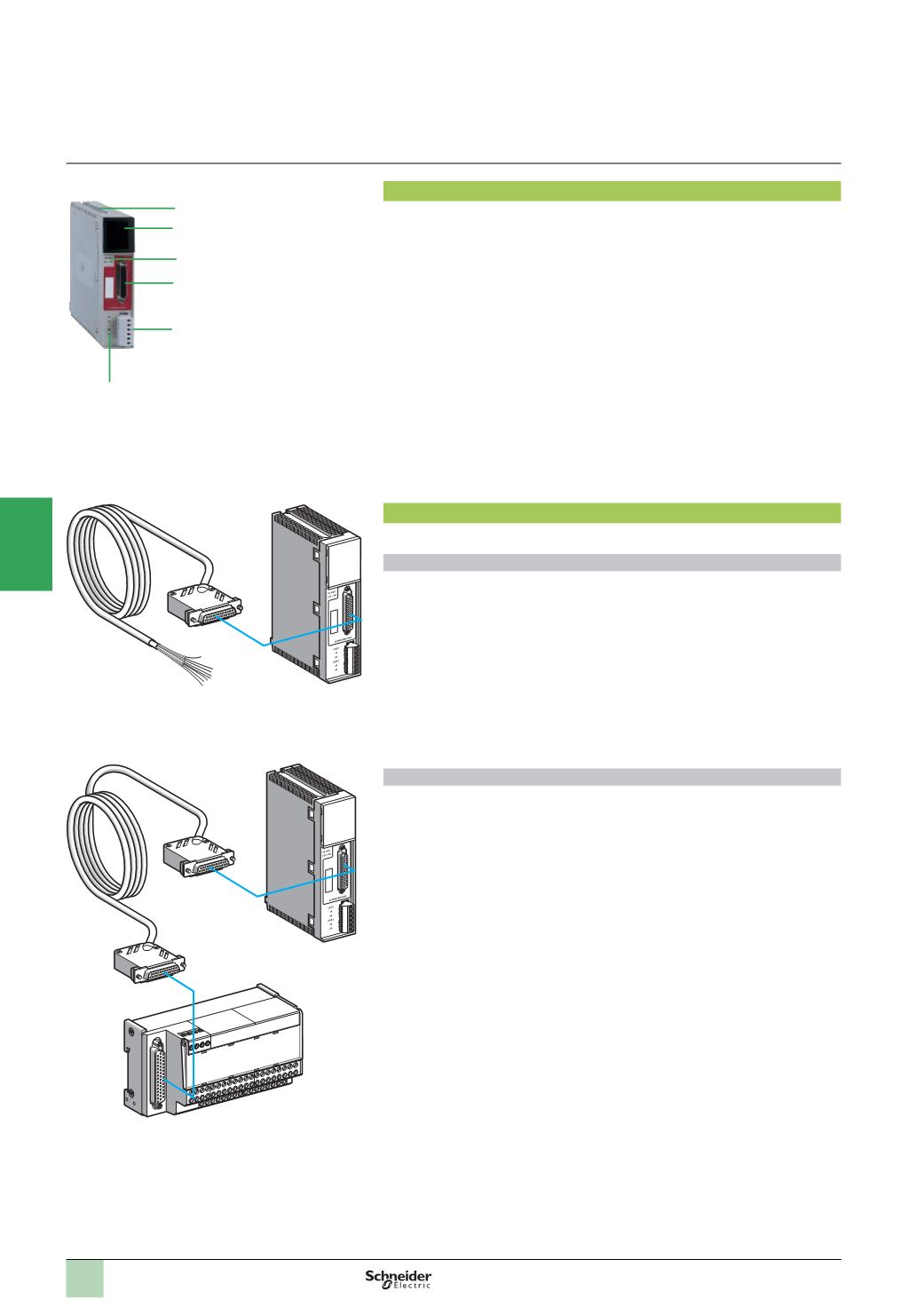

TSX PAY 262 safety module comprises on the front panel :
1
A rigid IP 20 casing to hold and protect the electronic card.
2
A display block (32 LEDs) showing operating modes, faults and the status of the
safety system.
3
A high density 44-way SUB-D connector for connecting the safety system.
4
A 6-way removable screw terminal block for connecting the safety outputs.
5
Marking for labelling the safety outputs.
6
Marking for the external power supply of the module.
Connection principle
Two types of connection for TSX PAY 262 safety module are available:
Standard wiring
A
TSX CPP 301
3
m cordset is fitted with a 44-way SUB-D moulded, elbow
connector at one end, and flying leads differentiated by a colour code at the other
end.
This wiring system conforms to the standard EN 954-1/ISO 13849-1.
Fast wiring
Using the Modicon Telefast ABE 7 pre-wired system facilitates the installation of
TSX PAY 262 safety module by giving access to inputs on the safety system via screw
terminals.
Connection is carried out using
TSX CPP
p
02
cordsets fitted with 44-way SUB-D
moulded, elbow connectors at both ends.
The Modicon Telefast
ABE 7CPA13
sub-base enables the connection of 12 double or
single contact inputs, the power supply, reset inputs and the feedback loop.
This wiring system conforms to the standard EN 954-1/ISO 13849-1.
