Presentation
Modicon Premium automation
platform
Multirack configuration without remote module

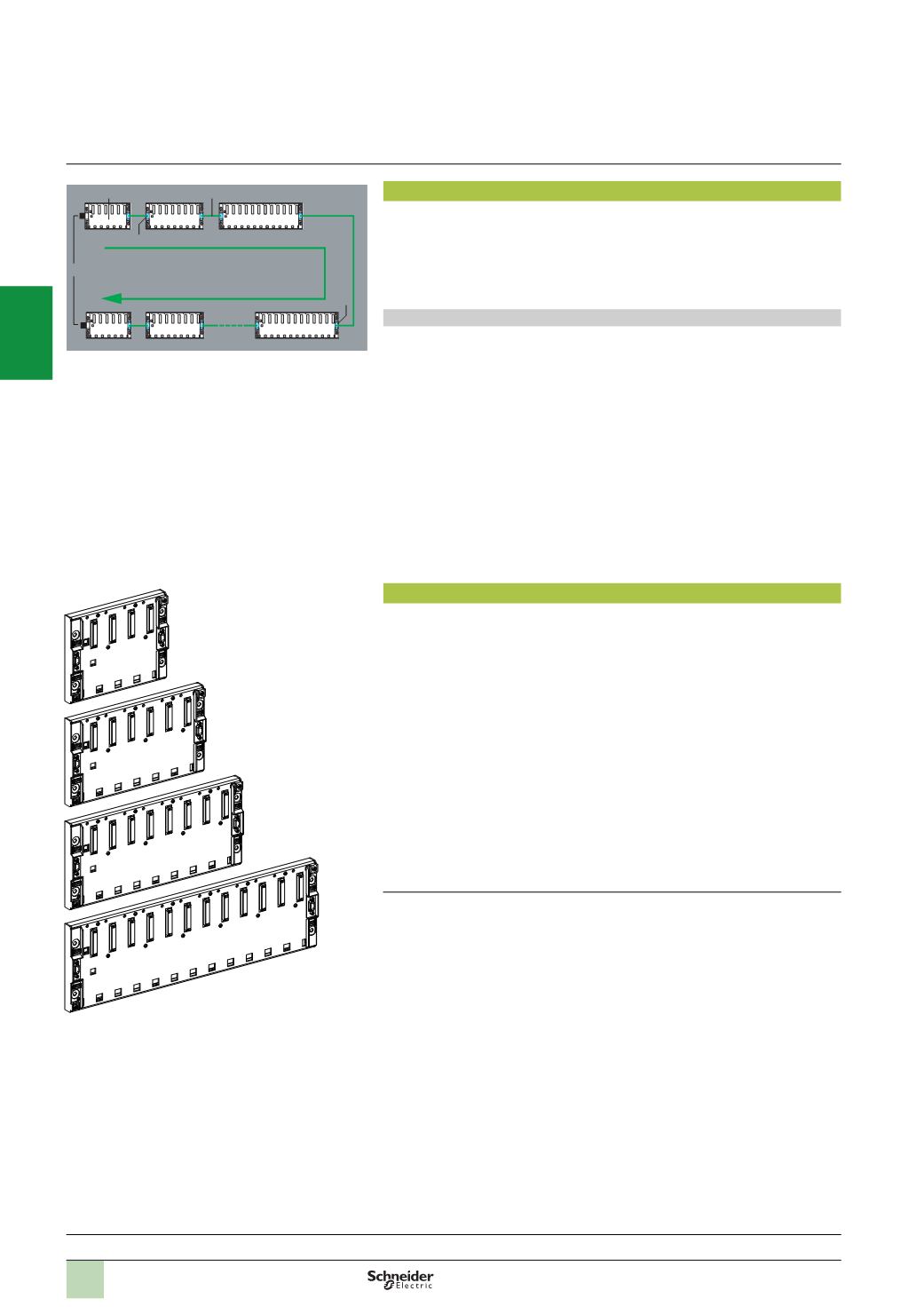

Composition of a multirack configuration
Multirack configurations are made up using extendable racks
1
TSX RKY 4EX
/
6
EX
/
8
EX
/
12
EX
(1)
.
They comprise:
b
4
racks maximum for a station with Premium TSX 57 10 processor
b
16
racks maximum for a station with Premium TSX 57 20, 57 30, 57 40, 57 50,
57 60
processor.
The racks are connected to each other by bus X extension cables
2
.
Bus X
The racks, distributed on bus X, are connected to each other by bus X extension
cables whose total length is 100 m max. Using
TSX REY 200
bus X remote modules
enables the length of bus X to be increased to a maximum of 2 x 350 m (see page
2/12).
The racks are connected to each other by means of bus X extension cables
TSX
CBY
ppp
0
K
p
which are connected to the 9-way SUB-D side connectors on each
extendable rack. The incoming cable from the previous rack can be connected to
either the left-hand
3
or right-hand
4
connector on the rack. For lengths greater than
28
m,
TSX CBY
ppp
0
KT
bus X extension cables are supplied with 2 adaptors to be
fitted at each end and which provide greater protection against any strong electrical
transients that may occur between the racks (according to standard IEC 61131-2).
Line terminators
The two extendable racks located at the ends of the line must have a line terminator
5
TSX TLY EX
fitted on the unused 9-way SUB-D type connector.
Presentation of extendable racks
TSX RKY
ppp
EX
racks are the basic elements of Premium multirack configurations.
They provide the following functions:
b
Mechanical function: they enable all the modules of a PLC station (power supply,
processor, discrete I/O, analogue I/O, application-specific modules) to be fitted
b
Electrical function: they allow connection and continuity of the the bus X and
provide distribution of:
v
power supplies required for each module in the same rack
v
data and service signals for the entire PLC station where this station has several
racks.
To meet user requirements, several types of rack are available (4, 6, 8 or 12
positions) in order to make up PLC configurations comprising up to 16 racks max.
distributed on bus X.
TSX FAN
pp
P
fan modules installed above the racks of Premium PLCs provide
forced air convection, in order to maintain an even ambient temperature inside the
enclosure and to eliminate any hot spots that may exist (see page 2/2).
(1)
Using the
TSX RKY 12EX
12-
slots rack is the same as occupying 2 racks with 4, 6 or 8 slots.
