Modicon Premium automation
platform
0
Single-rack configuration
Presentation,
description
References:
page 2/7
Presentation
The
TSX RKY
ppp
pp rack is the basic element of a Premium control system
platform with a single rack (6, 8 or 12 positions).
These racks are non extendable. They provide the following functions:
b
Mechanical function: they enable all the modules of a PLC station (power supply,
processor, discrete I/O, analogue I/O, application-specific modules) to be installed.
b
Electrical function: they provide distribution of:
v
Power supplies required for each module in the same rack
v
Data and service signals for the entire PLC station when the station has several
racks.
TSX FAN
pp
P
fan modules installed above the racks of Premium PLCs provide
forced air convection, in order to maintain an even ambient temperature inside the
enclosure and to eliminate any hot spots that may exist (see page 2/2).

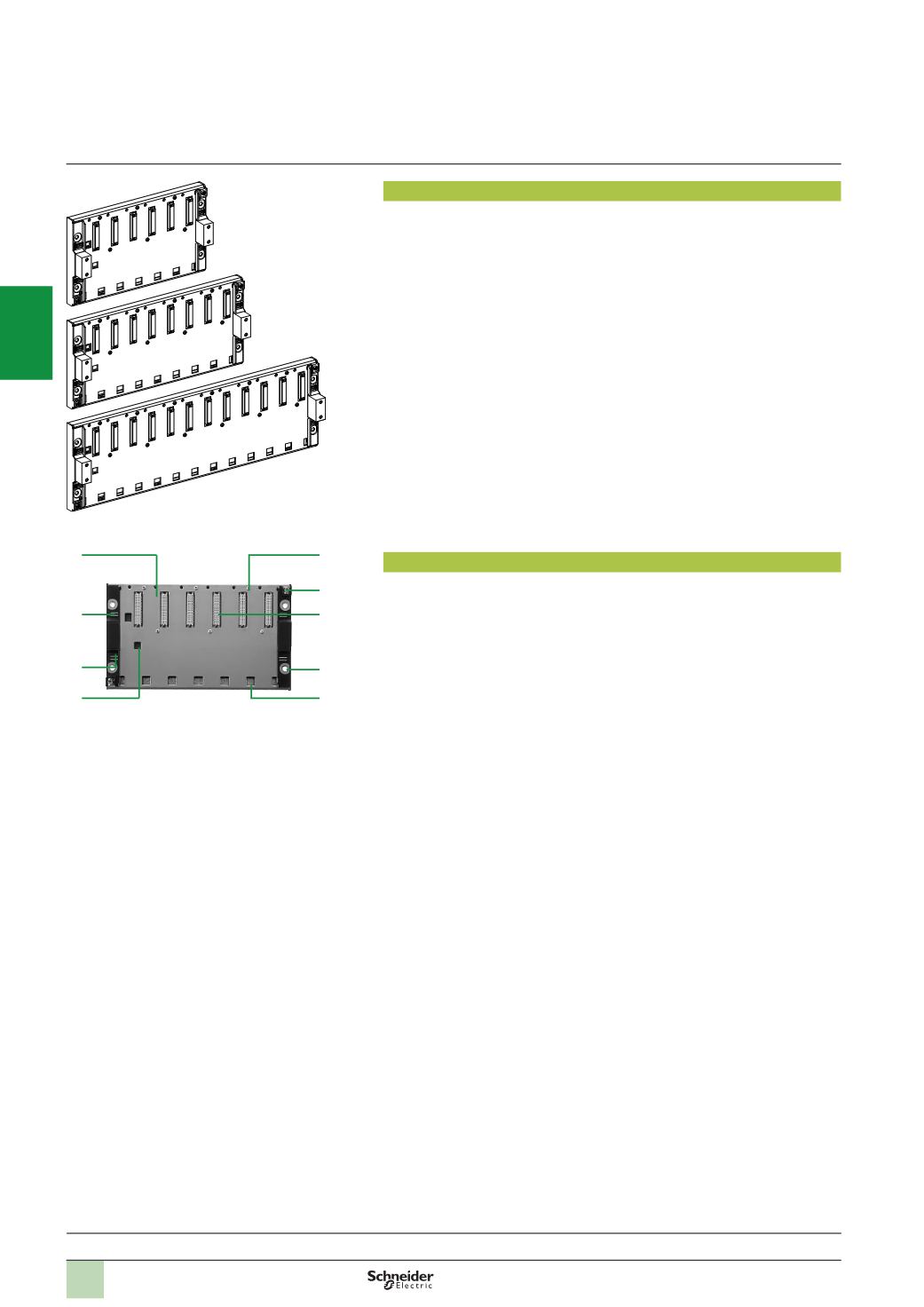

Description
TSX RKY
pp
racks comprise:
1
Ametal frame
2
Slots for anchoring the module pins
3
48-
way female 1/2 DIN connectors for module/rack connections (the first
connector is reserved for the power supply module)
4
A locating slot for the power supply module
5
Tapped holes for mounting the module
6
Four holes for mounting the rack
7
Slot for the rack address label
8
A slot for the station network address label.
9
Two earth terminals for earthing the rack
