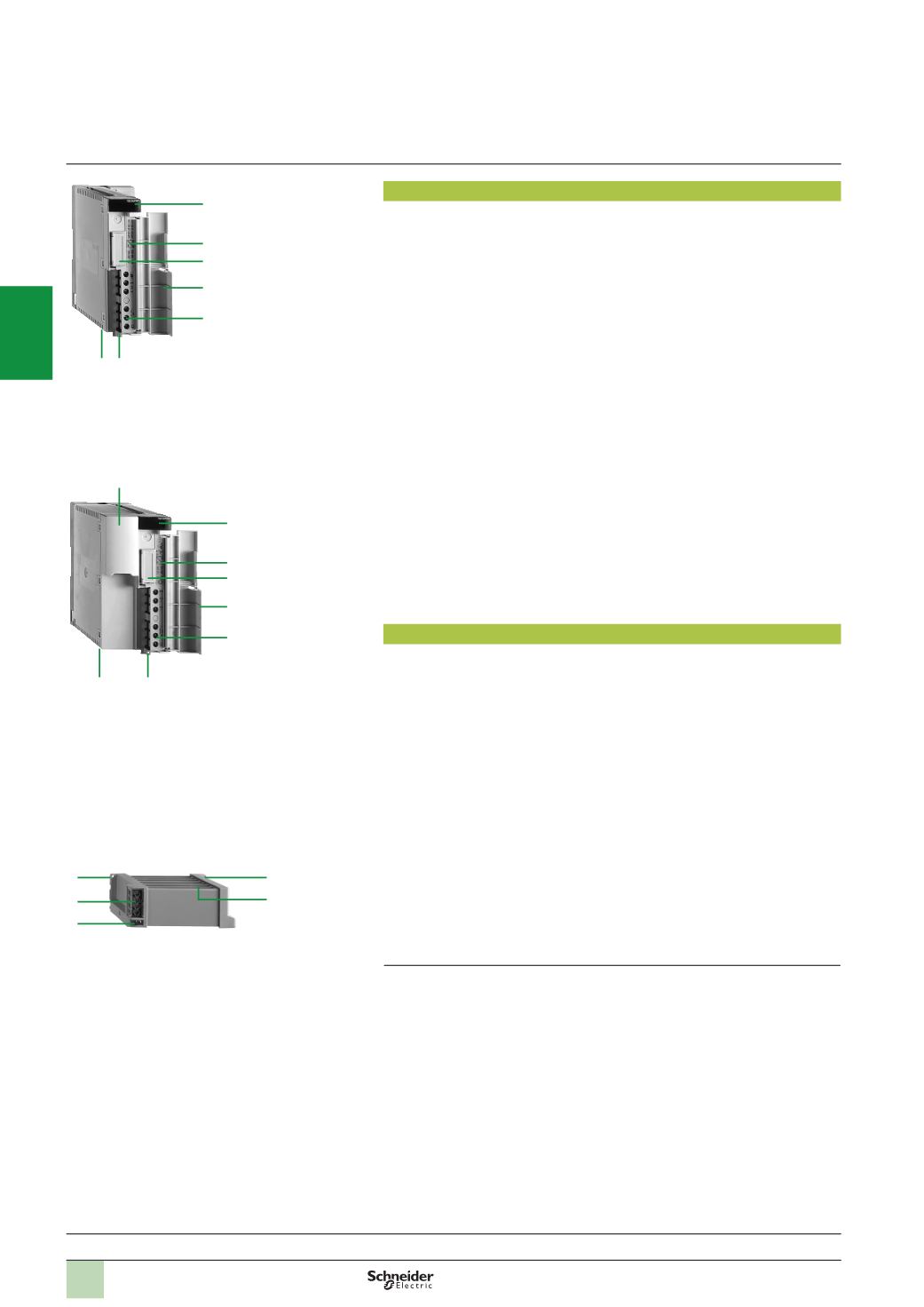

Description of power supply modules
TSX PSY
ppp
0
M
power supply modules provide the power supply for each rack and
the modules installed on it.
The power supply module is selected according to:
b
The line supply: 24 V
c
, 24...48
V
c
, 100...120
V
a
, 200...240
V
a
.
b
The required power: standard format or double-format model, see power
consumption table on page 9/6.
Power supply modules
TSX PSY
ppp
0
M
comprise:
1
A display block comprising:
v
OK LED (green), lit if rack voltages are present and correct
v
BAT lamp (red), on if the battery is faulty or missing
v
24
V lamp (green), on when the sensor voltage is present (depending on model)
2
RESET pencil-point pushbutton causing a warm restart of the application
3
Slot for a battery which protects the processor's internal RAM memory
4
Cover to protect the front panel of the module
5
Screw terminal block for connection to:
v
The line supply
v
The alarm relay contact
v
The sensor power supply for a.c. supplies (depending on model).
6
Opening for cable clamp
7
Fuse located beneath the module and protecting:
v
24
VR voltage on the non-isolated d.c. supply with
TSX PSY 3610
v
Primary voltage on the other power supplies
8
110/220
voltage selector (depending on model).
Description of fan modules
TSX FAN
pp
P
fan modules installed above the racks of Premium PLCs provide
forced air convection, in order to maintain an even ambient temperature inside the
enclosure and to eliminate any hot spots that may exist.
Fan modules are required when the ambient temperature is between 60 °C and
70
°C (forced ventilation enables the ambient temperature in the enclosure to be
lowered by 10 °C)
(1)
Three types of fan module are available: 24 V
c
, 110
V
a
and 220 V
a
According to the modularity of the racks used:
b
One fan module for a 4 or 6 position rack
b
Two fan modules for an 8 position rack
b
Three fan modules for a 12 position rack
TSX FAN
pp
P
fan modules comprise:
1
A connection terminal block for power supply to the fan module, the internal
temperature probe and the associated LED or preactuator
2
An earth terminal
3
Two mounting holes for the fan module
4
Shuttered air outlets
(1)
For an ambient temperature between 25 °C and 60 °C, the use of fan modules increases the
MTBF.
Description
Modicon Premium automation
platform
Power supply and fan modules
3
1
2
3
4
1
2
3
4
5
7
6
8
