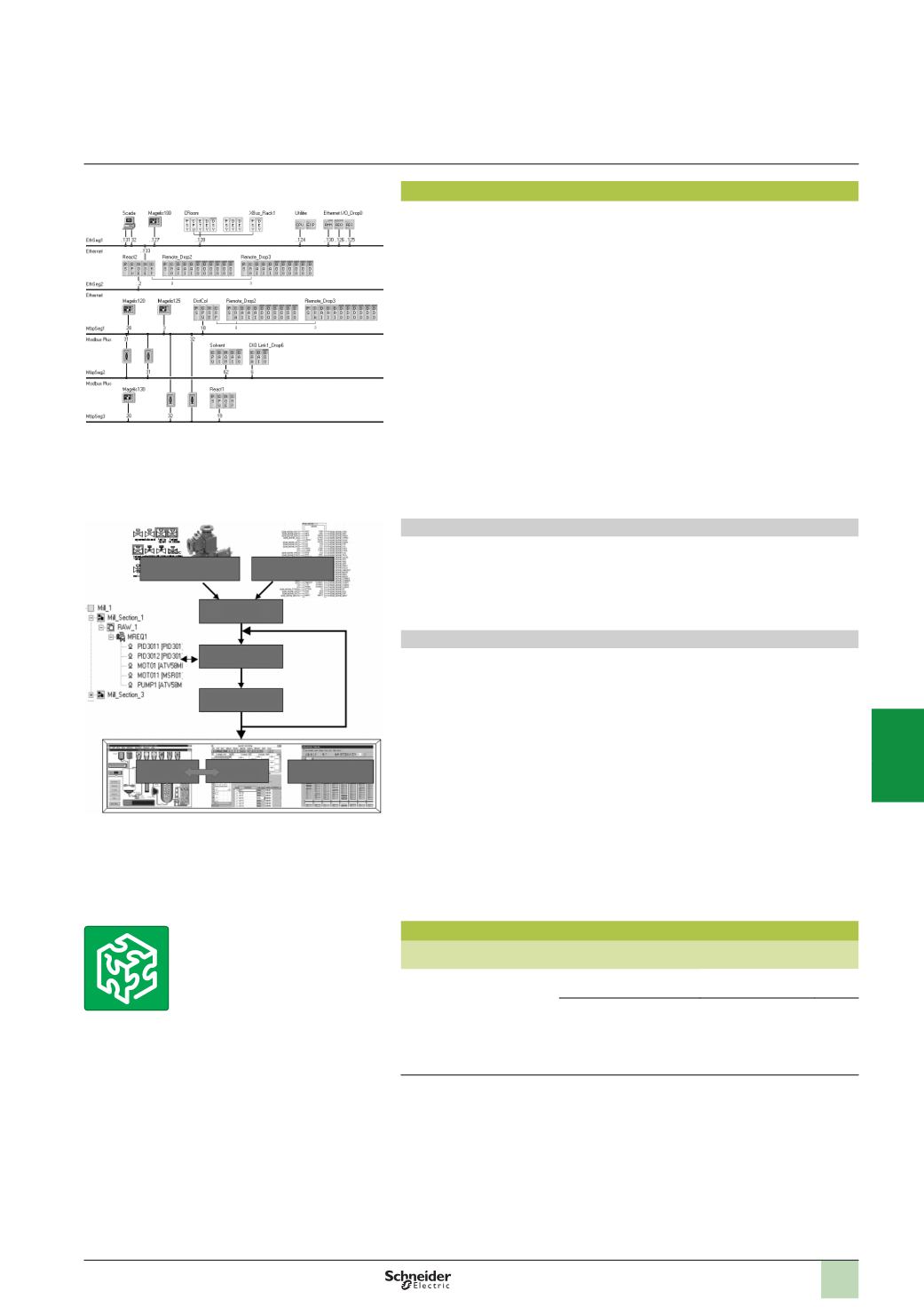

Applications
(
continued)
(1)
b
Multi-station automation configuration
:
the entire process control, monitoring
and supervision topology of the distributed automation system is managed within
UAG.
b
Generating the application
:
the automation solution is generated based on the
structured design and your standards contained within the pre-qualified UAG library,
ensuring consistent information for the PLCs and the HMI/SCADA. The use of
resources (addresses, name space, etc.) is optimized to avoid conflicts and errors.
UAG can generate complete projects, as well as
incremental changes
when
modifications occur.
b
Validation
:
UAG simplifies validation when required by regulation or to comply
with GAMP (Good Automation Manufacturing Practice). UAG uses ISA 88 standard
terminology for batch control and supports the GAMP methodology for creating an
automation system.
b
Process Application Library for Vijeo Citect
:
the Process Application Library
for Vijeo Citect is shipped together with the UAG CD and can be installed from there.
A separate order is not necessary; simply complete the registration details during
installation.
b
Device and Process Library
:
the Device and Process Library is shipped
together with the UAG CD and can be installed from there. A separate order is not
necessary; simply complete the registration details during installation.
Segment/Application-specific libraries
A number of more specialized libraries have been developed to provide a more
complete starting point for certain projects, such as:
b
Water & Wastewater
b
Mining, Minerals, Metals
b
etc.
Supported platforms and environment
b
Supported platforms
v
PLC software: Unity Pro
u
V4.1
v
PLC hardware: M340, Premium and Quantum
v
M340 I/O, Premium I/O, Quantum I/O and Modicon I/O
v
Modbus TCP and Modbus Plus
v
Fieldbus support
v
Advantys STB configuration and debugging software
u
V4.7
b
HMI/SCADA
v
Vijeo Citect
u
V6.1
v
Wonderware Archestra V3.0
v
OPC data server software (OFS)
v
Other HMI/SCADA via the UAG “Plug-In” interface
b
Export of information for other devices/applications
v
XML export file
v
CSV export file
b
Environment
:
Compatible with Microsoft Windows
®
7
Professional
(2)
,
Windows
®
Vista Business and Windows
®
XP Professional operating systems
References
(1)
Description
License type
Reference
Weight
kg
UAG software suites
(3)
Comprising:
b
UAG (Unity Application
Generator) software in
English, French, German,
b
Documentation (electronic
format)
Single (1 station)
UAG SEW LFU CD33
–
Site (> 10 stations)
UAG SEW LFF CD33
–
(1)
For more technical information, please consult our website
www.schneider-electric.com.
(2)
Please contact our Customer Care Centre.
(3)
The PLC/SCADA programming tools and/or communication driver must be ordered
separately.
Multi-station automation configuration
Graphic object
Logic object
ScoD
Instantiation
Generation
HMI
PLC
Documentation
Generating the application
UAG
Presentation
(
continued)
,
references
Software
Unity software
Unity Application Generator
