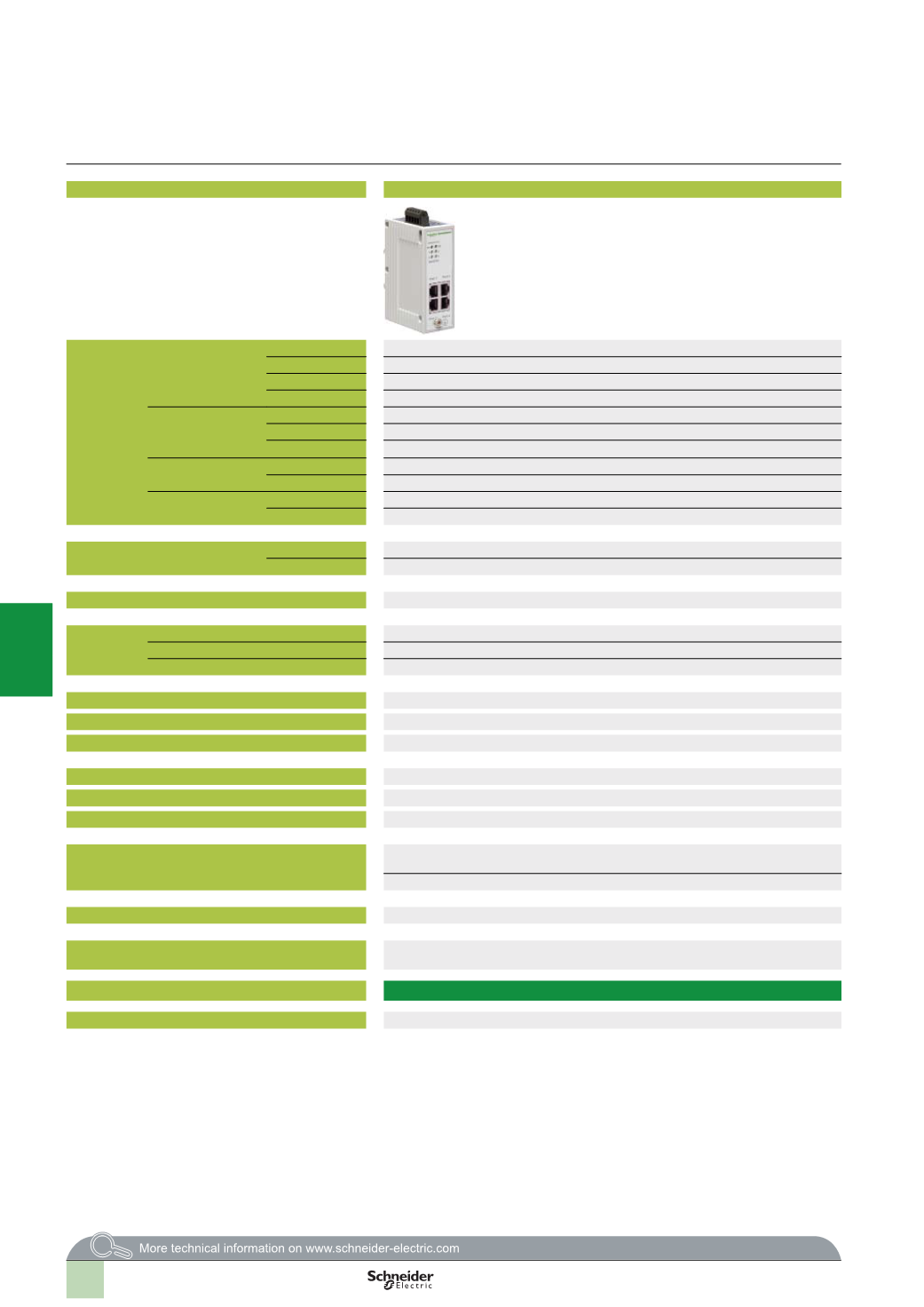

Device type
Hub
Interfaces
Copper cable ports
Number and type
4
x 10BASE-T ports
Shielded connectors RJ45
Medium
Shielded twisted pair, category CAT 5E
Total length of pair
100
m
Fibre optic ports
Number and type
–
Connectors
–
Medium
–
Length of optical fibre 50/125 μm
–
62.2/125
μm
–
Optical fibre
attenuation analysis
50/125
μm fibre
–
62.2/125
μm fibre
–
Topology
Number of hubs
Cascaded
4
max.
In a ring
–
Redundancy
P1 and P2 redundant power supplies
Power supply
Voltage
24
V
c
(18…32)
safety extra low voltage (SELV)
Consumption
80
mA (130 max. at 24 V
c
)
Removable terminal block
5
terminals
Operating temperature
0…
+ 60°C
Relative humidity
10…95%
non-condensing
Degree of protection
IP 30
Dimensions
W x H x D
40
x 125 x 80 mm
Mounting
On symmetrical DIN rail, 35 mm wide
Weight
0.530
kg
Conforming to standards
cUL 60950, UL 508 and CSA 22.2 No. 142, UL 1604 and CSA 22.2 No. 213 class 1 division 2,
e
,
GL, C-Tick
FM 3810, FM 3611 class 1 division 2
LED indicators
Power supply, activity, link
Alarm relay
Power supply fault, Ethernet network fault or communication port fault (volt-free contact 1 A
max. at 24 V
c
)
Reference
499
NEH 104 10
