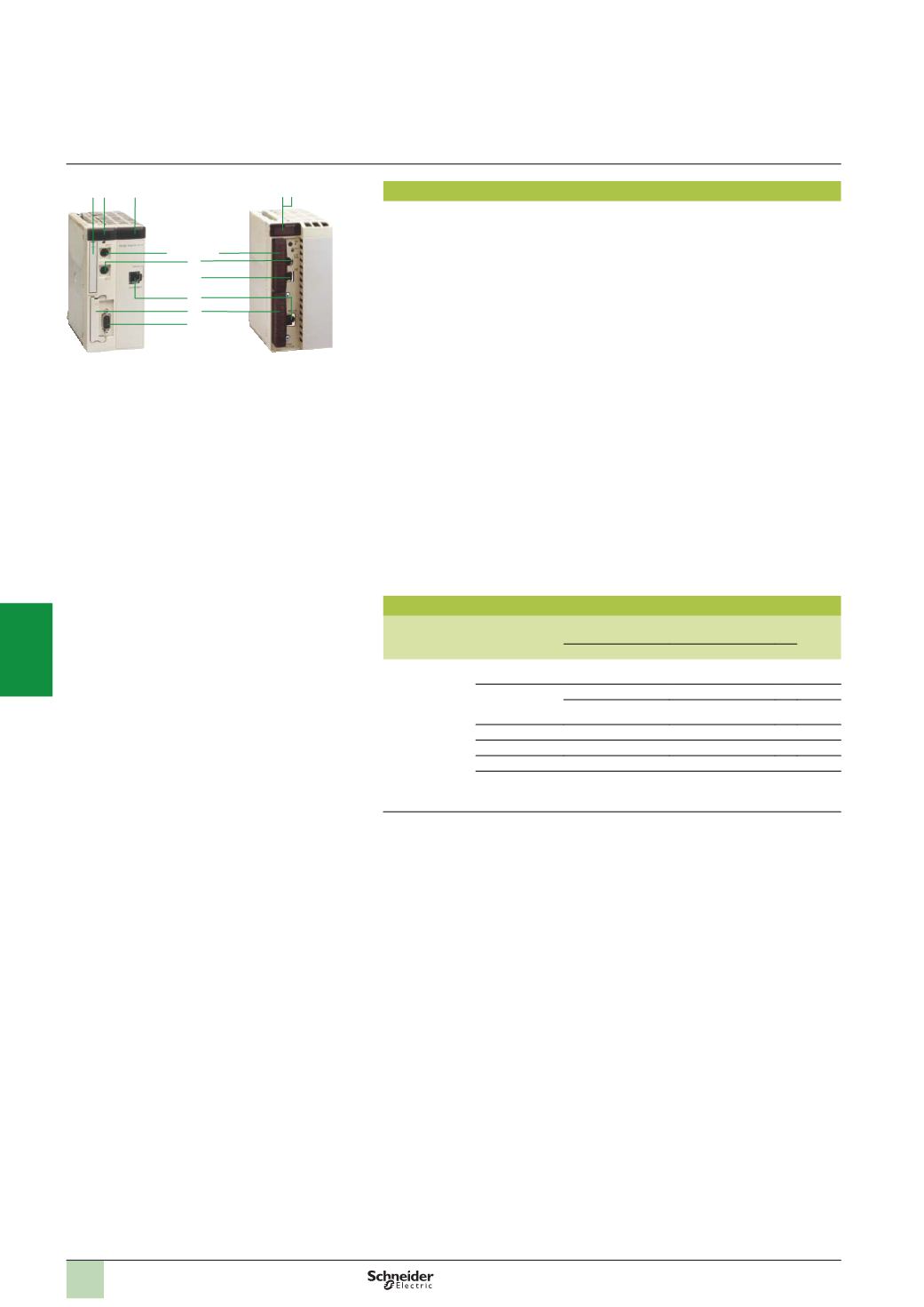

Description
The front panels of
TSX P57
p
634
M
(
Unity Pro) and
TSX P57
p
623
M/3623AM/
p
823
AM
(
PL7) double format processors with integrated Ethernet port comprise:
1
A display block with 5 LEDs relating to the processor.
2
A display block relating to the integrated Ethernet port.
3
An 8-way female mini-DIN connector marked TER for connecting a programming
or adjustment terminal.
4
AUSB connector marked TER for connecting a programming or adjustment
terminal.
5
An 8-way female mini-DIN connector marked AUX for connecting an RS 485
peripheral device.
6
A standard (RJ45) connector for 10BASE-T/100BASE-TX interface.
7
A slot for a PCMCIAmemory expansion card.
8
A slot for a PCMCIA communication or data storage memory expansion card.
9
A 9-way SUB-D connector (on
TSX P57 2823M/4823M
models only) for Fipio bus
manager link.
References
Description Discrete I/O
Analog I/O
App-sp. chann.
Reference
Weight
kg
Unity Pro
PL7 Junior/Pro
Processors with
integrated
Ethernet link
Class B30
512/24/8
TSX P57 1634M –
–
1024/80/24
TSX P57 2634M TSX P57 2623M
–
–
TSX P57 2823M
(1)
–
1024/128/32
TSX P57 3634M TSX P57 3623AM
–
2048/256/64
TSX P57 4634M TSX P57 4823AM
(1)
–
2048/512/64
TSX P57 5634M –
–
2048/512/64
TSX P57 6634M –
–
(1)
Also has an integrated Fipio bus manager link.
Description,
references
Modicon Premium automation
platform
0
Processors with integrated Ethernet port
TSX P57 4634M
TSX P57 5634M/6634M
TSX P57 1634M
TSX P57 2634M/3634M
TSX P57 2623AM/3623AM
TSX P57 2823M/4823M
