Presentation
TSX ETY 110 WS/4103/5103
and
TSX WMY 100
Ethernet network modules are
single format modules which are inserted in a Modicon Premium PLC station rack
slot. A configuration can take from 1 to 4 network modules, depending on the type of
processor.
Ethernet network modules route X-Way and Uni-TE messages transparently from a
Modbus/TCP network to an X-Way network and vice versa.
Description

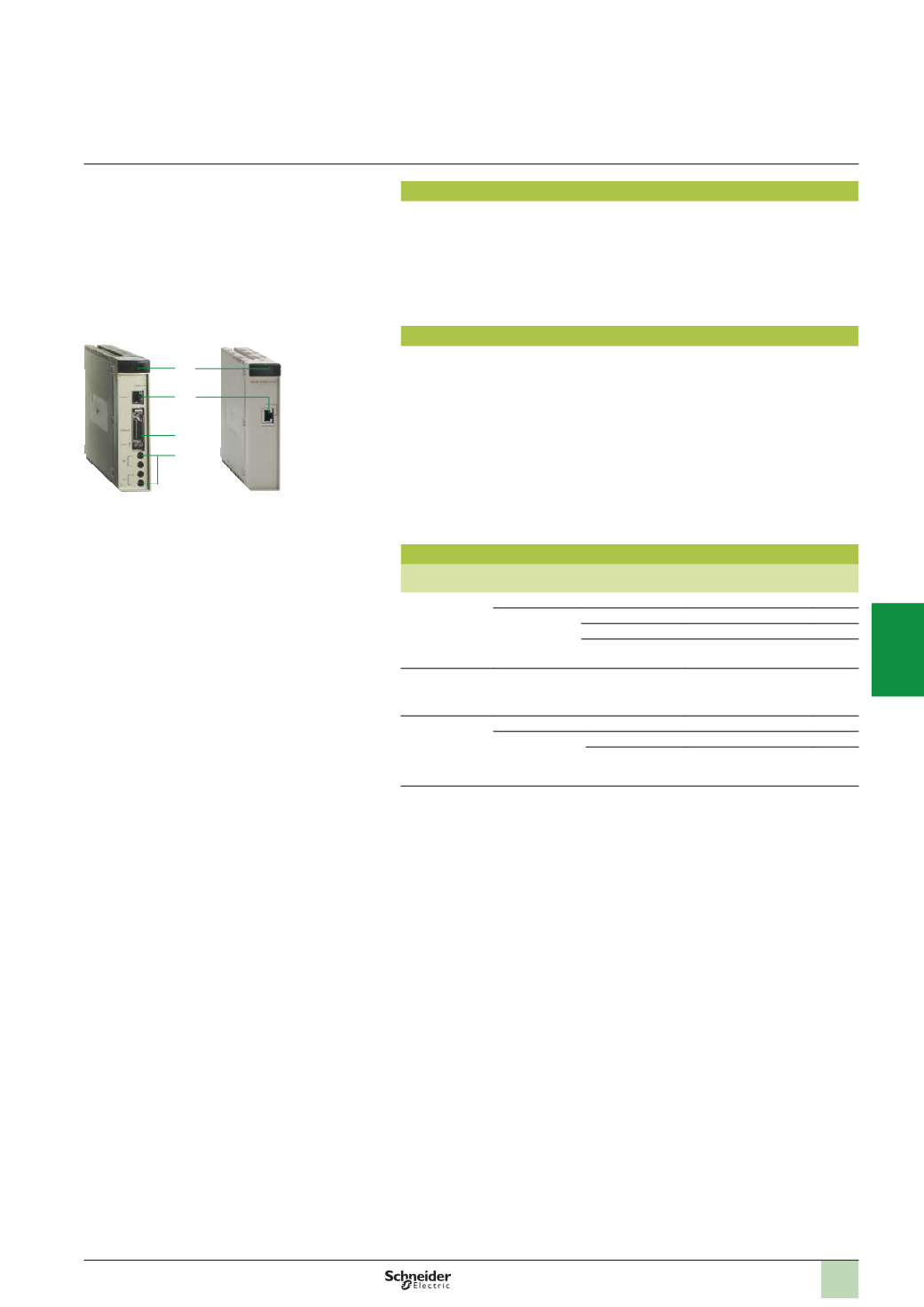

The front panel of
TSX ETY 110 WS/4103/5103
and
TSX WMY 100
modules
comprises:
1
A display block indicating the module status.
2
A standard connector for 100BASE-TX and/or /10BASE-T (RJ45) interface
depending on the model.
3
A standard connector for 10BASE5 interface (AUI).
4
Four thumbwheels for defining the station number and network number.
References
Description Data rate
Transparent Ready
class
Reference
Weight
kg
Ethernet
Modbus/TCP
modules
10
Mbps
C10
TSX ETY 110 WS
0.370
10/100
Mbps B30
TSX ETY 4103
0.340
C30
TSX ETY 5103
0.340
D10
TSX WMY 100
0.340
Web Designer
software
FactoryCast server configuration
Supplied with
TSX ETY 110 WS / 5103 and
TSX WMY100
TCP Open
software
TCP Open function block library
TLX CD TCP50M
–
SDKC,
C language
development
Unity applications
UNY SPU ZFU CD20E
–
PL7 applications
TLX LSDKC PL741M
–
Presentation,
description,
references
Modicon Premium automation
platform
0
Ethernet network modules
1
2
3
4
TSX ETY 110 WS
TSX ETY
p
103
TSX WMY 100
