Presentation
The
TSX ETC 101
EtherNet/IP and Modbus/TCP network module is a single format
module, compatible with Unity Pro software, which is inserted in a Modicon Premium
rack slot.
A configuration can take from 1 to 4 network modules, depending on the type of
processor.
EtherNet/IP protocol
EtherNet/IP is the Ethernet industrial network protocol based on CIP (
Common
Industrial Protocol
).
CIP and EtherNet/IP are protocols owned and managed by the ODVA, an
independent standards organization made up of members from the world's leading
automation companies.
Schneider Electric is a principal member of the ODVA organization.
Schneider Electric's presence in the organization and its technical committees
makes it easy for Modbus/TCP users to connect to the CIP network while retaining
their existing automation investment.
Users thus have the benefit of optimized interoperability between the installed bases
of the most widely used industrial Ethernet networks - EtherNet/IP and Modbus/TCP -
and between the automation products of a growing number of manufacturers.
This convergence enables users to reduce installation and maintenance times, costs
and risks.
Functions
The
TSX ETC 101
module provides the following functions:
b
EtherNet/IP and Modbus/TCP protocols operating simultaneously
b
Priority of Ethernet packets using the QoS
(
Quality of Service)
service
b
Automatic module configuration recovery using the FDR
(
Faulty Device
Replacement)
service
b
Support for SCADA functions via the OPC protocol
b
Embedded Web server for application monitoring and module diagnostics
b
Sharing data between PLCs
b
Network management using SNMP
(
Simple Network Management Protocol)

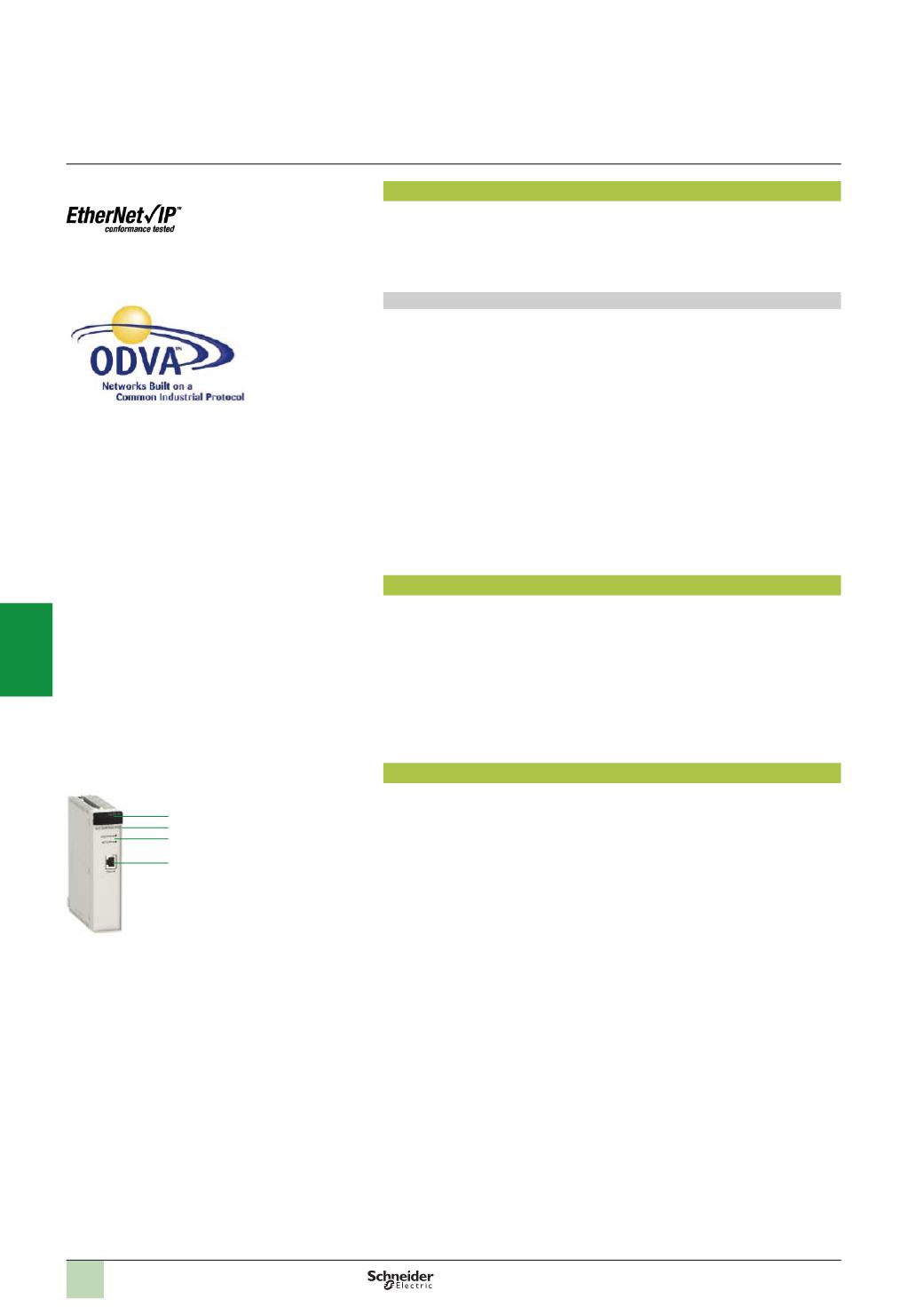

Description
The
TSX ETC 101
module front panel comprises:
1
A display block, which indicates the module status and the transmission status on
the network
2
The unique MAC address of the module
3
Two additional LEDs:
v
MOD STATUS LED: module operating status
v
NET STATUS LED: network status
4
A standard RJ45 connector for 10BASE-T/100BASE-TX interface
Certification logo Mark
Modicon Premium automation
platform
EtherNet/IP and Modbus/TCP network module
