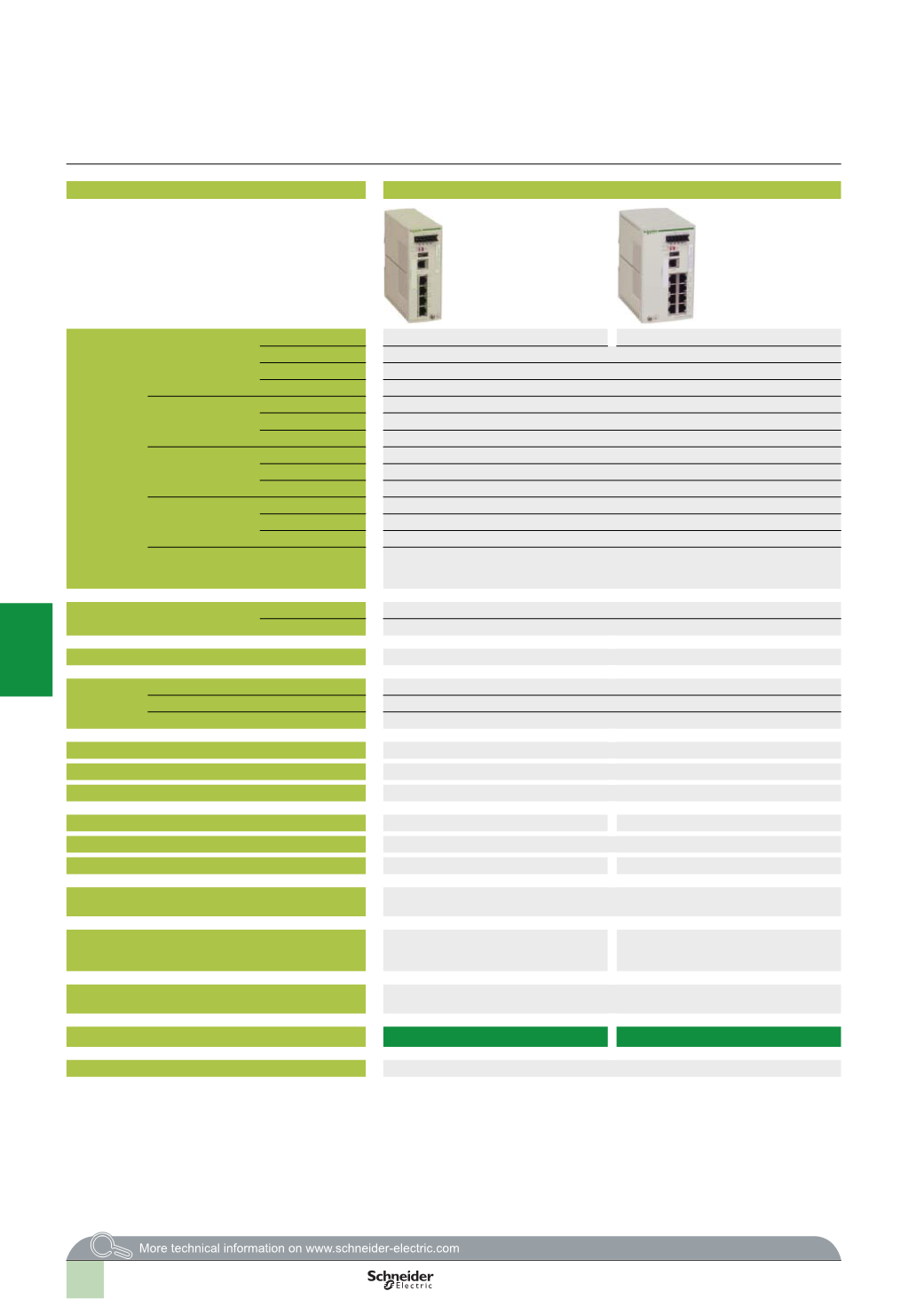

Device type
Managed switches, 4 and 8 ports, copper twisted pair
Interfaces
Copper cable ports Number and type
4
x 10/100BASE-TX ports
8
x 10/100BASE-TX ports
Shielded connectors
RJ45
Medium
Shielded twisted pair, category CAT 5E
Total length of pair
100
m
Fibre optic ports
Number and type
–
Connectors
–
Medium
–
Length of optical fibre 50/125 μm
–
62.2/125
μm
–
9/125
μm fibre
–
Attenuation analysis 50/125 μm fibre
–
62.2/125
μm fibre
–
9/125
μm fibre
–
Ethernet services
FDR, SMTP V3, SNTP client, multicast filtering for optimization of the Global Data protocol,
configuration via Web access,VLAN, IGMP Snooping, RSTP
(
Rapid Scanning Tree Protocol)
,
priority port, data stream control, secure port
Topology
Number of switches Cascaded
Unlimited
Redundant in a ring
50
max.
Redundancy
P1 and P2 redundant power supplies, redundant single ring, ring coupling
Power supply
Voltage
9.6...60
V
c
/18…30
V
a
safety extra low voltage (SELV)
Consumption
5.3
W
Removable terminal block
6
terminals
Operating temperature
0...
+ 60°C
Relative humidity
10…90%
non-condensing
Degree of protection
IP 20
Dimensions
W x H x D
47
x 131 x 111 mm
74
x 131 x 111 mm
Mounting
On symmetrical DIN rail, 35 mm wide
Weight
0.400
kg
0.410
kg
Conforming to standards
IEC/EN 61131-2, UL 508, UL 1604 class 1 division 2, CSA 22.2 No. 214 (cUL),
CSA 22.2 No. 213 class 1 division 2 (cUL),
e
,
GL, C-Tick
LED indicators
Power supply status, alarm relay status,
active redundancy, redundancy management,
copper port status and copper port activity
Power supply status, alarm relay status,
active redundancy, redundancy management,
fibre port status and fibre port activity
Alarm relay
Power supply fault, Ethernet network fault or communication port fault (volt-free contact 1 A
max. at 24 V
c
)
Reference
TCS ESM 043F23F0
TCS ESM 083F23F0
