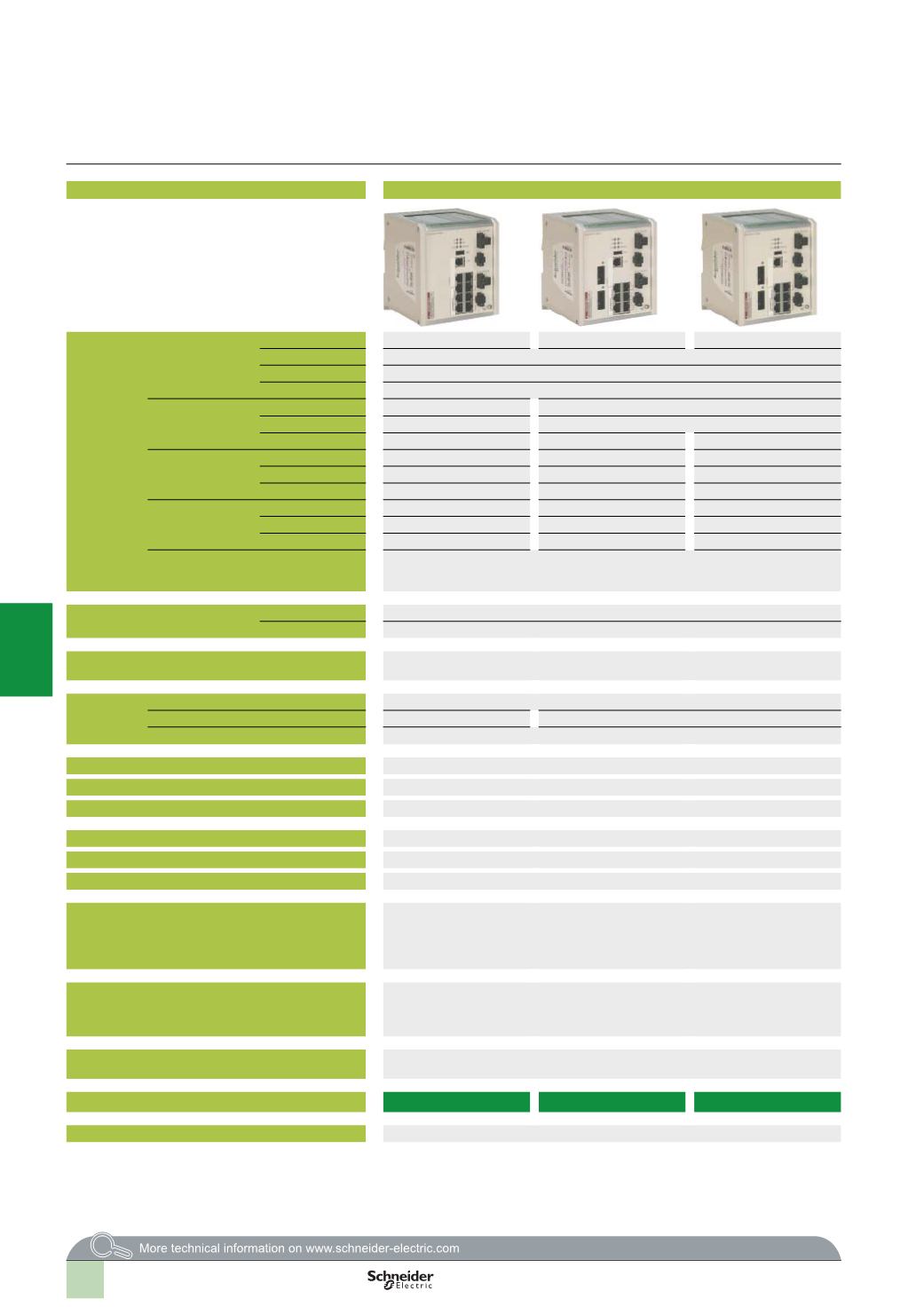

Device type
Managed switches, 8 extended ports, copper twisted pair and fibre optic
Interfaces
Copper cable ports Number and type
8
x 10/100BASE-TX ports
6
x 10/100BASE-TX ports
6
x 10/100BASE-T ports
Shielded connectors
RJ45
Medium
Shielded twisted pair, category CAT 5E
Total length of pair
100
m
Fibre optic ports
Number and type
–
2
x 100BASE-FX ports
Connectors
–
Duplex SC
Medium
–
Multimode optical fibre
Single mode optical fibre
Length of optical fibre 50/125 μm
–
5000
m
(1)
–
62.2/125
μm
–
4000
m
(1)
–
9/125
μm fibre
–
–
32,500
m
(2)
Attenuation analysis 50/125 μm fibre
–
8
dB
–
62.2/125
μm fibre
–
11
dB
–
9/125
μm fibre
–
–
16
dB
Ethernet services
FDR, SMTP V3, SNTP client, multicast filtering for optimization of the Global Data protocol,
configuration via Web access,VLAN, IGMP Snooping, RSTP
(
Rapid Scanning Tree Protocol)
,
priority port, data stream control, secure port
Topology
Number of switches Cascaded
Unlimited
Redundant in a ring
50
max.
Redundancy
Redundant power supplies, redundant single ring, ring coupling,
rings supporting MRP, Fast HIPER Ring and RSTP
Power supply
Voltage
18...60
V
c
Consumption
10
W
12
W
Removable terminal block
2
terminal blocks, 2 terminals
Operating temperature
0...
+ 60°C
Relative humidity
10…90%
non-condensing
Degree of protection
IP 30
Dimensions
W x H x D
120
x 137 x 115 mm
Mounting
On symmetrical DIN rail, 35 mm wide
Weight
1
kg
Conforming to standards
IEC/EN 61131-2, IEC 61850-3, UL 508, UL 1604 class 1 division 2, CSA 22.2 No. 214 (cUL),
CSA 22.2 No. 213 class 1 division 2 (cUL),
e
,
GL, C-Tick, LR, BV
LED indicators
Power supply status, alarm relay status, active redundancy, redundancy management, copper
port status and copper port activity
Alarm relay
Power supply fault, Ethernet network fault or communication port fault (volt-free contact 1 A
max. at 24 V
c
, 2-
way)
Reference
TCS ESM 083F23F1 TCS ESM 063F2CU1 TCS ESM 063F2CS1
Pages
5/72
(1)
Length dependent on the attenuation analysis and attenuation of the optical fibre (typical
value: 2000 m).
(2)
Length dependent on the attenuation analysis and attenuation of the optical fibre (typical
value: 15,000 m).
Selection guide
(
continued)
Ethernet network
Cabling system
ConneXium managed switches
