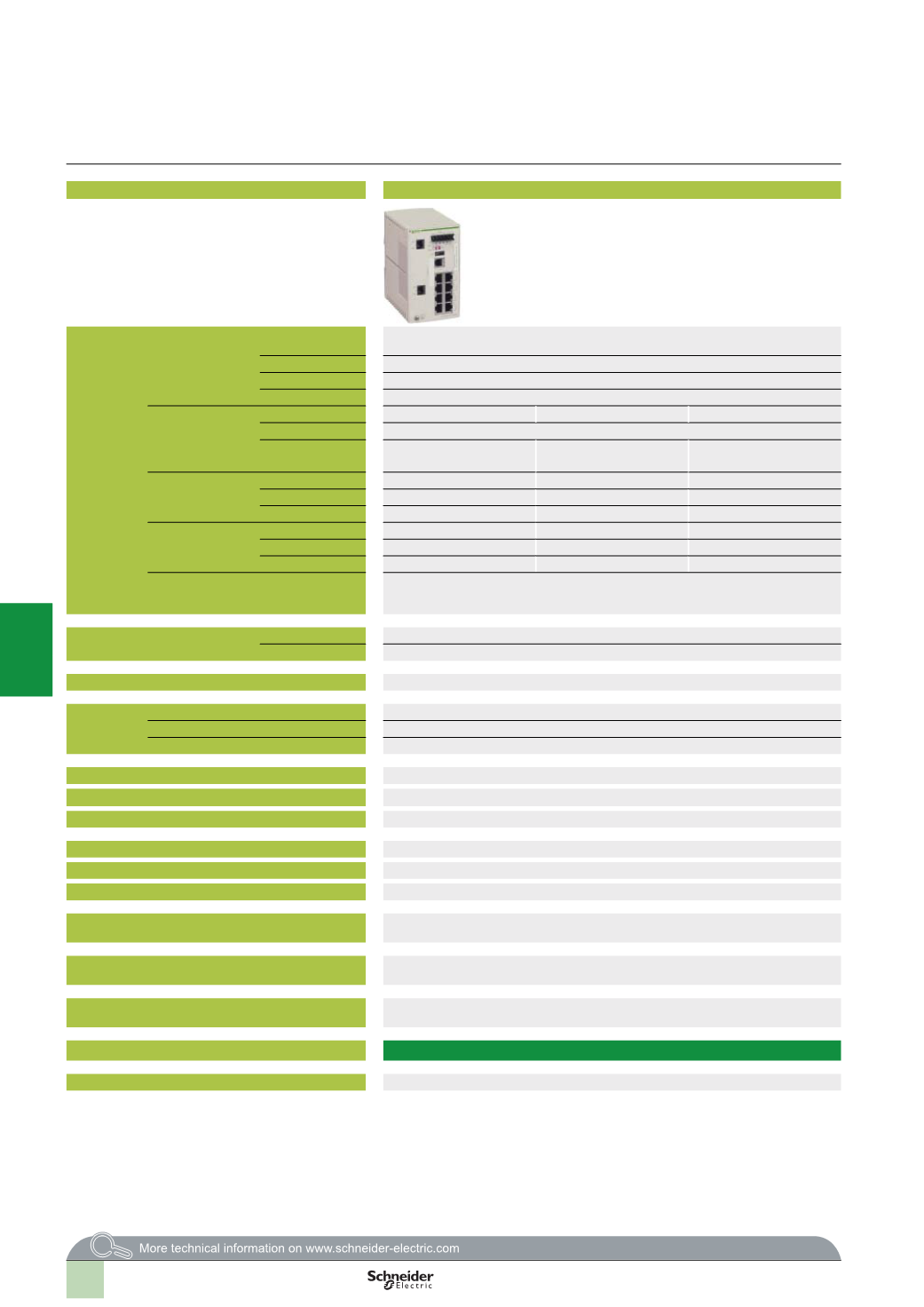

Device type
Managed switch, 8 ports and 2 Gigabit ports, copper twisted pair and fibre optic
Interfaces
Copper cable ports Number and type
8
x 10/100BASE-TX ports
Shielded connectors
RJ45
Medium
Shielded twisted pair, category CAT 5E
Total length of pair
100
m
Fibre optic
Gigabit ports
(
with SFP fibre optic
module to be mounted
on SFP connector)
Number and type
2
x 1000BASE-SX ports
(1)
2
x 1000BASE-LH ports
(2)
2
x 1000BASE-LX ports
(3)
Connectors
LC
Medium
Multimode optical fibre
Single mode optical fibre
Single mode and multimode
optical fibre
Length of optical fibre 50/125 μm
550
m
–
550
m
62.2/125
μm
275
m
–
550
m
9/125
μm fibre
–
8 - 72,000
m
20,000
m
Attenuation analysis 50/125 μm fibre
7.5
dB
–
11
dB
62.2/125
μm fibre
7.5
dB
–
11
dB
9/125
μm fibre
–
6 - 22
dB
11
dB
Ethernet services
FDR, SMTP V3, SNTP client, multicast filtering for optimization of the Global Data protocol,
configuration via Web access, VLAN, IGMP Snooping, RSTP
(
Rapid Scanning Tree Protocol)
,
priority port, data stream control, secure port
Topology
Number of switches Cascaded
Unlimited
Redundant in a ring
50
max.
Redundancy
Redundant power supplies, redundant single ring, ring coupling
Power supply
Voltage
9.6...60
V
c
/18…30
V
a
safety extra low voltage (SELV)
Consumption
8.9
W + 1 W per SFP fibre optic module
Removable terminal block
6
terminals
Operating temperature
0...
+ 60°C
Relative humidity
10…90%
non-condensing
Degree of protection
IP 20
Dimensions
W x H x D
111
x 131 x 111 mm
Mounting
On symmetrical DIN rail, 35 mm wide
Weight
0.410
kg
Conforming to standards
cUL 60950, UL 508 and CSA 22.2 No. 142, UL 1604 and CSA 22.2 No. 213 class 1 division 2,
e
,
GL
LED indicators
Power supply status, alarm relay status, active redundancy, redundancy management,
fibre port status and fibre port activity
Alarm relay
Power supply fault, Ethernet network fault or communication port fault (volt-free contact 1 A
max. at 24 V
c
)
Reference
TCS ESM 103F23G0
Pages
5/73
(1)
With
TCS EAA F1LFU00
fibre optic module to be ordered separately (see page 5/67).
(2)
With
TCS EAA F1LFH00
fibre optic module to be ordered separately (see page 5/67).
(3)
With
TCS EAA F1LFS00
fibre optic module to be ordered separately (see page 5/67).
