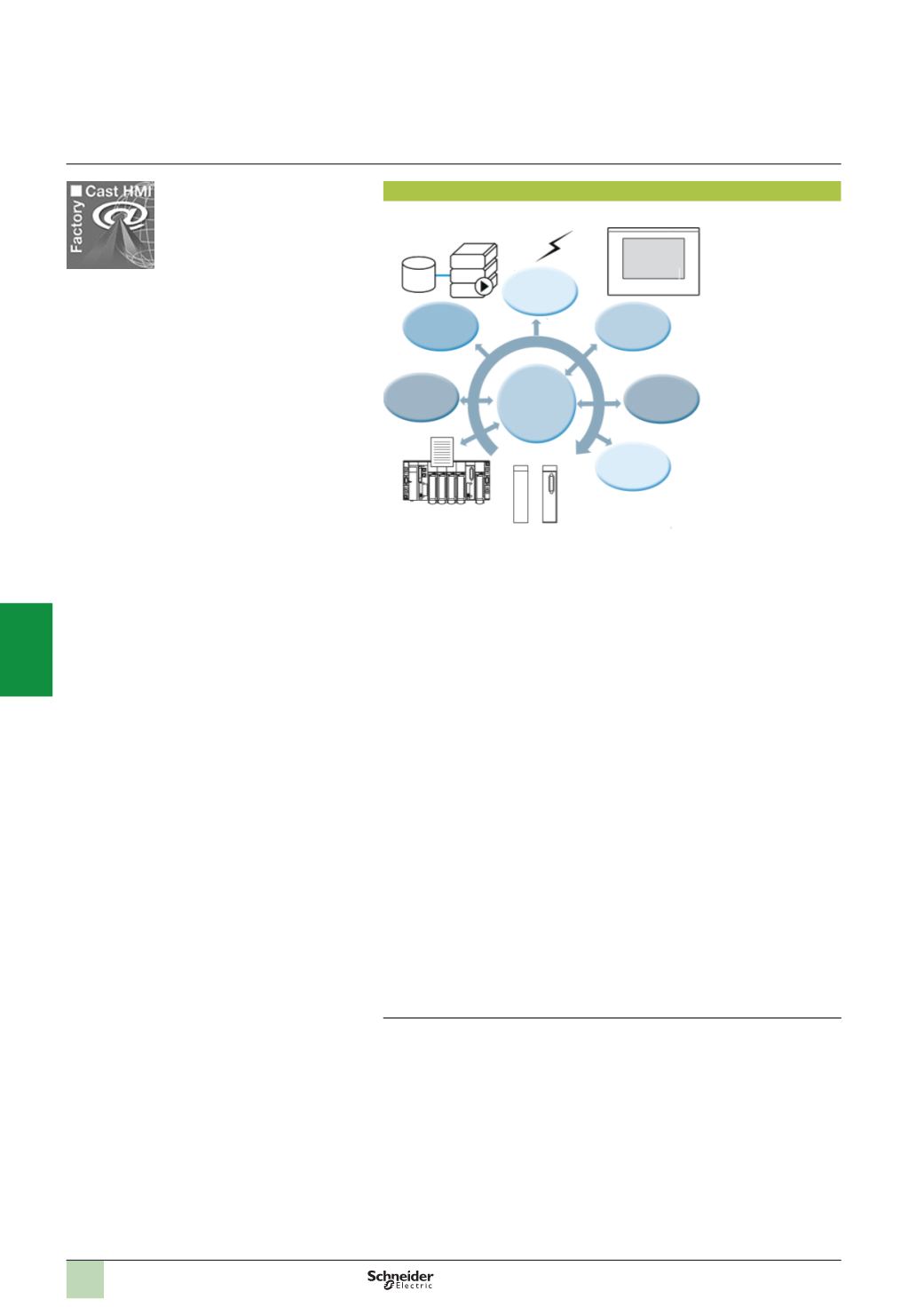

Presentation
FactoryCast HMI active Web servers
PLC data
FactoryCast HMI
real-time
database
FactoryCast HMI
modules
notification
Thin client
Relational database
Active Web
page refresh
Database
connection
Interpreted
calculations
Magelis
Smart
Recipe
management
Local data
logging
FactoryCast HMI Web services are integrated in the Web server modules embedded
in the Modicon Premium and Modicon Quantum automation platforms.
These modules have the following Ethernet and Web services:
b
Ethernet Modbus/TCP communication functions:
v
TCP/IP messaging service with Modbus TCP/IP and Uni-TE TCP/IP protocols
v
SNMP agent for standardized network management, which supports standard
MIB II and Transparent Ready private MIB
b
FactoryCast configurable Web services:
v
Rack Viewer PLC diagnostics functions (see page 5/19)
v
Data Editor read/write functions for PLC variables (see page 5/19)
v
Alarm Viewer alarm display functions (see page 5/20)
v
Graphic Data Editor online graphical view editor functions (see page 5/20)
v
Function for hosting and displaying user-defined Web pages (see page 5/21)
FactoryCast HMI modules also provide the following specialized HMI Web services:
b
Real-time HMI database management, independent of the PLC processor
b
Arithmetic and logical calculations on HMI data
b
Direct connectivity with relational databases (traceability)
b
Data Logging: recording data in the module
b
Display of Unity Pro graphic runtime screens in the form of Web pages
b
Recipe management (read/write)
b
Alarm and report notification by e-mail
b
Active page server, dynamic generation of animated HTML pages
b
Dynamic generation of HTML reports
b
Open data server interface. SOAP/XMLWSDL interface protocol
(1)
(1)
In order to simplify their selection and ensure their interoperability within a system, each
Transparent Ready product is identified by the class of services it provides. Letter A, B, C or
D (level of service for the Web server) followed by 10, 20 or 30 (level of service for Ethernet
communication).
Modicon Premium automation
platform
Ethernet Modbus/TCP network
FactoryCast HMI active Web services
