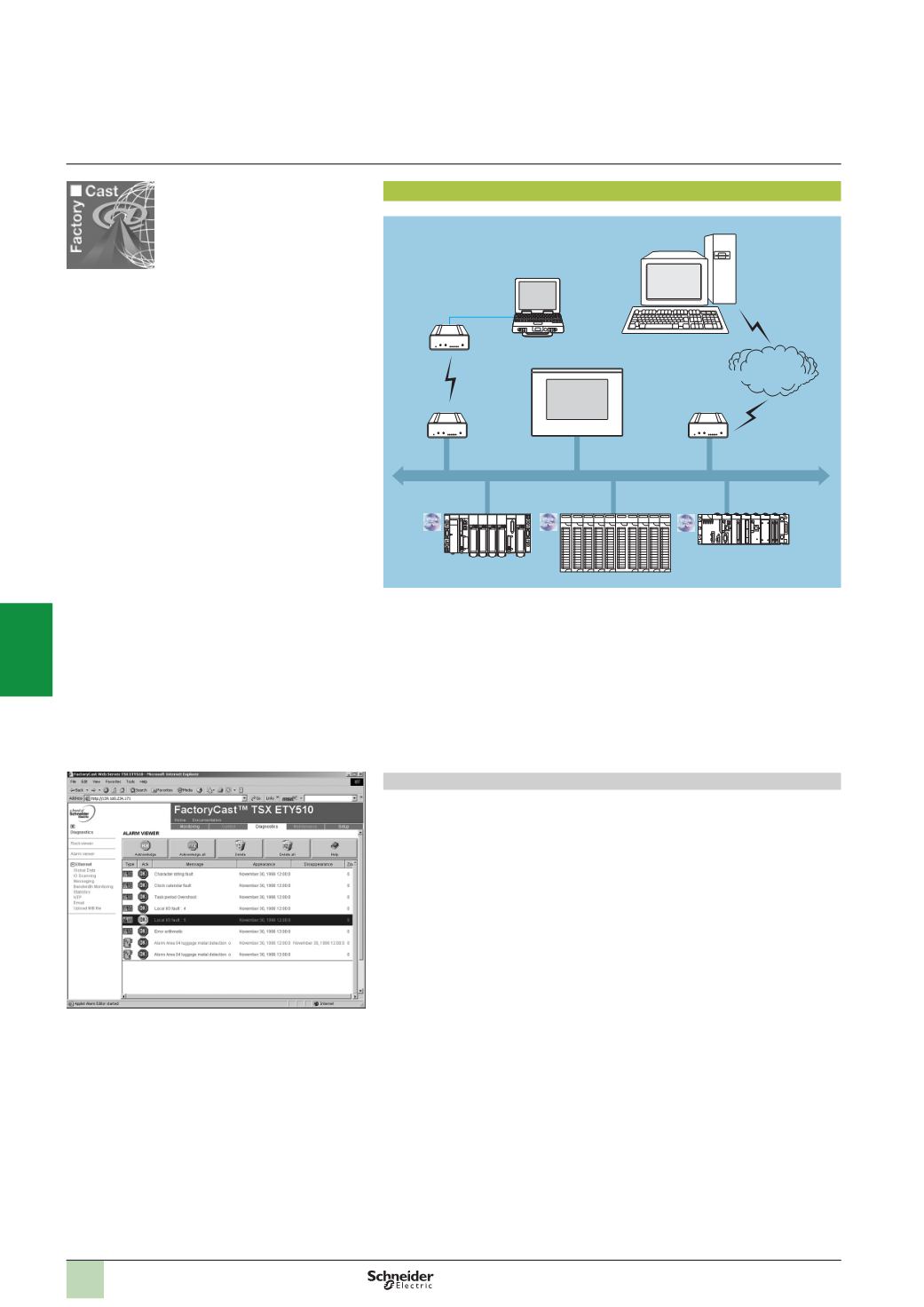

FactoryCast configurable Web server
In addition to standard Web services, FactoryCast modules (see selection table on
page 5/17) support the following functions:
b
Alarm Viewer
b
Creation and display of graphic views via an online graphics editor (Graphic Data
Editor, supplied)
b
Hosting and display of Web pages created by the user
b
SOAP/XML server interface
Alarm Viewer function
The alarm viewer is a ready to use, password-protected function. It is used to
process alarms (display, acknowledgement and deletion) managed at PLC level by
the system or using diagnostic function blocks known as DFBs (system-specific
diagnostic function blocks and application-specific diagnostic function blocks
created by the user).
These alarms are stored in the PLC diagnostics buffer (specific memory area used to
store all diagnostic events). This function is available with the Modicon Premium
platforms (with PL7 or Unity software) and the Modicon Quantum platform (with
Unity software).
The diagnostic viewer is a Web page comprising a list of messages, which displays
the following information for each alarm:
b
Dates and times of the appearance/disappearance of the fault
b
Alarm message
b
Alarm status
b
Type of associated diagnostic function block (DFB)
Internet
Firewall
Remote Web
client
Premium
Quantum
Modicon M340
Thin Client Web client
Magelis
Smart
Modem
+
RAS server
Web
server
Web
server
Web
server
Functions
Modicon Premium automation
platform
Ethernet Modbus/TCP network
FactoryCast configurable Web services
Alarm Viewer
