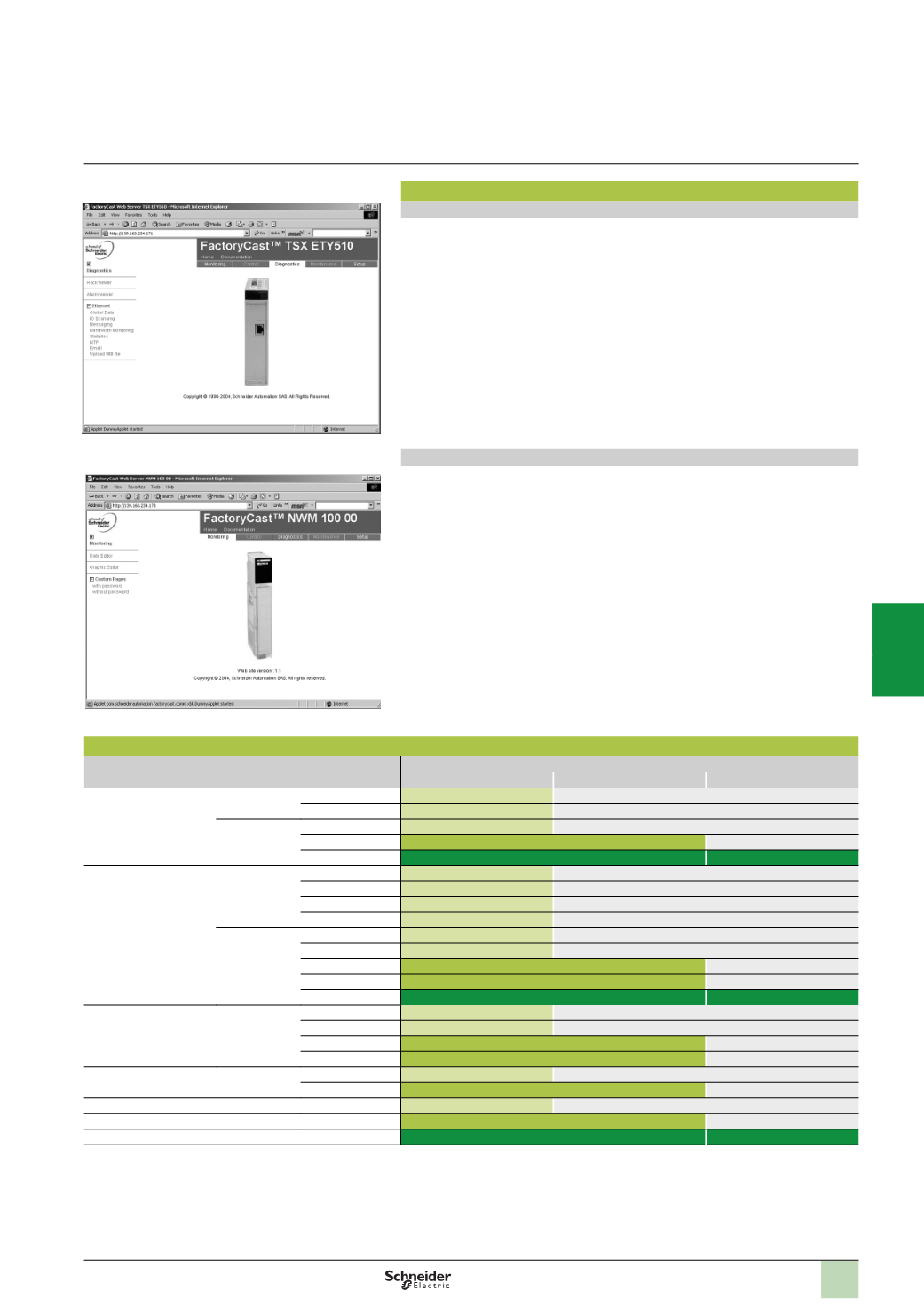

Presentation of Web services
(
continued)
FactoryCast configurable Web services
The configurable Web services are integrated in the following Schneider Electric
Ethernet products: FactoryCast PLC modules (Modicon TSX Micro, Modicon
Premium and Modicon Quantum) and FactoryCast Gateway modules.
In addition to the standard Web services, the configurable Web servers offer the
following functions:
b
Graphic application diagnostics (customized graphic views created by the user).
b
Graphic supervision via animated Web pages created by the user and stored in
the Web server module
b
And, depending on the products:
b
Management of PLC alarms (system and application) with partial or total
acknowledgement (ready to use Alarm Viewer function pages)
b
Open data server interface. SOAP/XML protocol, WSDL interface
(1)
FactoryCast Web servers can also be used to customize the supervision, diagnostics or
maintenance interface viaWeb pages defined by the user or any other document (doc,
pdf, etc.) hosted in the module.
FactoryCast HMI active Web services
The active Web services are integrated in the FactoryCast HMI modules of Modicon
Premium and Modicon Quantum PLCs.
In addition to the FactoryCast Web services, the FactoryCast HMI modules provide
HMI functions, which are executed in the module itself:
b
Real-time HMI database management, independent of the PLC processor
b
Arithmetic and logical calculations on HMI data
b
Direct connectivity with relational databases (traceability)
b
Data Logging: recording data in the module
b
Display of Unity Pro graphic runtime screens in the form of Web pages
b
Recipe management (read/write)
b
Alarm and report notification by e-mail
b
Active page server, dynamic generation of animated HTML pages
b
Dynamic generation of HTML reports
b
Open data server interface. SOAP/XMLWSDL interface protocol
(1)
FactoryCast HMI is defined as an active Web server used to execute HMI functions
without any effect on the PLC application program and therefore on its scan time.
Web server automation products
Product
Reference
Embedded Web server
Standard, class B
p
0
Configurable, class C
p
0
Active, class D
p
0
Modicon Quantum
platform
Processors 140 CPU 651 50/60
–
140
CPU 652 60
–
Modules
140
NOE 771 01
–
140
NOE 771 11
FactoryCast
140
NWM 100 00
FactoryCast
FactoryCast HMI
Modicon Premium
platform
Processors TSX P57 2
p
23
M
–
TSX P57 3623 AM
–
TSX P57 4823 AM
–
TSX P57
p
634
M
–
Modules
TSX ETY 4103
–
TSX ETC 101
–
TSX ETY 110WS
FactoryCast
TSX ETY 5103
FactoryCast
TSX WMY 100
FactoryCast
FactoryCast HMI
Modicon M340 platform Modules
BMX NOE 0100
–
BMX NOC 0401
–
BMX NOE 0110
FactoryCast
BMX NOR 0200H
FactoryCast
Modicon TSX Micro
platform
Modules
TSX ETZ 410
–
TSX ETZ 510
FactoryCast
Inductel identification station
XGK S1715503
–
FactoryCast Web Gateway
TSX ETG 10
p
0
FactoryCast
FactoryCast HMI Web Gateway
TSX ETG 30
pp
FactoryCast
FactoryCast HMI
(1)
For standard protocol providing interoperability with computer management applications, see
page 5/28.
