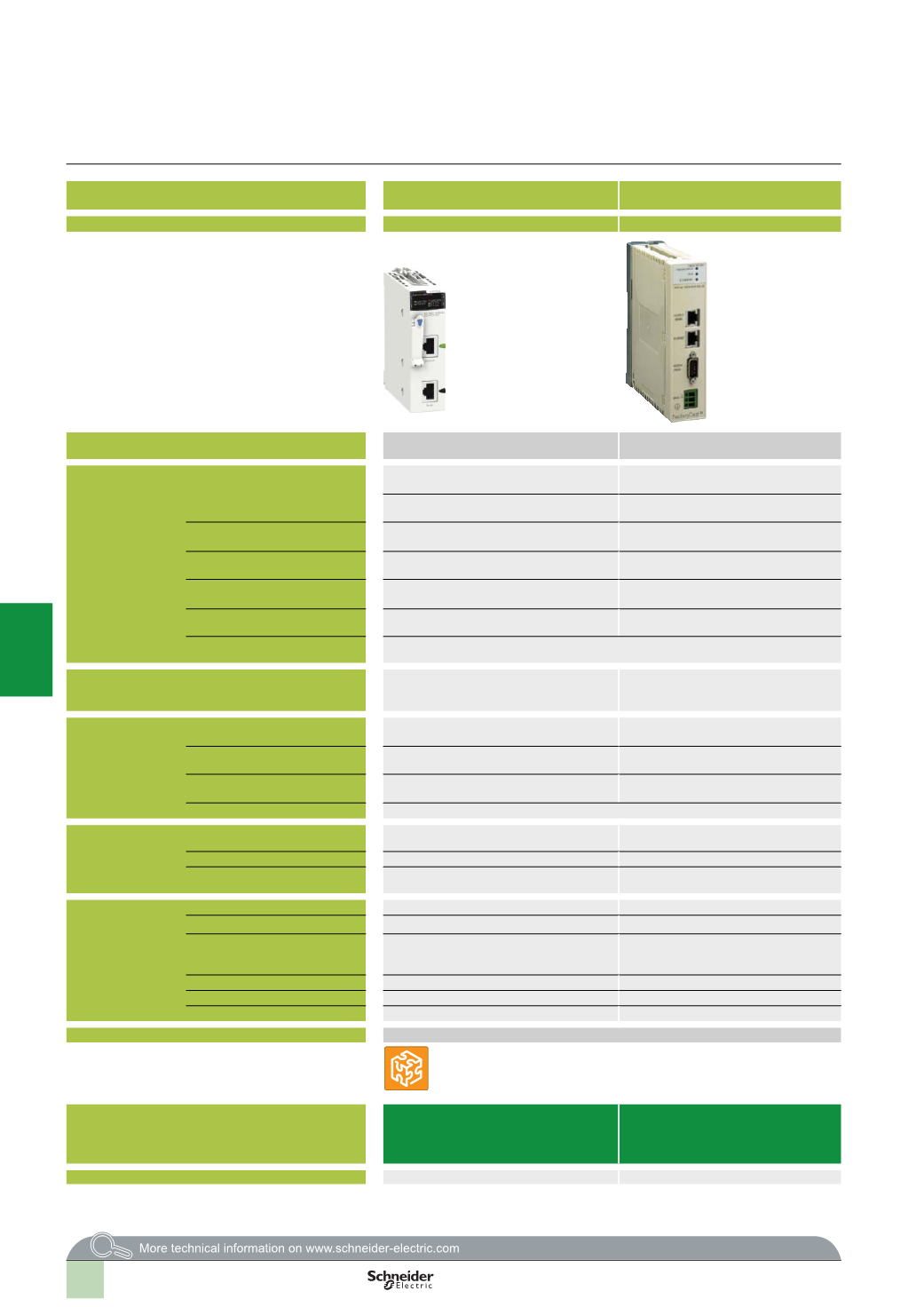

Applications
Modicon M340 in-rack Web Gateway/Server
module for remote access
Standalone Web Gateway/Server module
for remote access
Type
RTU module
FactoryCast Gateway ETG 10
p
0
Target products
Type
Modicon M340 RTU PLCs
SCADATelemetry supervisor
All equipment supporting Modbus
Network/Remote
access services
Remote access
TCP/IP, LAN/WAN, XdSL or Serial networks
(1)
RTC/PSTN, GPRS/3G, radio modems
Intranet or via external Modem and integrated
RAS function
Remote programming, downloading via FTP,
access to Web server via web browser
Gateway function
Ethernet Modbus/TCP to Serial or external
modem link
Ethernet to Modbus serial
Modem to Modbus serial and Ethernet
Serial protocols
RTU serial protocols:
IEC 60870-5-101 and DNP3 (subset level 3)
Modbus master
Ethernet protocols
Ethernet RTU protocols:
IEC 60870-5-104 and DNP3 (subset level 3)
Modbus/TCP
TCP/IP protocols
BootP/DHCP, DNS, SNMP agent, SMTP client,
NTP client, FTP
BootP/DHCP, DNS, SNMP agent, SMTP
client, client NTP
(2)
,
FTP
Security
Protection by IP address filtering and passwords
Web server
Characteristics
HTTP and FTP server for setting the RTU
protocol parameters, diagnostics and monitoring
HTTP and FTP server, 8 MB memory
available for user, hosting of user Web pages
and documents (Doc, Pdf, Excel)
Predefined services
Configuration
Via Web Designer software
Via Web Designer software
or predefined Web pages
Diagnostics
Rack Viewer PLC diagnostics
Serial device diagnostics
via predefined Web pages
Monitoring
Data editor access to PLC data and variables.
Display of Unity program in a Web page
Monitoring via animation tables
Display of Unity program in a Web page
Alarm management
–
Customizable
services
Graphic views
–
Graphic monitoring via animated views
(
integrated graphic editor)
Unity Pro operator screen
–
–
User Web pages
–
Graphic monitoring via animated Web pages
created by the user
Advanced and HMI
services
Calculation scripts
–
–
E-mail service
Alarm notification by e-mail or SMS
Alarm notification by e-mail
Data logging
Archiving of application data
Data Logging with time and date stamping
in the module's Flash memory card
–
Database connection
–
–
Report service
–
–
Recipe service
–
–
Application development software
Web Designer (supplied with each module)
References
BMX NOR 0200H
TSX ETG1000
Catalogue or website
Modicon M340 platform
www.schneider-electric.com(1)
The RTU module's serial port is not isolated. For an extended serial network (> 15 m), the network must be isolated, for example, using the
TWD XCA ISO
RS 485 isolation box (see page 5/125). For more information, please refer to the Modicon M340 platform catalogue.
WebDesigner
Selection guide
Modicon Premium automation
platform
Web servers and gateways
