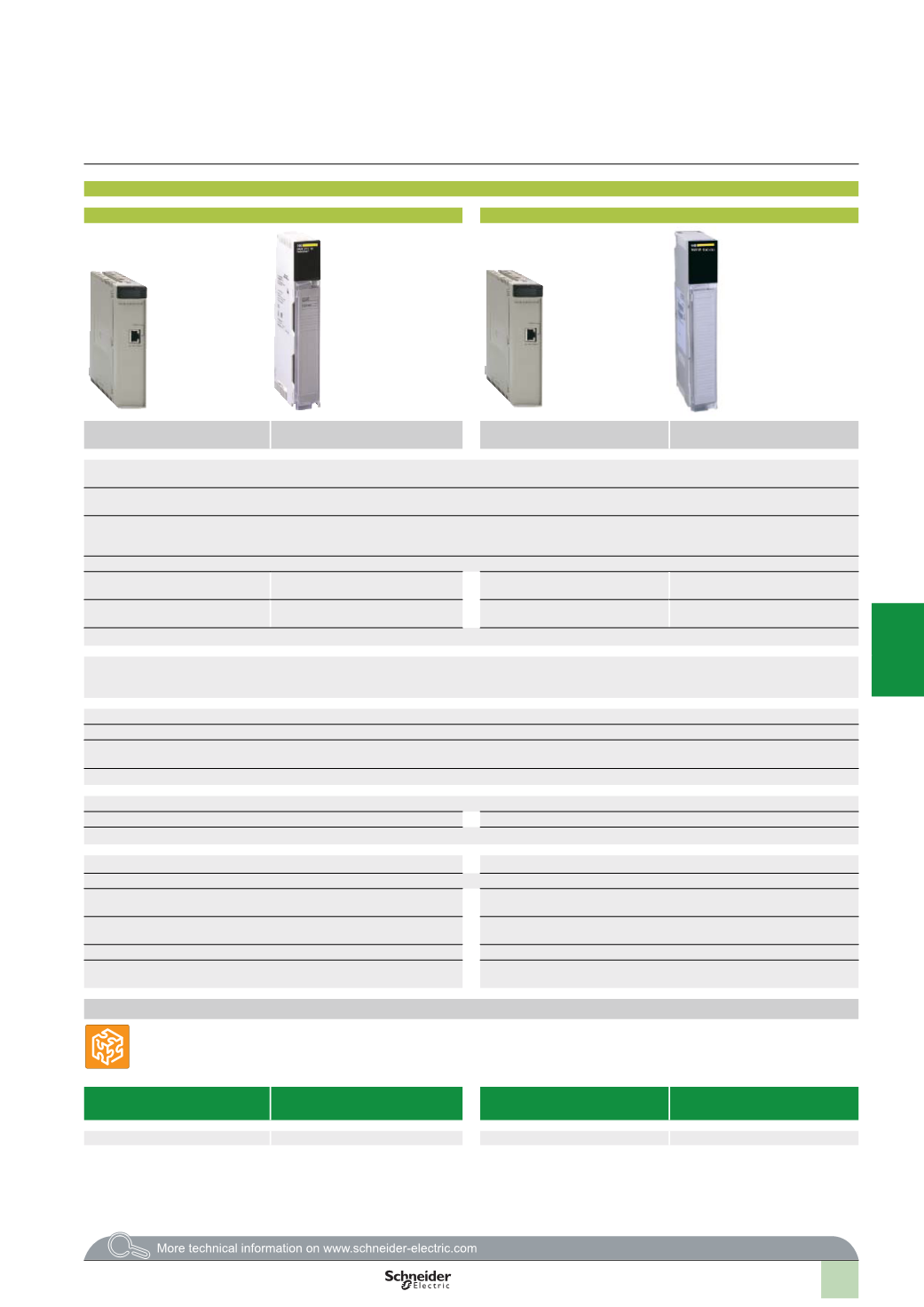

Web Server modules for PLCs
FactoryCast
FactoryCast HMI
Modicon Premium PLCs
Modicon Quantum PLCs
Modicon Premium PLCs
Modicon Quantum PLCs
Intranet or via external RAS/modem
Remote programming, downloading via FTP, access to Web server via web browser
–
–
Modbus/TCP, Uni-TE
Modbus/TCP
Modbus/TCP, Uni-TE
Modbus/TCP
BootP/DHCP, DNS, SNMP agent,
SMTP client, NTP client
(1)
,
FTP
BootP/DHCP, DNS, SNMP agent,
SMTP client, NTP client, FTP
BootP/DHCP, DNS, SNMP agent,
SMTP client, NTP client
(1)
,
FTP
BootP/DHCP, DNS, SNMP agent,
SMTP client, NTP client, FTP
Protection by IP address filtering and passwords
HTTP and FTP server, 8 MB memory available for user, hosting of user Web pages and documents (Doc, Pdf, Excel)
Via Web Designer software or predefined Web pages
System, rack and PLC I/O diagnostics via predefined Web pages
Monitoring of devices and application via animation tables (read/write variables)
Display of PLC Unity program in a Web page
Monitoring of PLC and application alarms via predefined Web pages
Graphic monitoring via animated views (integrated graphic editor)
–
Display in the form of Web pages
Graphic monitoring via animated Web pages created by the user
–
Arithmetic and logical scripts
Alarm notification by e-mail
–
Data recorded in the module with time stamping
–
Direct recording in an SQL, Oracle or MySQL server
–
Dynamic HTML report management
–
Management of “Recipe” data (storage and review locally or on remote
database)
Web Designer (supplied with each module)
TSX ETY 5103
140
NOE 77111
TSX WMY100
140
NWM 10000
5/47
Modicon Quantum platform
5/47
Modicon Quantum platform
(1)
Except with
TSX P57 103M/153M
processors which do not have the NTP service.
