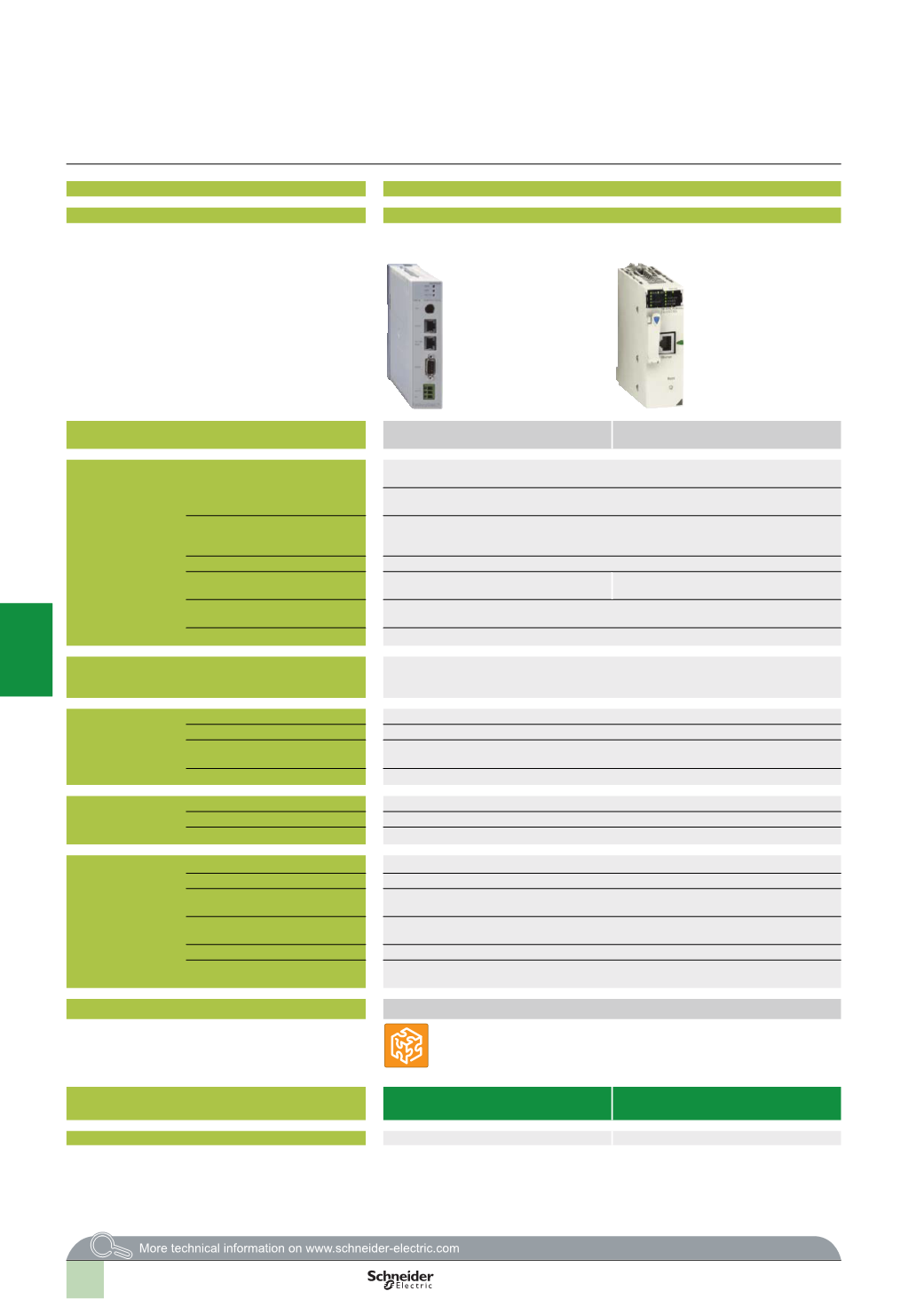

Selection guide
Applications
Web Server modules for PLCs
Type
FactoryCast
Target products
Type
TSX Micro PLCs
Modicon M340 PLCs
Network/Remote
access services
Remote access
Intranet or via external RAS/modem
Remote programming, downloading via FTP, access to Web server via web browser
Gateway function
–
Serial protocols
–
Ethernet protocols
Modbus/TCP, Uni-TE
Modbus/TCP
TCP/IP protocols
BootP/DHCP, DNS, SNMP agent, SMTP client, NTP client, FTP
Security
Protection by IP address filtering and passwords
Web server
Characteristics
HTTP and FTP server, 8 MB memory available for user, hosting of user Web pages and
documents (Doc, Pdf, Excel)
Predefined services
Configuration
Via Web Designer software or predefined Web pages
Diagnostics
System, rack and PLC I/O diagnostics via predefined Web pages
Monitoring
Monitoring of devices and application via animation tables (read/write variables)
Display of PLC Unity program in a Web page
Alarm management
Monitoring of PLC and application alarms via predefined Web pages
Customizable
services
Graphic views
Graphic monitoring via animated views (integrated graphic editor)
Unity Pro operator screen
–
User Web pages
Graphic monitoring via animated Web pages created by the user
Advanced and HMI
services
Calculation scripts
–
E-mail service
Alarm notification by e-mail
Data logging
–
Database connection
–
Report service
–
Recipe service
–
Application development software
Web Designer (supplied with each module)
References
TSX ETZ 510
BMX NOE 0110
Pages or catalogues
TSX Micro automation platform
Modicon M340 platform
Modicon Premium automation
platform
Web servers
WebDesigner
