Functions
Modicon PLC standard Web services
The predefined Rack Viewer PLC diagnostic function and the Data Editor read/write
function are supported by all Ethernet TCP/IP modules
(1)
in the following Modicon
automation platforms:
b
Modicon M340 platform
b
Modicon TSX Micro platform
b
Modicon Premium platform
b
Modicon Quantum platform
b
Modicon Momentum platform
(
See the selection of Web server products on page 5/17).
These functions can be accessed using a standard web browser connected to the
network. They are ready to use and secure (password-protected).
They can be used locally or remotely via:
b
Intranet
b
Amodem and RAS server
b
Internet
(1)
For standard Web servers integrated in variable speed drives, please consult our website
www.schneider-electric.com.
Internet
Firewall
Remote Web
clients
Thin Client PC
Web client
Premium
Quantum
Modicon M340
Thin Client Web client
Magelis
Smart
Intranet
Web
server
Web
server
Web
server

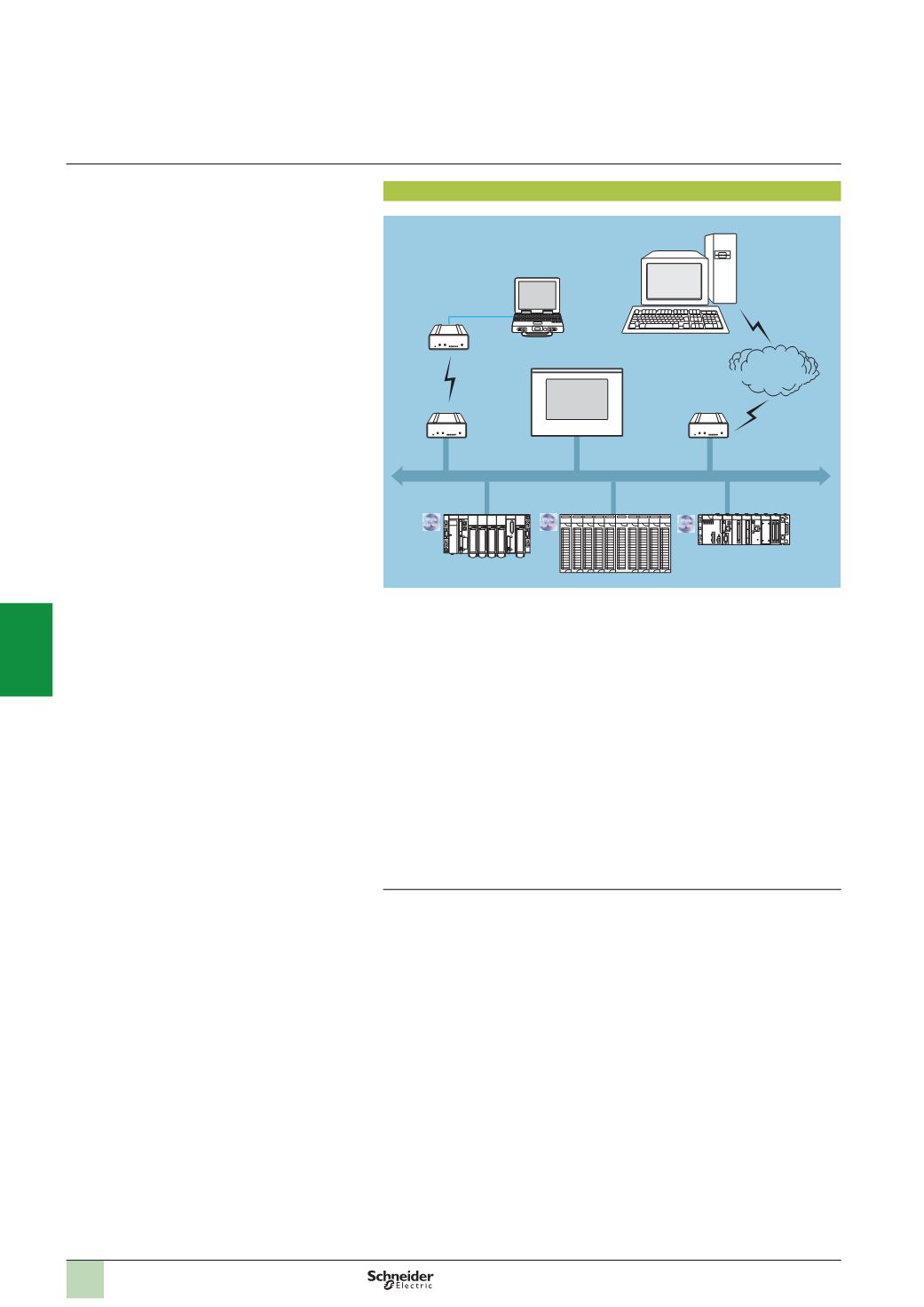

Modicon Premium automation
platform
Ethernet Modbus/TCP network
Modicon PLC standard Web services
