Architectures
(
continued)

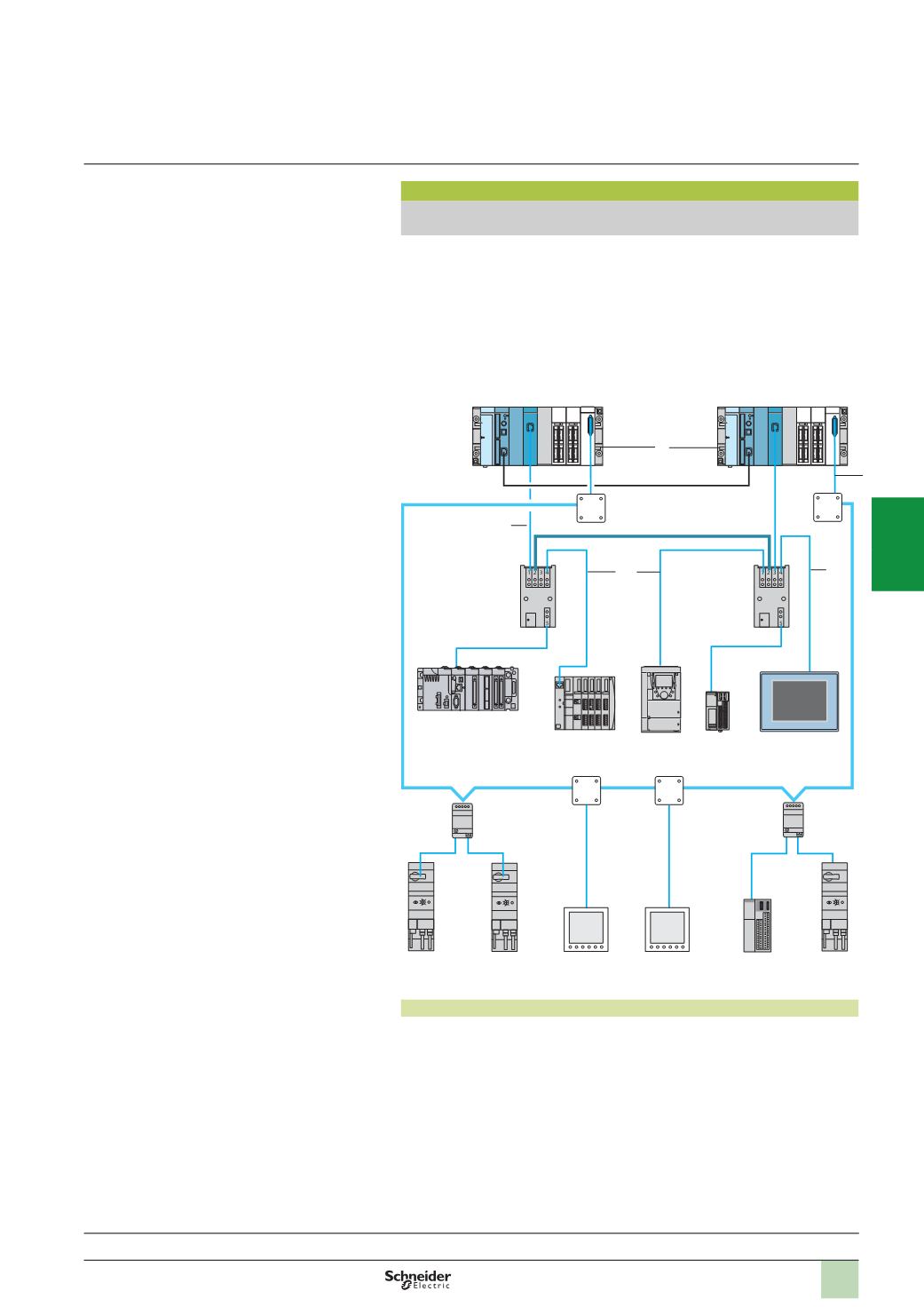

Architecture with shared products on Modbus and shared I/O on Ethernet
Modbus/TCP
In this type of architecture the Premium Hot Standby system products, peripherals
and devices are:
b
Shared on a Modbus/TCP Ethernet network (with a bus topology as in the
example below)
b
Shared on a Modbus link, thus allowing it to support the many varied peripherals
and devices (Schneider Electric or third-party) equipped with a slave Modbus interface
Like the previous architectures, it can take a SCADA supervision system on Ethernet
or Modbus.
Redundant I/O on Modbus
In this type of architecture, the peripherals and devices are shared via the Modbus
link on which the Premium Primary and Standby PLCs are masters, with the other
peripherals or devices connected on the Modbus link as slaves.
The Premium PLCs each have the
7
TSX SCY 11601
or
TSX SCY 21601
communication module with their isolated RS 485 integrated link (25-way SUB-D
connector).
The cable connector
31
TSX SCA 50
placed on each Premium Primary and Standby
PLC includes the line terminator. In addition, since the
TSX SCY 11601/21601
communication modules polarize the Modbus line, disconnection of a slave during
operation does not in any way disturb Modbus communication.
11
31
31
32
32
31
34
34
34
10
15
17
18
19
12
10
12
12
13
31
2 3 4-
M 7
3 4-
M
7
16
35
1
Primary
Premium
Standby
Premium
Ethernet Modbus/TCP
CPU Sync link
Modbus
Modbus
Modbus
Modicon M340
Modicon STB Altivar 61 Modicon
OTB
Magelis XBT GT
TeSys U
TeSys U Power Logic PM 500
TeSys U
Preventa
XPS MC
Architectures
(
continued)
Presentation:
page 4/52
Description:
page 4/53
Functions:
pages 4/58 ...
References:
pages 4/60 ...
Redundant components
1
Non-expandable rack with 6, 8 or 12 positions
TSX RKY
pp
(
single-rack configuration) or expandable with 4, 6, 8 or 12
positions
TSX RKY
pp
EX
(
multi-rack configuration)
2
Power supply module
TSX PSY
ppp
M
3
Hot Standby processor
TSX H57 24M/44M
4
Ethernet Modbus/TCP network module
TSX ETY 4103/5103
(
version
u
sv 4.0)
7
Communication module
TSX SCY 11601/21601
in which the
integrated channel is used as the Modbus master
Shared components on Modbus
,
for example
-
TeSys U starter-controllers
-
PowerLogic PM 500 MV/LV power meters
-
Preventa XPS MC safety controllers
Shared components on the Ethernet Modbus/TCP network
15
Modicon M340 automation platform with processor with
integrated Ethernet port
BMX P34 2020/2030
16
Modicon STB modular distributed I/O with network interface
module
STB NIP2212
17
Altivar 61/71 variable speed drive with communication card
VW3 A3 310
18
Optimum Modicon OTB distributed I/O, with interface
module
OTB 1E0 DM9LP
19
Magelis XBT GT graphic display terminal with embedded
Ethernet port
XBT GT
pp
30/40
Ethernet cabling components
10
ConneXium unmanaged switch with 5 ports
10
BASE-T/100BASE-TX
499
NES 251 00
11
CPU Sync link, copper crossover cable
490
NTC 000
ppp
12
Copper straight-through cable
490
NTW 000
ppp
13
Copper crossover cable
490
NTC 000
ppp
Modbus cabling components
31
Passive T-junction box
TSX SCA 50
,
connection via screw
terminal block with line terminator
32
T-junction box with line isolation
TWD XCA ISO
,
trunk cable
connected on screw terminals and the 2 taps on RJ45
connectors
34
RS 485 double shielded twisted pair trunk cable
TSX SCA
100/200/500
(100, 200
or 500 m long)
35
Drop cable for integrated channel
TSX SCY CM 6030
(3
m
long), 25-way SUB-D connector at one end and flying leads
at the other
Modicon Premium automation
platform
Hot Standby system
Unity Pro software
