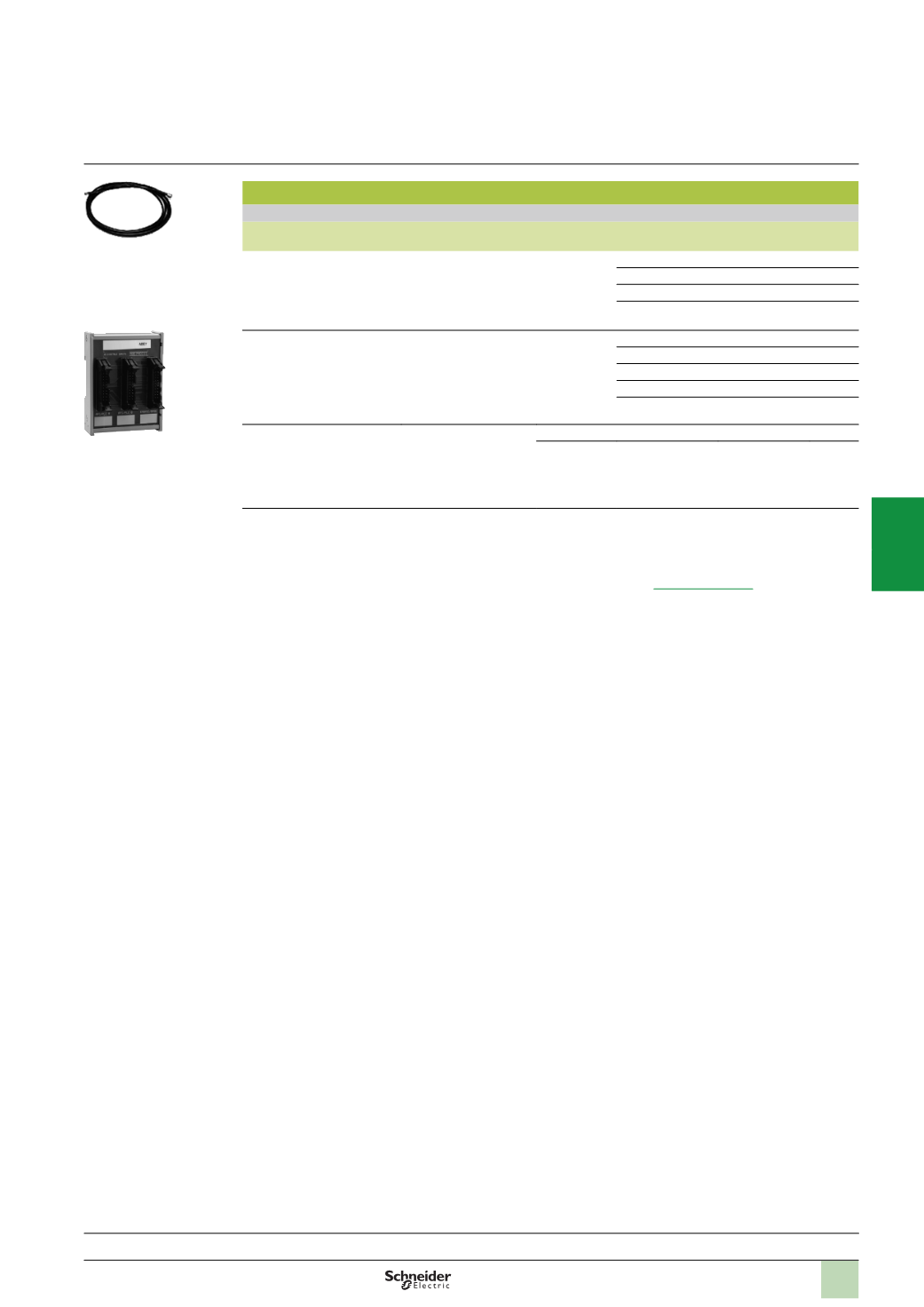

Schneider Electric Modicon Premium Automation Platform, May 2012

127 / 413

4/61
Modicon Premium automation
platform
Hot Standby system
Unity Pro software
References (continued)
Presentation:
page 4/52
Description:
page 4/53
Architectures:
pages 4/54 ...
Functions:
pages 4/58 ...
References (continued)
Separate connection components (1)
Designation
No.
Use/composition
(2)
Length Reference
(2)
Weight
kg
Crossover cables for
11 CPU Sync link
13 inter-switch link
Shielded twisted pairs conforming to
standard EIA/TIA 658
Equipped with 1 RJ45 connector at each end
5 m 490 NTC 000 05 –
15 m 490 NTC 000 15 –
40 m 490 NTC 000 40 –
80 m 490 NTC 000 80 –
Straight-through cables for
link between TSX ETY p103
Ethernet module and switch
12
Shielded twisted pairs conforming to
standard EIA/TIA 658
Equipped with 1 RJ45 connector at each end
2 m 490 NTW 000 02 –
5 m 490 NTW 000 05 –
12 m 490 NTW 000 12 –
40 m 490 NTW 000 40 –
80 m 490 NTW 000 80 –
Modicon Telefast ABE 7
redundancy sub-bases
21 (connected on 3 HE 10
connectors)
For in-rack redundant
discrete I/O (3)
16 channels in
2 x 16 channels
Input channels – ABE 7ACC11 0.075
Output
channels
– ABE 7ACC10 0.075
No. Refer to the architectures presented on pages 4/54 to 4/57.
(1) Other separate parts: ConneXium managed and unmanaged switches: see pages 5/52 ... ; Modicon Telefast ABE 7: see pages
8/8 and 8/9.
(2) For UL and CSA 22.1 approved crossover cables and straight-through cables with shielded twisted pairs, add U at the end of
the reference, for example 490 NTC/NTW 000 05U.
(3) For in-rack analog I/O, multiplexers24 supplied by JM Concept, please consult the website.
490 NTp 000 pp
ABE 7ACC10/11
