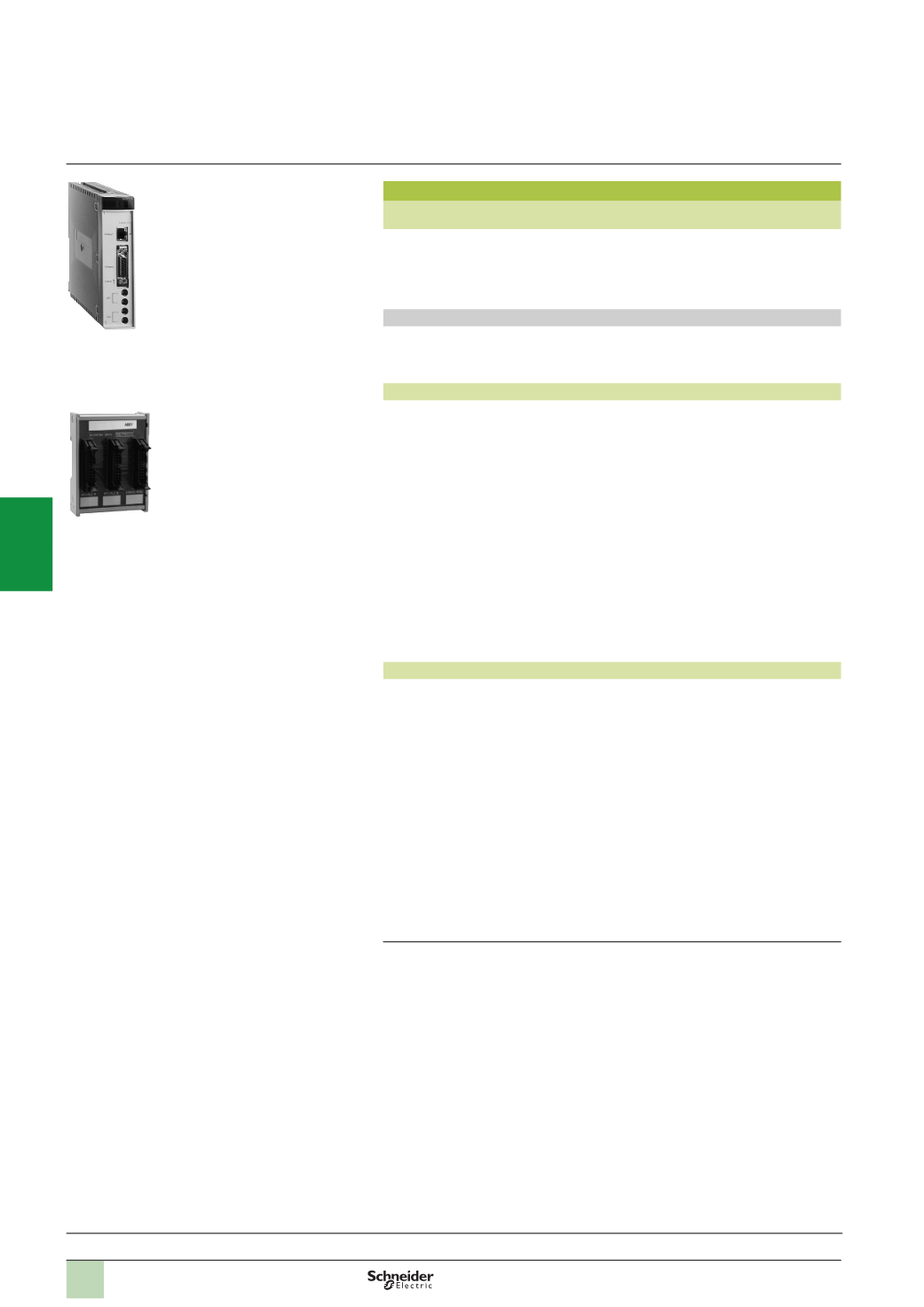

References
Description
Licence type
Reference
Weight
kg
Ethernet Modbus/TCP
communication module
for
Warm Standby redundant
architecture on Premium
Identical to those for the
TSX ETY 110WS module
(
see page 5/47)
(1)
.
TSX ETY 210
0.270
Additional compatible elements
TheWarmStandby architecture shown on page 4/63 includes the essential redundant
components. Compatible standard modules can be added to this minimum
configuration according to the requirements of the process to be automated.
Redundant components
(
in multiples of 2)
(2)
b
Bus X remote system:
v
TSX REY 200
Bus X remote module, for increasing the length of the Bus X to
2
x 350 m
b
Communication:
v
TSX ETY 210
Ethernet Modbus/TCP communication module, for communication
with level 3
v
TSX SCP 114
PCMCIAModbus communication card,
for Modbus slave
communication with transparent addressing for third-party devices. This card must
be inserted in the slot in the
TSX SCY 21601
communication module
b
Discrete I/O:
v
TSX DEY
pp
K
discrete input modules with HE 10 connectors with
ABE 7ACC11
Modicon Telefast redundant sub-bases
v
TSX DSY
pp
K
discrete output modules with HE 10 connectors with
ABE 7ACC10
Modicon Telefast redundant sub-bases
v
TSX DMY
pp
K
discrete mixed I/O modules with HE 10 connectors with
ABE 7ACC11
/
10
Modicon Telefast redundant sub-bases
Shared components on the Fipio bus
b
Modicon STB distributed I/O modules
v
STB NFP 2212
Fipio bus network interface module
v
STB DDI
/
DAI
/
DDO
/
DAO
/
DR
p
discrete I/O modules
v
STB AVI
/
ACI
/
ART
/
AVO
/
ACO
analog I/O modules
b
TSX EEF
/
ESF/EMF
IP 67 I/O modules
b
Momentum I/O modules:
v
170
FTN 110 01
Fipio communication module
v
170
ADI
/
ADO
/
ADM
discrete I/O base units
v
170
AAI
/
AAO
/
AMM
analog I/O base units
b
Fipio agent PLCs:
v
Premium PLC, can take all I/O and application-specific modules
v
TSX Micro PLC, can take all I/O and application-specific modules
b
Other shared components:
v
OZF FIP G3
fibre optic transmitter, can be used to create a Fipio bus fibre optic ring
v
TSX FPACC 6
Fipio electrical repeater, increases the length of the bus by the
creation of segments, each 1000 m maximum.
(1)
This module also provides the following for the Warm Standby architecture:
-
Transparent addressing during the changeover
-
Diagnostics of the architecture (self-tests, state of the Ethernet link and the dual
TSX ETY 210
module)
-
Maintenance with access to the Backup PLC
(2)
The
TSX AEY/ASY
analog I/O modules and the
TSX CTY/CCY/CAY/CSY/CFY/ISP Y
application-specific modules are non-redundant components. They can however be used as
shared components via the Fipio agent Premium PLCs.
ABE 7ACC10/11
References
Presentation:
page 4/62
Principle:
page 4/63
Functions:
pages 4/64 ...
Connections:
page 4/67
TSX ETY 210
Modicon Premium automation
platform
Warm Standby system
PL7 Pro software
