Connections

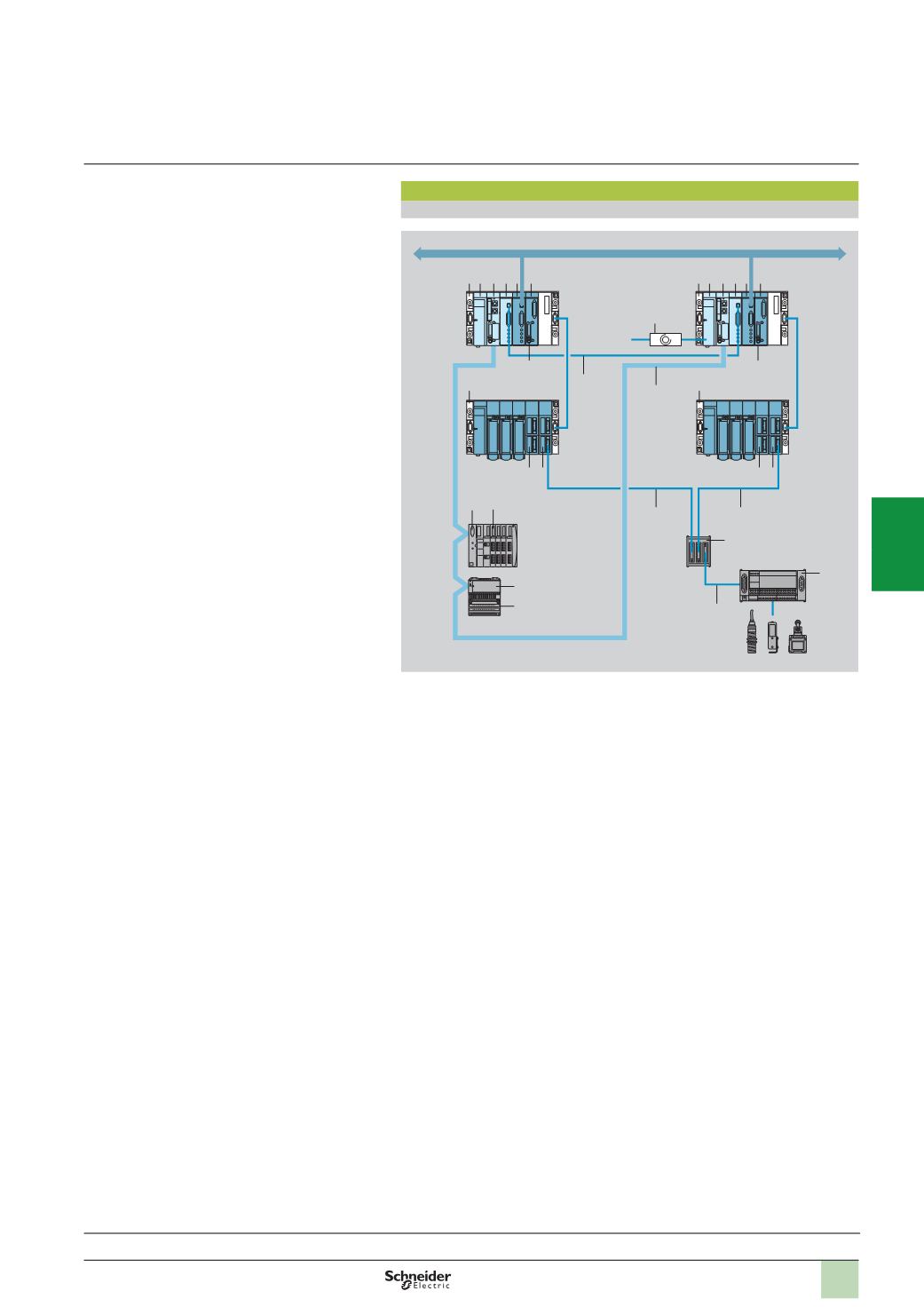

Example of an architecture with redundant I/O and shared I/O on Fipio bus
1
TSX RKY
p
EX
:
Premium extendable rack
2
TSX PSY
ppp
0
M
:
power supply module
3
TSX P57 353AM/453AM
:
Premium processor with integrated Fipio link
4
TSX ETY 110WS
:
Ethernet Modbus/TCP network module
5
TSX ETY 210
:
Ethway/Ethernet Modbus/TCP network module
6
TSX SCY 21601
:
communication module for type III PCMCIA card
7
TSX DSY
pp
K
:
redundant discrete output modules
8
TSX DEY
pp
K
:
redundant discrete input modules
9
STB NFP 2212
:
Fipio bus interface module with
TSX FPACC2
/
12
connector
(
polycarbonate/zamak)
10
STB D
p
I
/
D
p
O
/
DR
p
/
A
p
I
/
A
p
O
:
Advantys STB discrete or analog I/O modules
12
170
FNT 110 00
:
Fipio communication module for Momentum base unit with
TSX FPACC2
/
12
connector (polycarbonate/zamak)
13
170
ADI/AAI/ADM
ppp
:
Momentum discrete or analog I/O base unit
14
ABE 7ACC11/10
:
Modicon Telefast ABE 7 redundant sub-bases for discrete I/O
15
ABE 7
p
16
ppp
:
Modicon Telefast ABE 7 connection sub-bases
16
LA4 DT2U
:
time-delay relay designed to desynchronize the starting of the Normal
PLC and the Backup PLC during simultaneous power-up
17
TSX SCP 114
:
type III PCMCIA card for Modbus slave communication
18
490
NTC 000
pp
:
preformed connection cable (crossed shielded twisted pair) with
RJ 45 connector, for interconnecting
TSX ETY 110WS
modules
19
TSX FP CA
p
00
:
Fipio bus trunk cable (shielded twisted pair)
20
TSX CDP
p
53
:
preformed connection cable with HE 10 connector (length 0.5, 1, 2,
3,
or 5 m)
21
ABF H20H008
:
preformed connection cable with HE 10 connector (length 0.08 m)
1
12
13
9 10
1
2 3 4
17
18
19
20
20
21
17
5 6
1
16
2 3 4 5 6
7 8
1
7 8
14
15
