Schneider Electric Modicon Premium Automation Platform, May 2012

136 / 413

5/2

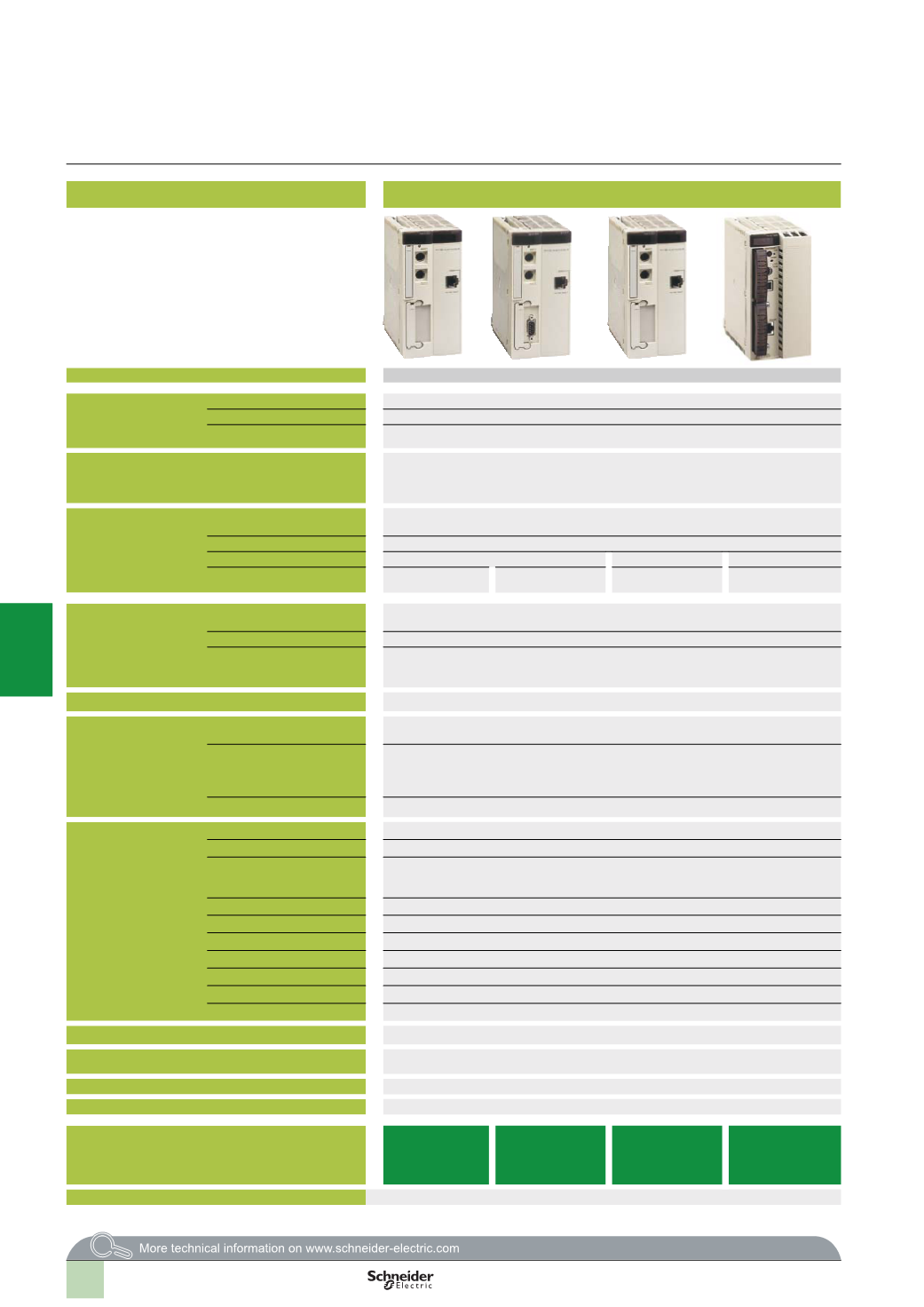

Selection guide Modicon Premium automation
platform
Ethernet network processors and modules
Transparent Ready
Applications Processors with integrated Ethernet Modbus/TCP port
Type Ethernet Modbus/TCP
Structure Physical interface 10BASE-T/100BASE-TX (RJ45)
Access method CSMA-CD
Data rate 10/100 Mbps
Medium CAT 5E double twisted pair cable
Fibre optic via Ethernet ConneXium cabling system
Configuration Maximum number of devices 64 stations maximum per network
128 stations maximum per network with TSX P57 5634M/6634M processors
Maximum length 100 m (copper cable), 4000 m (multimode optical fibre), 32,500 m (single mode optical fibre)
Number of networks/station 1 integrated Ethernet port 3 (1) 4 (1)
Other integrated port – Fipio bus
(bus manager)
– Fipio bus
(bus manager)
Standard services Ethernet services Modbus/TCP and Uni-TE message handling
X-Way services X-Way inter-network routing, X-Way/Uni-Telway routing, module diagnostics
Ethway –
Transparent Ready class B30
Embedded Web server
services
Standard services Rack Viewer PLC diagnostics
Data Editor access to PLC data and variables
FactoryCast services –
Factory Cast HMI services –
Transparent Ready
communication services
I/O Scanning Yes (64 stations, 128 stations with TSX P57 5634M/6634M)
Global Data Yes
FDR server Yes (automatic assignment of IP address and network parameters)
NTP time synchronization –
SMTP e-mail notification Yes (via Unity Pro function blocks)
SNMP network manager Yes
SOAP/XMLWeb –
TCP Open –
Bandwidth management Yes
Quality of Service (QoS) –
Compatible processors –
Module format Double format processor
Consumption See page 9/6
Standards and certifications See pages 9/8 to 9/18
Module type TSXP57 1634M
TSXP57 2623M
TSXP57 2634M
TSXP57 2823M TSXP57 3623AM
TSXP57 3634M
TSXP57 4823AM
TSXP57 4634M
TSXP57 5634M
TSXP57 6634M
Pages 5/46
(1) Including the integrated Ethernet port.
