Functional units
Presentation
Presentation
A rigid modular rail
Made using an aluminium alloy, the rail design is extremely rigid. The rail supports
are crimp mounted.
Fast mounting
The rail supports have positioning studs to guide the rail on the framework.
Only two mounting screws are required.
Multiple functions
A number of devices clip directly onto the rails, including 80 A and 200 AMulticlip
distribution blocks, all horizontal cable-running accessories such as cable straps and
trunking supports, as well as the supports for earth bars.
What is more, for cable running to the terminal block at the top or bottom of the
cubicle, the supports are designed to allow the passage to two vertical trunking
sections on the left and right.
Supply from all directions
Supply to the rows, using comb busbars or Multiclip distribution blocks, can be via:
flat or Powerclip insulated busbars installed behind the devices
flat or Linergy busbars installed in a busbar compartment.
Distribution
80 and 200 AMulticlip distribution blocks
fast and secure front connection using spring terminals
reliable connections, will not loosen over time, insensitive to vibrations and thermal
variations
all types of modular devices can be mixed
easy balancing of phases
interchangeable devices
easy installation upgrades
fully insulated (IPxxB).
Comb busbars
direct connection to device terminals or via a connector
fully insulated
can be cut to length.
Cable running
Straps
easy and fast to install
low cost
perfectly organised and integrated cable running
professional finish.
Trunking
traditional solution.
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
PD390414

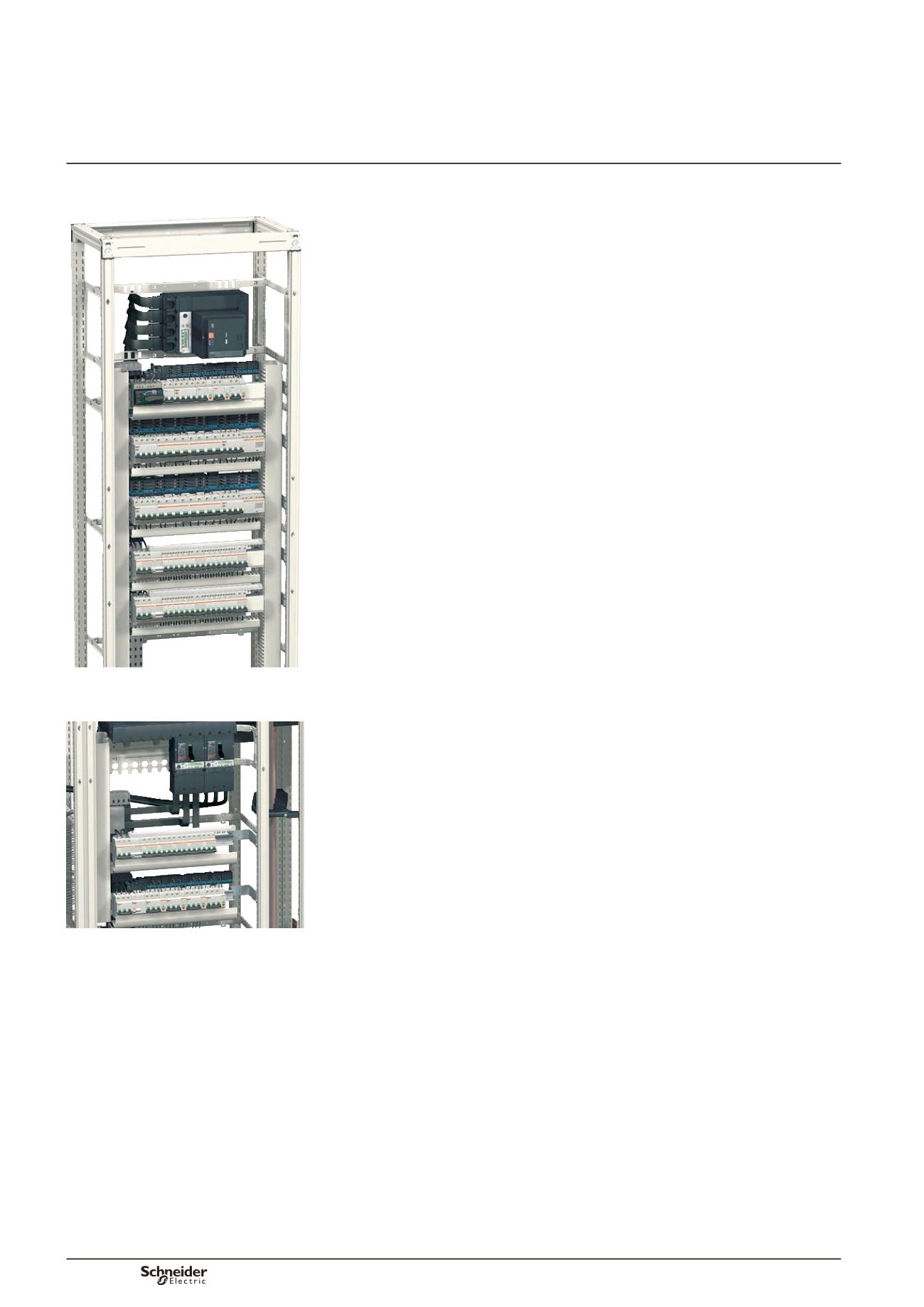

Compact NSX400 with motor mechanism, supplying rows of
Multi 9 devices via Powerclip insulated busbars.
PD395100
Modular devices
Multi 9
NG160, NG125, C120 circuit breakers
INS40/160 switch-disconnectors
Circuit breakers
