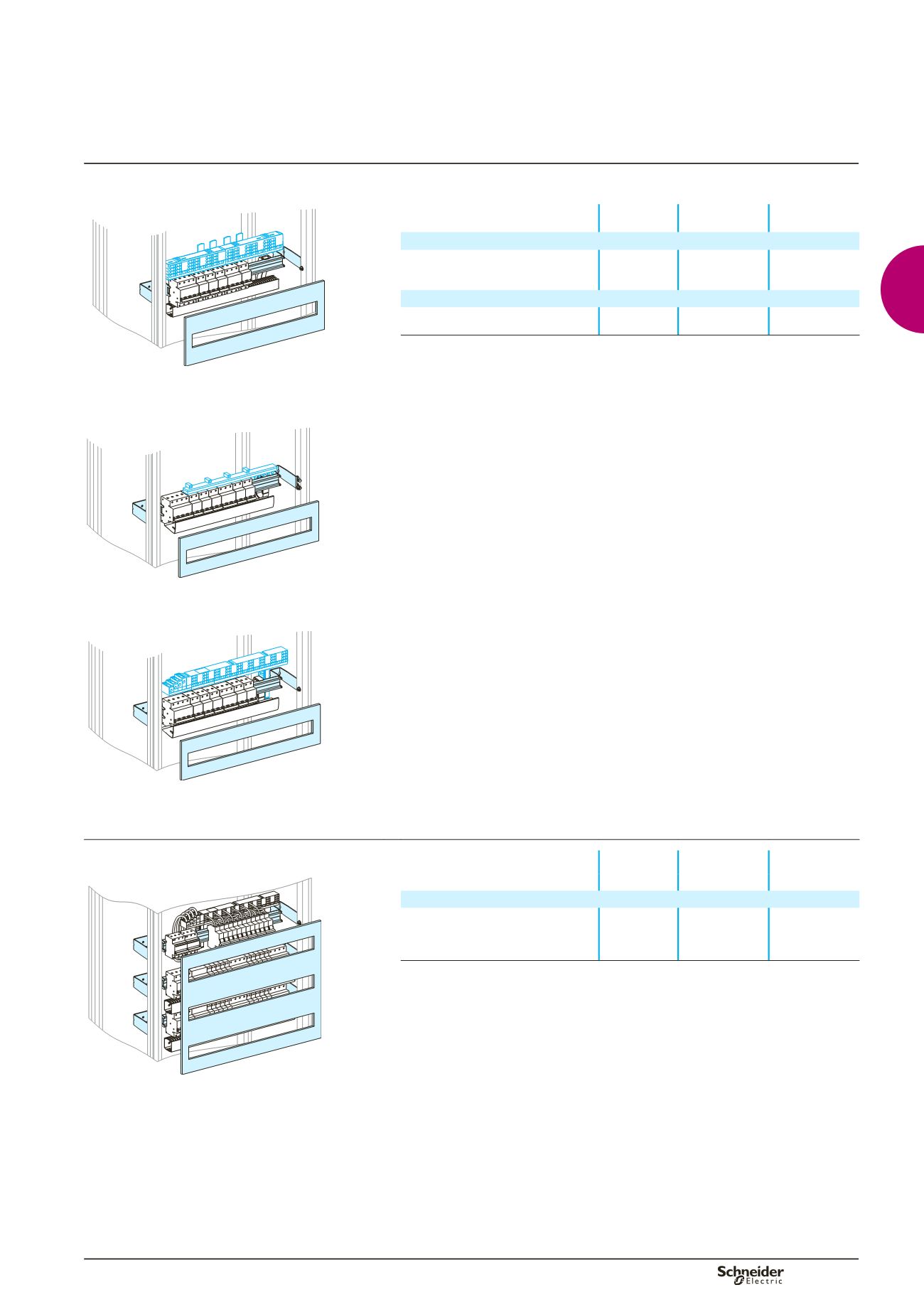

A-35
Functional units
Multi 9 devices
DD380771
Device
No. of vertical
modules
Modular rail
Modular front
plate
All Multi 9 devices
All supply systems (comb busbars,
Multiclip) with cable straps and trunking
sections
4
03401
03204
Multi 9 devices
y
40 A
Connection via 63/80 AMulticlip or comb
busbars with cable straps
3
03401
03203
Capacity of modular rail: 48 x M9 modules.
Note:
For a modular row with a 160 A (half row) and 200 AMulticlip distribution block positioned
directly below a non-modular mounting plate (Compact, Interpact, etc ), or at the top of a
switchboard: add one module (i.e. 4 + 1) and a plain upstream front plate (03801)
.
200 AMulticlip.
Cable running: trunking.
Mounting requires 4 vertical modules.
DD380772
Comb busbars.
Cable running: cable straps.
Mounting requires 3 vertical modules.
DD381305
80 AMulticlip.
Cable running: cable straps.
Mounting requires 3 vertical modules.
3 rows of Multi 9 device
Device
No. of vertical
modules
Modular rail
Modular front
plate
3 rows
DD382443
Designation
3 rows of Multi 9 devices
y
40 A supply
via comb busbars or Multiclip distribution
blocks (63/80 A)
Cable running using cables straps
8
03401 x 3
03223
Capacity of modular rail: 48 x M9 modules.
Modular devices
Multi 9
y
63 A
Circuit breakers
