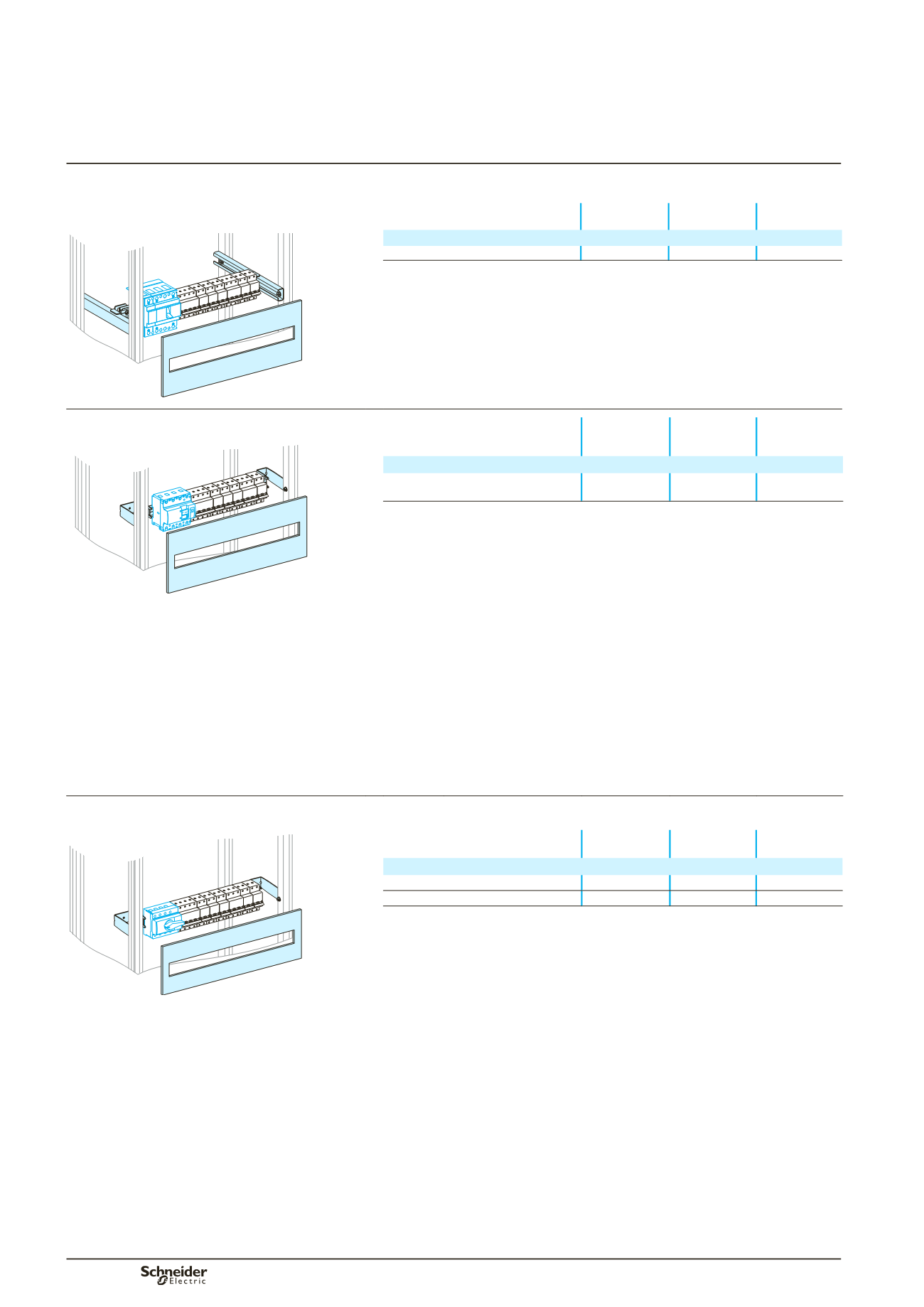

A-36
Functional units
NG160 circuit breaker
Device
No. of vertical
modules
Modular rail
adjustable
(1)
Modular front
plate
DD380769
NG160 circuit breaker
NG160, Vigi NG160
5
03402 + 04227 03205
(1)
To add modular devices to the row, order a raised DIN rail (04227).
Capacity of modular rail: 48 x M9 modules.
Width of NG160 circuit breakers:
NG160 3P : 10 x M9 modules
NG160 4P : 14 x M9 modules
Vigi NG160 3P : 24 x M9 modules
Vigi NG160 4P : 27 x M9 modules
NG125, C120 circuit breaker
Device
No. of vertical
modules
Modular rail
Modular front
plate
DD382416
NG125, C120 circuit breaker
NG125, Vigi NG125
C120, Vigi C120
5
03401
03205
Direct supply via cables.
Capacity of modular rail: 48 x M9 modules.
Note:
width of NG125 circuit breakers: NG125 3P: 9 x M9 modules
NG125 4P: 12 x M9 modules
Vigi NG125 3P
y
63 A: fixed sensitivity 18 x M9 modules
adjustable sensitivity 20 x M9
modules
> 63 A: fixed sensitivity 20 x M9 modules
adjustable sensitivity 20 x M9
modules
Vigi NG125 4P
y
63 A: fixed sensitivity 21 x M9 modules
adjustable sensitivity 23 x M9
modules
> 63 A: fixed sensitivity 23 x M9 modules
adjustable sensitivity 23 x M9
modules
C120 3P: 9 x M9 modules
C120 4P: 12 x M9 modules
Vigi C120 3P: 19 x M9 modules
Vigi C120 4P: 22 x M9 modules
INS switch-disconnector
DD380770
Device
No. of vertical
modules
Modular rail
Modular front
plate
INS160
INS40/160
4
03401
03204
INS100/160 with long terminal shields 5
03401
03205
Direct supply via cables.
Capacity of modular rail: 48 Multi 9 modules.
Note:
width of devices: INS40/80: width 10 x M9 modules
INS100/160: width 15 x M9 modules
Modular devices
80/160 A
NG160, NG125, C120 circuit breakers
INS40/160 switch-disconnectors
Circuit breakers
