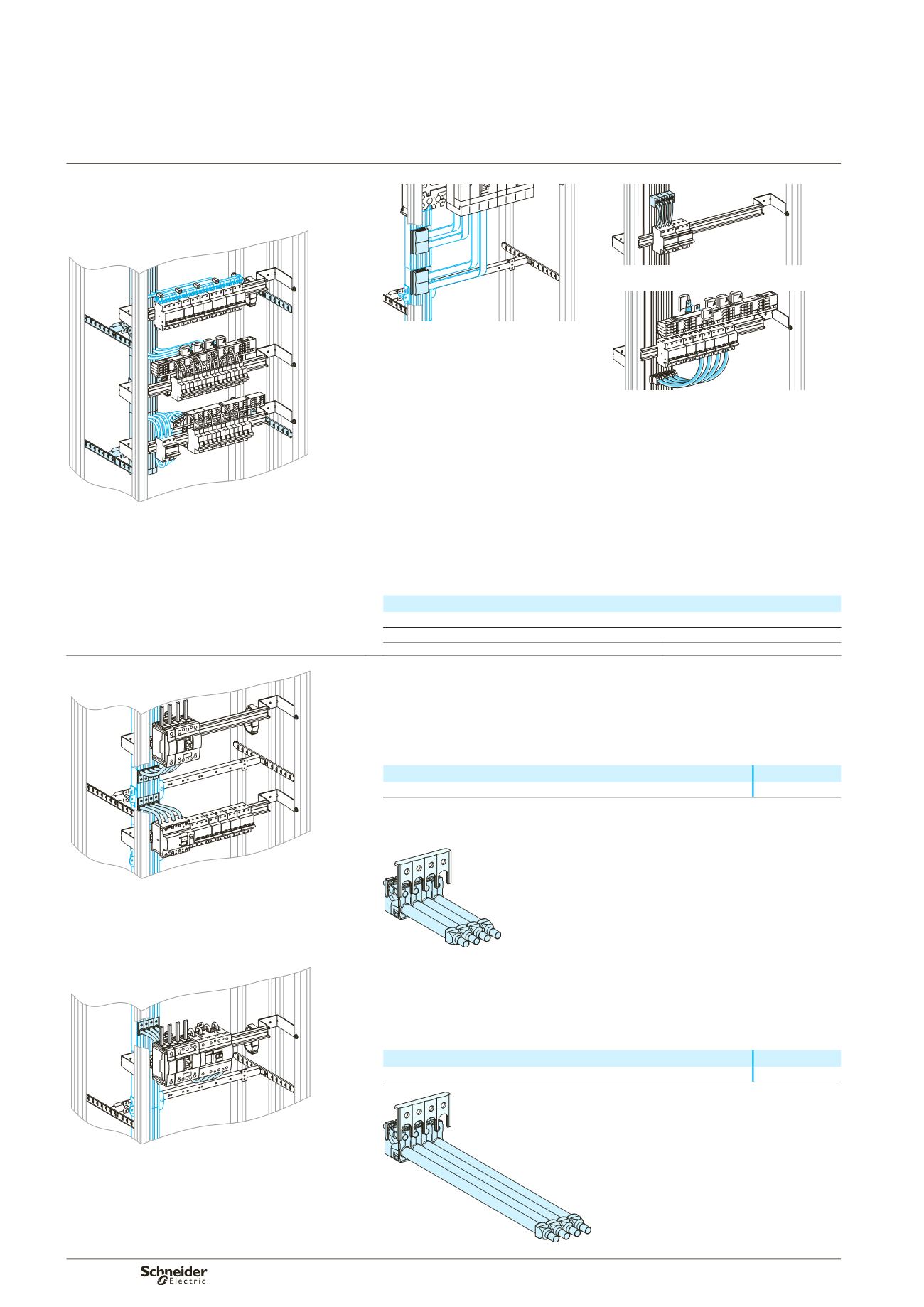

90 / 356
A-38
Modular devices
Powerclip busbars
Connections
Functional units
Distribution via Powerclip
busbars
DD381160
DD381161
DD381306
Powerclip tap-off blocks.
DD381162
Universal power supply block for the
Powerclip insulated busbars.
200 AMulticlip connection (04021).
Presentation
The Powerclip insulated busbars are mounted using a System G adapter (03595)
made up of four lateral cross-members and two longitudinal cross-members.
The busbars can be positioned at precisely the desired spot, to the left (preferably),
in the middle or to the right of the row of devices.
The depth adjustment of the longitudinal cross-members facilitates connections for
all types of devices (fixed/withdrawable, toggle/rotary handle/motor mechanism,
etc.).
For busbars:
y
800 mm long, order one System G adapter (03595)
> 800 mm long, order two System G adapters
(03595 x 2).
Cat. no. selection
b
b
Designation
Powerclip insulated busbars
see page B-40
System G adapter, W= 500 mm (03595)
see page A-79
DD383289
One-piece device/Powerclip connection
Respects the degree of protection IpxxB on both busbar and device ends.
Neutral is clearly indicated (blue).
NG160 incoming device (located on left-hand side), NG125, INS160, C120
One-piece 3/4 P fast connection to busbars, equipped with male fittings one end for
tunnel terminals .
Designation
Cat. no.
One-piece connection, 160A, L = 150 mm
04147
Amulti-purpose connection for:
Supply to Powerclip busbars from a switchboard incomer
Supply to a row incomer from Powerclip busbars.
b
DD383274
DD383290
NG160 Vigi incoming device (located on left-hand side)
NG160 (without Vigi) incoming device (located in the middle)
NG125, INS160, C120
One-piece 3/4 P fast connection to busbars, equipped with male fittings one end for
tunnel terminals .
Designation
Cat. no.
One-piece connection, 160A, L = 440 mm
04148
DD383276
Circuit breakers
