Manual source-changeover
systems
Compact NS630b/1600
Masterpact, NT06/16, NW08/32
Functional units
Compact NS630b/1600
Masterpact NT06/16, NW08/32

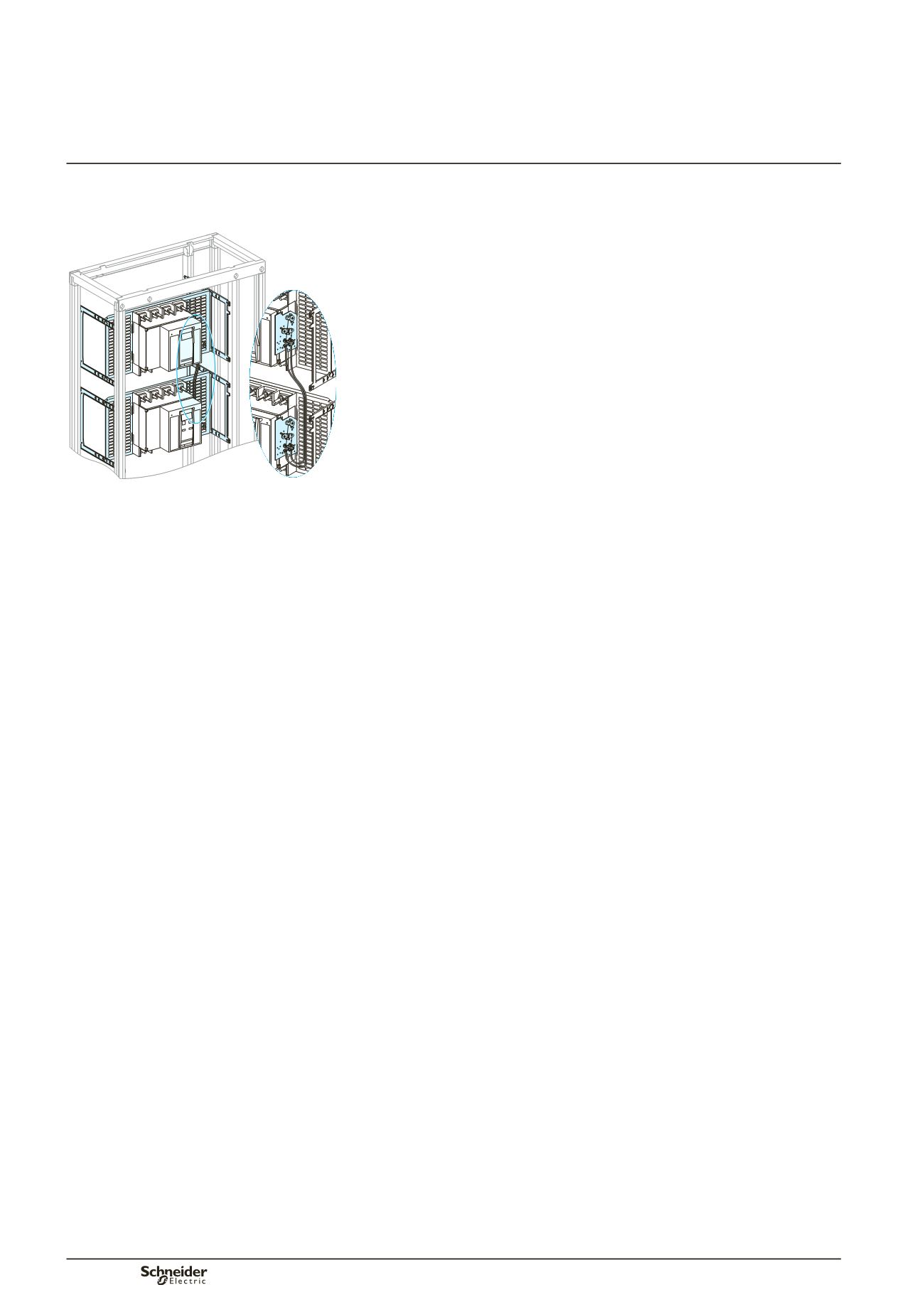

Source-changeover system with 2 devices one above the other
or side-by-side in two combined cubicles
these configurations correspond to two standard incoming devices in terms of:
selection of functional units
number of modules
To determine the number of modules required for installation of two devices one on
top of another, add the number of modules required for each.
incoming and busbar connection
partitions and covers
Devices mounted vertically
type of interlocking:
mechanical interlocking using cables
interlocking of rotary handles (for NS630b/1600 only)
For possible combinations and details concerning installation, see the catalogue
dedicated to Compact, Interpact and Masterpact source-changeover systems
(ref. ART 29770).
Compact NS630b/1600
See page A-14.
Masterpact NT06/16
See page A-9.
Masterpact NW08/32
See page A-4
All combinations of Masterpact NT and NW fixed and drawout devices are
possible.
b
v
v
v
v
b
v
v
