Modular devices
Rear busbars
Functional units
Distribution via rear busbars
Installation
Solution 1

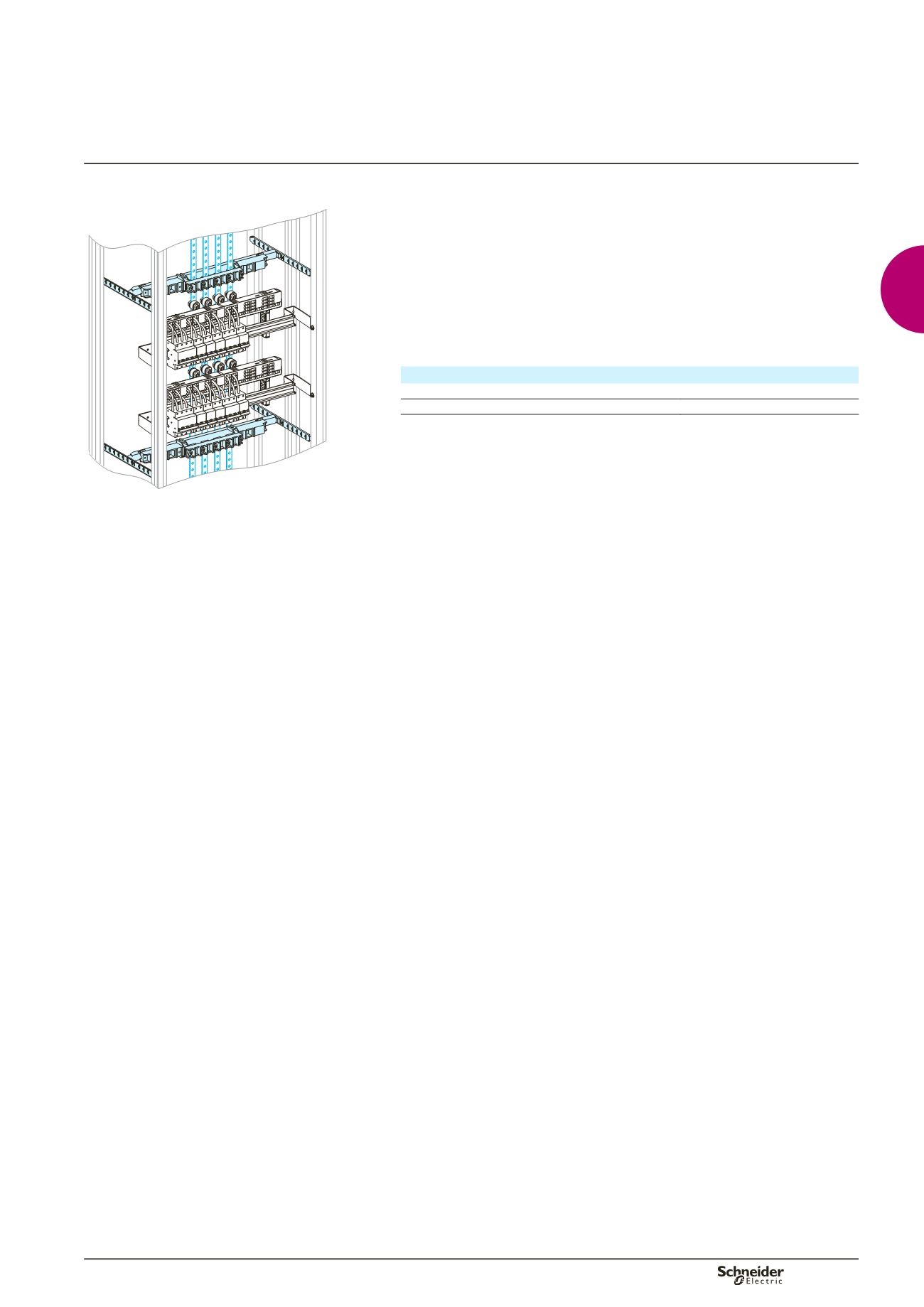

The rear flat busbars are mounted using a System G adapter (03595) made up of
four lateral cross-members and two longitudinal cross-members.
The depth adjustment of the longitudinal cross-members facilitates connections for
all types of devices (fixed/withdrawable, toggle/rotary handle/motor mechanism,
etc.).
The number of adapters that must be ordered depends on the required number of
supports.
Solution 2
The support for the busbars clips to the rear of the modular rail.
Cat. no. selection
DD381163
Designation
Rear busbars
see page B-43
System G adapter, L = 500 mm
(03595)
see page A-79
Circuit breakers
