Additional informations

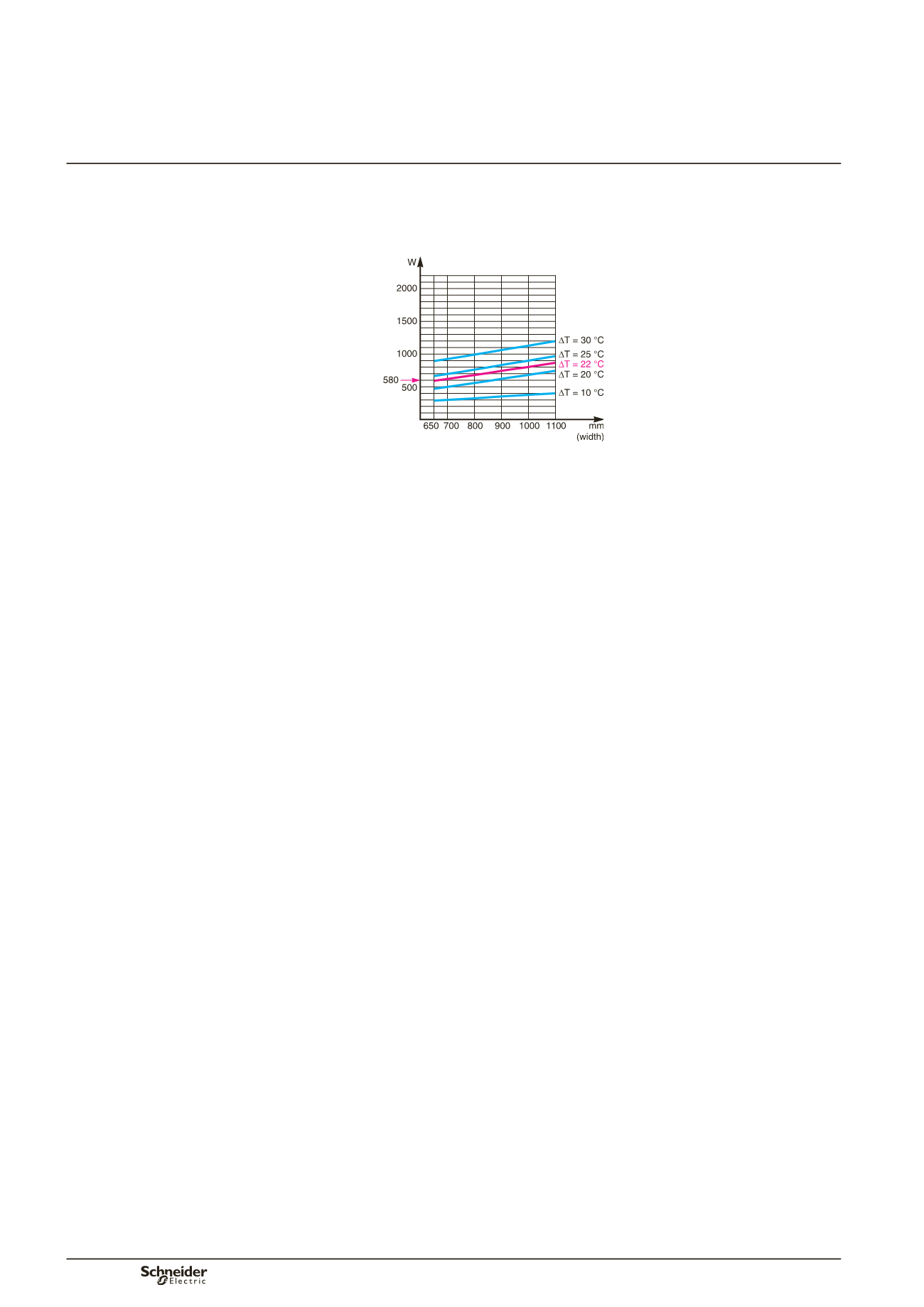

Once the dissipated power of the devices has been determined and the enclosure
with its IP selected, transfer the results (sum of the dissipated power and width of the
device zone) to the chart corresponding to the enclosure IP.
DD382423
Draw a line parallel to the others on the chart and read the corresponding difference
in temperature.
For the given example, the heat rise is 22 °C at mid-height in the enclosure.
The internal temperature = external temperature + heat rise
= 35 °C + 22 °C = 57 °C
57 °C < 60 °C stipulated by the standard, i.e. the result is acceptable for an IP3
cubicle.
This gives roughly:
Internal temperature = 60 °C at mid-height in the enclosure for a low IP value.
Internal temperature = 70 °C at mid-height in the enclosure for a high IP value.
Thermal management
of switchboards
Example
Thermal characteristics of
switchboards
