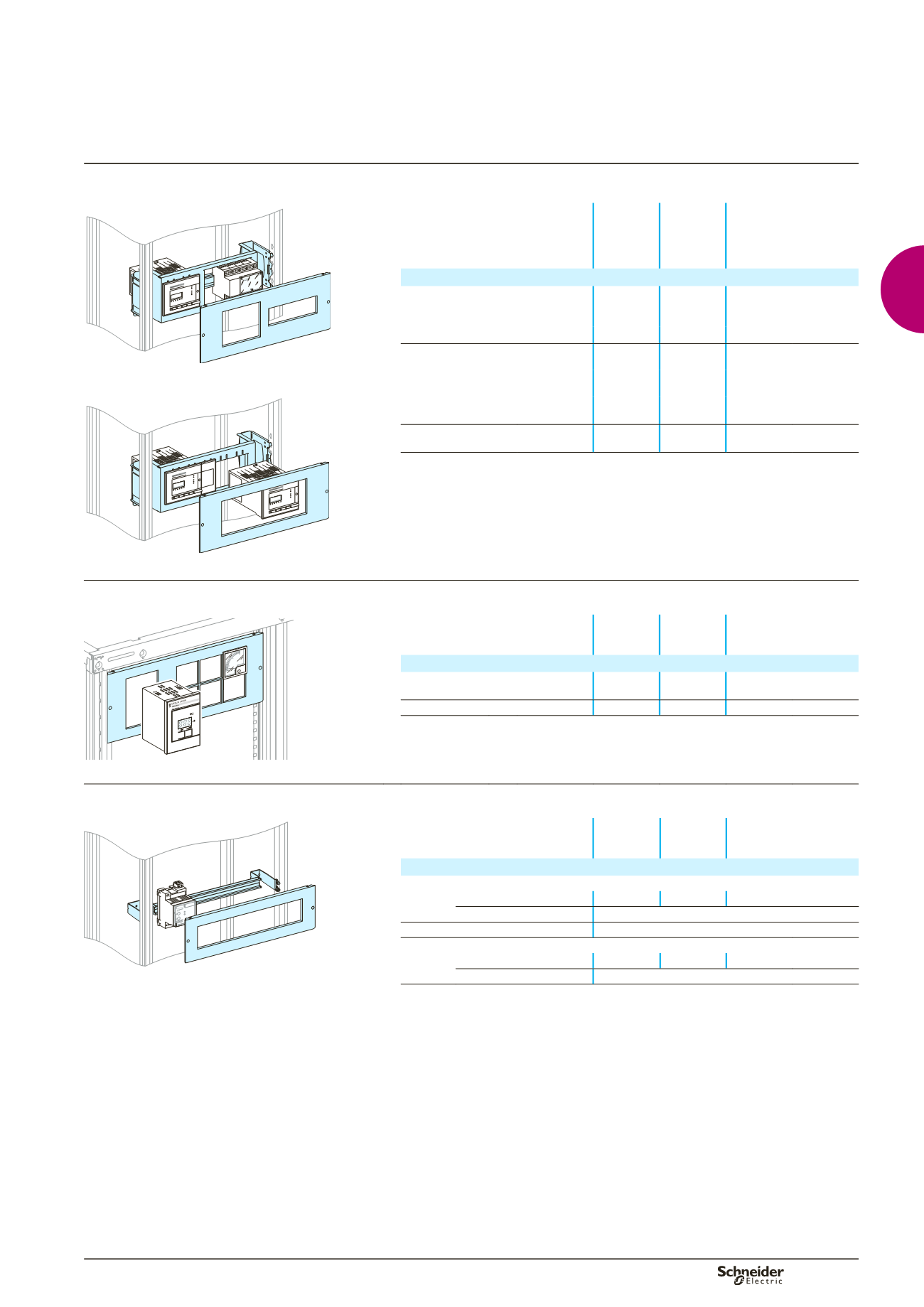

Functional units
Vigilohm system
Installation
in the device compartment.
DD381754
M
G
Device
No. of
vertical
modules
Mounting
plate
Cut-out
front plate
Vigilohm
XM200 or
XM300C
with 3 XD301
or with 2 XD312
or with XD301 +
XD312
6
03930
03932
XML308/316 or XM300C
4
03931
03933
03930 + 03932.
with two interfaces
XLI300
or XTU300
or XAS
or XD308C
DD381698
XML308/316 or
XM300C
with XL308
or with XL316
4
03931
03933
03931 + 03933.
Vigilohm
Installation
in the device compartment.
DD381699
Device
No. of
vertical
modules
Modular rail Cut-out
front plate
Vigilohm
TR22A/AH (1 TR + 6 measurement
devices, 72 x 72 mm)
4
03934
EM9, TR5A, SM21 (modular devices)
3
03401
03203
03934.
Vigirex
Installation
in the device compartment.
DD381720
Device
No. of
vertical
modules
Modular rail Cut-out
front plate
Vigirex
RH10/RH21/RH99 relays
Modular device
3
03401
03203
72 x 72 mm cases
see page A-69
RHU relay
(72 x 72 mm cases)
see page A-69
RMH relay and RM12T multiplexer
RMH (modular devices)
3
03401
03203
RM12T (72 x 72 mm cases)
see page A-69
A
60
40
0
V
HM
T
Human-switchboard interface
Others
