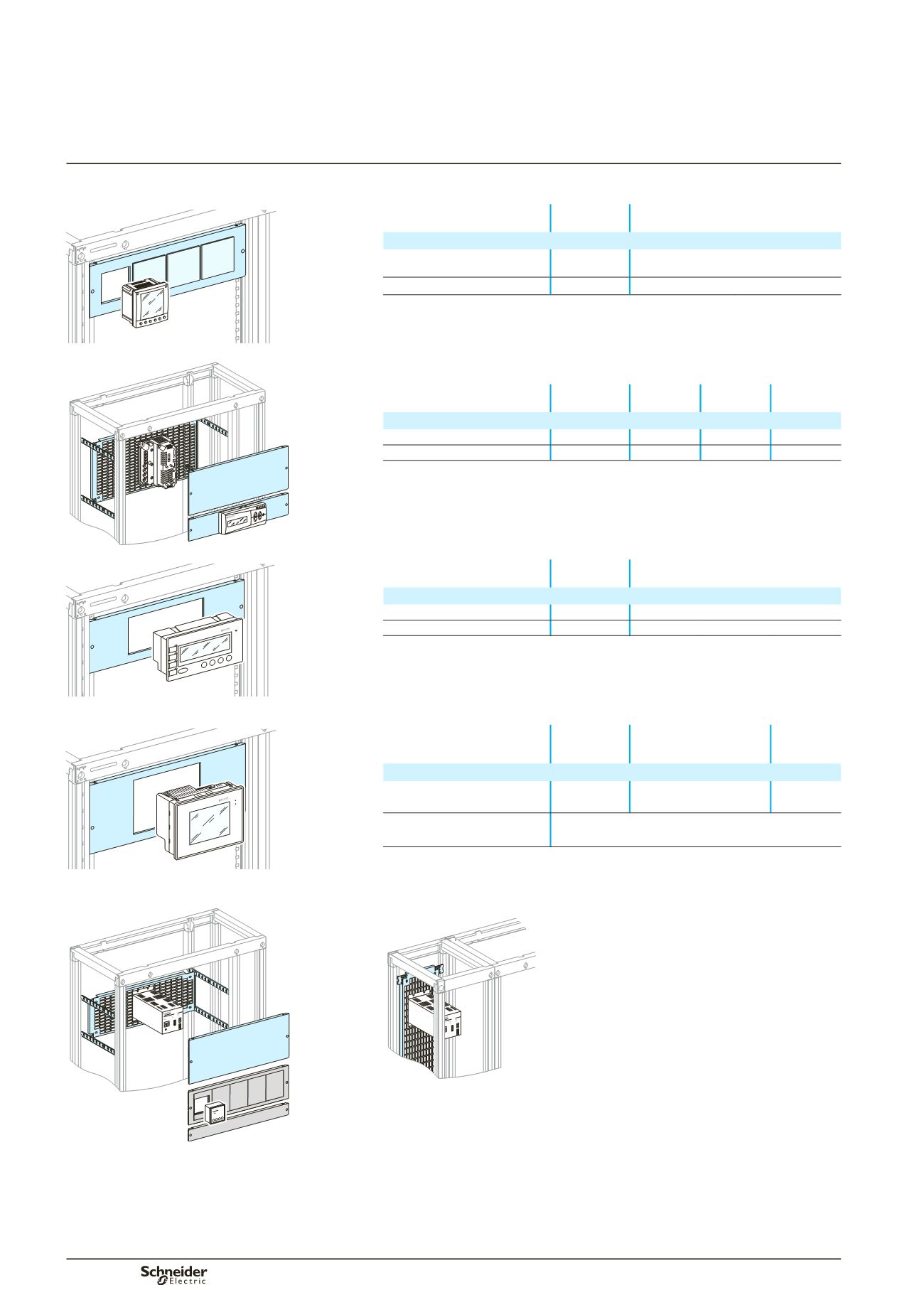

Functional units
Powerlogic system
DD383019
Device
No. of vertical
modules
Cut-out front plate
PowerMeter PM
Power Meter PM400/500/800
(96 x 96 mm case)
3
03911
FDM121
3
03911
DD381716
Installation
in the device compartment.
Device
No. of vertical
modules
Mounting
plate
Cut-out front
plate
Plain front
plate
Circuit Monitor CM
Circuit Monitor CM3000
4
03571
03918
03804
Circuit Monitor CM4000
6
03572
03918
03806
Installation
in the device compartment.
DD381694
Device
No. of vertical
modules
Cut-out front
plate
DMB300/400
DMB300
3
03916
DMC300/400
4
03917
Installation
in the device compartment.
03916.
DD381717
Device
No. of vertical
modules
Slotted mounting
plate
Plain front
plate
Digipact
DC150 data concentrator + SC150
indication and control module
4
03571
03804
CLS150, UM100, M100
(72 x 72 mm cases)
see page A-68
Installation
in the device compartment or the connection compartment.
03917.
DD384028
DD380858
Data concentrator in a 300 mm wide compartment.
m
1
ii
t DM30
?
P
U
I
eect
1
2
3
4
ii
t DMC00
Human-switchboard interface
