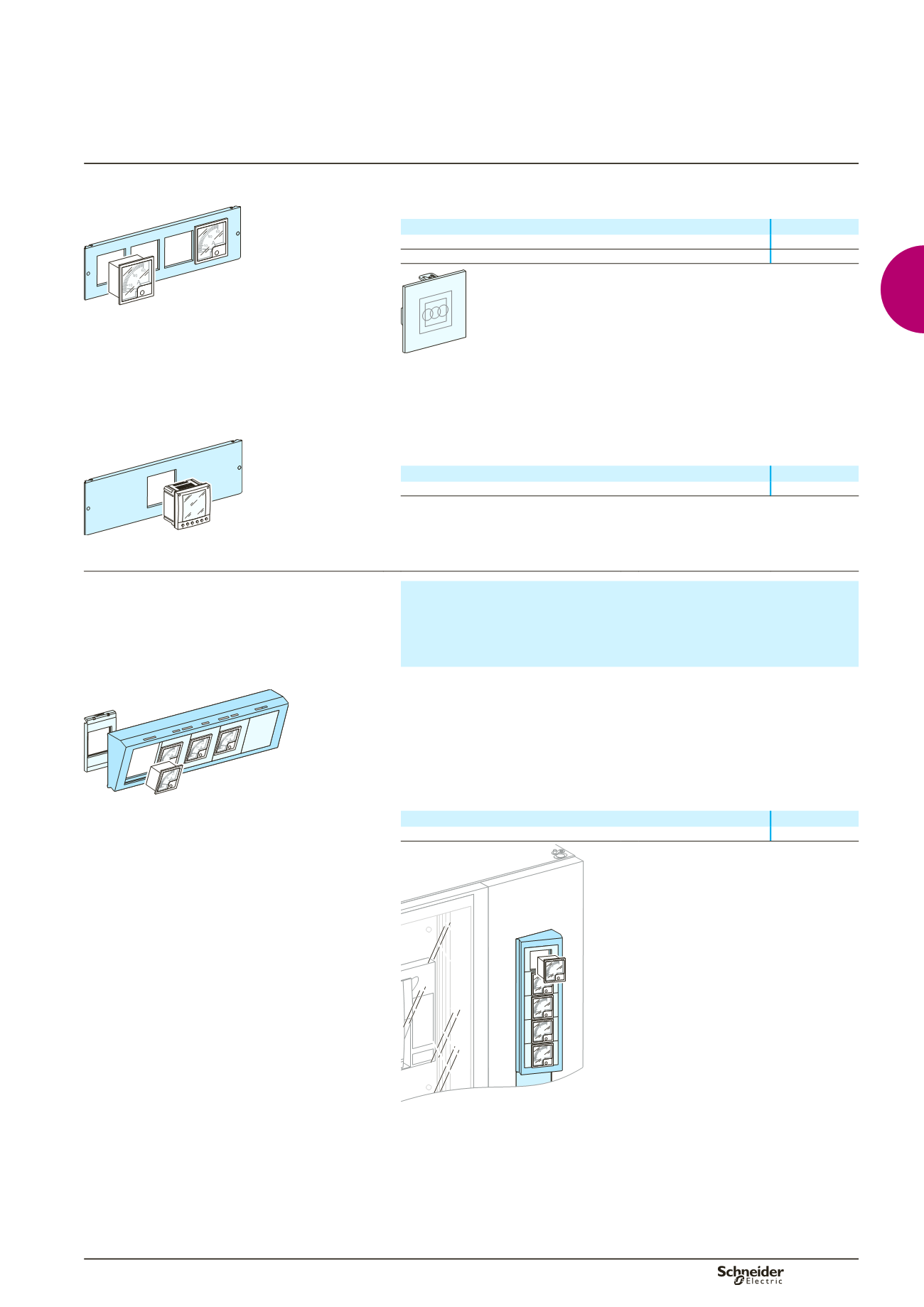

A-71
Functional units
96 x 96 mmmeasurement devices
On a metal front plate with cut-outs
Cat. no. selection
DD381711
Designation
Cat. no.
Metal front plate with cut-outs, 3 modules (for four 96 x 96 mm devices)
03911
Blanking plate (for 96 x 96 mm hole)
03908
DD382634
The blanking plates have knock-outs:
3 holes, 22 mm diameter
1 hole, 45 x 45 mm
1 hole, 72 x 72 mm
b
b
b
DD383662
On a metal front plate with cut-outs
Cat. no. selection
Designation
Cat. no.
Metal front plate with cut-outs, 3 modules (for one 96 x 96 device)
03913
Visor for measurement devices
on an interface with
plastic mounting plates
The human-switchboard interface mounting plates have been modified to ensure
compatibility with the new front plates (catalogue numbers unchanged). The visor
has also been changed to ensure compatibility with the new mounting plates.
The old human-switchboard interface mounting plates and visor are not
compatible with the new front plates.
DD382636
Presentation
A visor can be used to incline 72 x 72 or 96 x 96 mm devices by 30°.
The devices are mounted on a cut-out plastic mounting plate (see previous page)
that clips directly to the visor.
The visor can be installed on 300 and 400 mm wide doors with cut-outs in cubicles
or on partial doors with cut-outs, in wall-mount and floor-standing enclosures.
It is supplied with a drilling diagram for mounting on a plain door.
Cat. no. selection
Designation
Cat. no.
Visor
03928
DD380862
A
60
40
1
A
60
40
10
A
60
40
1
A
4
10
A
60
40
10
Human-switchboard interface
72 x 72 and 96 x 96 mm devices
Others
