Functional units

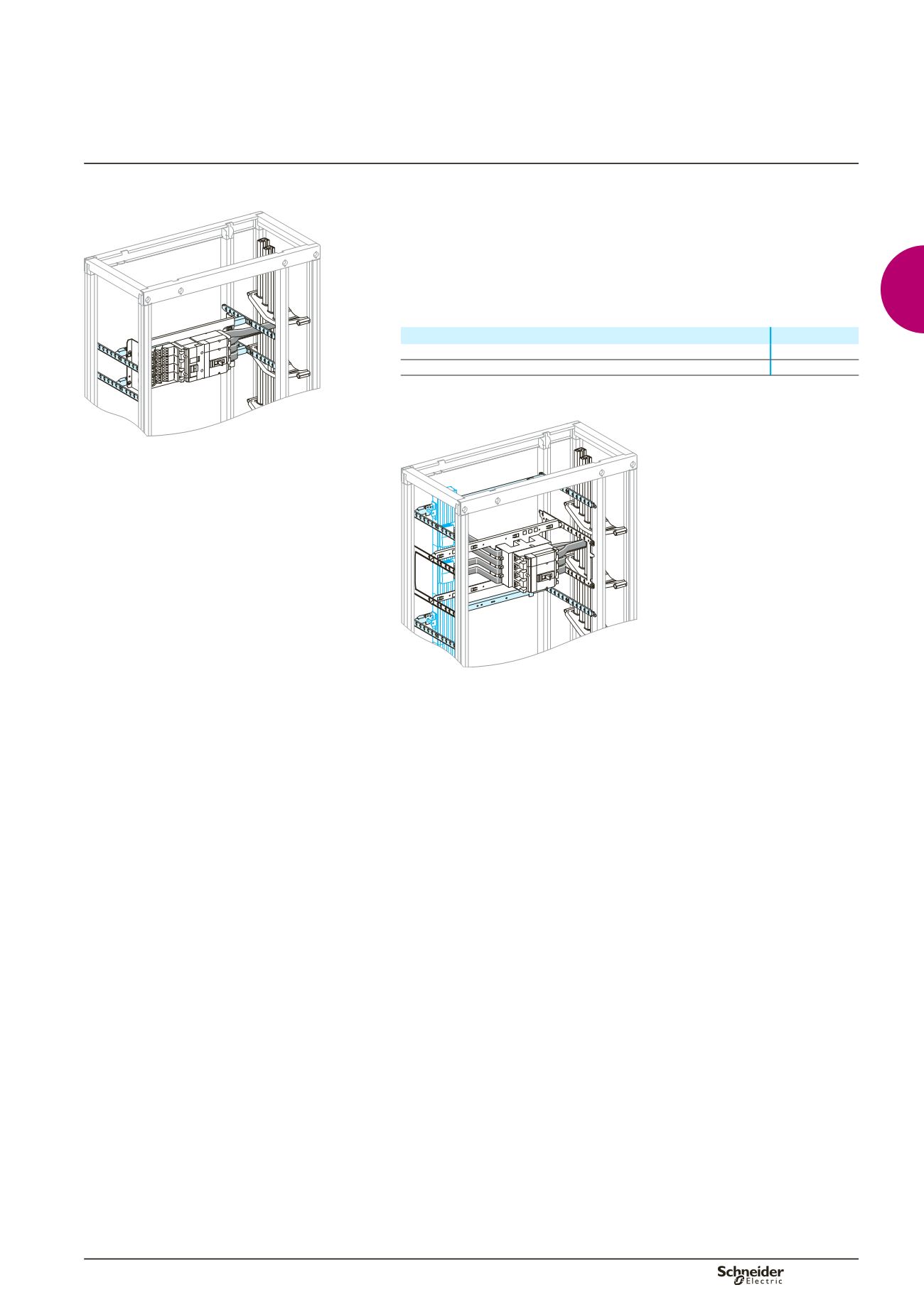

System G adapter
Kit with four lateral and two longitudinal cross-members that can be depth adjusted.
It is used to install System G components, notably the functional mounting plates, the
Powerclip insulated busbars and the 400 A rear busbars.
It is the means to enhance the flex bility of the Prisma Plus system.
It is available in two widths:
500 mm wide (for installation in a device compartment L = 650 mm)
250 mm wide (for installation in a device compartment L = 400 mm).
Cat. no. selection
b
b
DD381603
Designation
Cat. no.
System G adapter, W= 500
03595
System G adapter, W= 250
03596
Note:
the adapter 03595 can be used for all mounting plates, except 03030.
Dd383591
NSX250 circuit breaker installed with a Polybloc distribution
block.
The Powerclip busbars can be positioned to the left, middle or right of the modular row.
Depth adjustable, the busbars can be supplied by an Interpact INS switch-disconnector or a fixed/
withdrawable Compact NSX circuit breaker, whatever the type of operating system (toggle,
rotary handle, motor mechanism).
For Powerclip busbars, order two adapters (03595 x 2).
